EASY-MOVE MKIV X-LIGHT
Ultra-light handling system with new single-flap suction cups, over 16% lighter than the previous double-cup version.
Ideal for smooth surfaces, featuring Ø115 mm stain-resistant rubber and movable die-cast aluminum suction cups.
Fully adjustable frame with sliding profiles, tilting suction groups, and optional telescopic crosspieces for any slab layout.
Supports slab lengths up to 320 cm, with multiple configurations for plates and narrow slats.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920

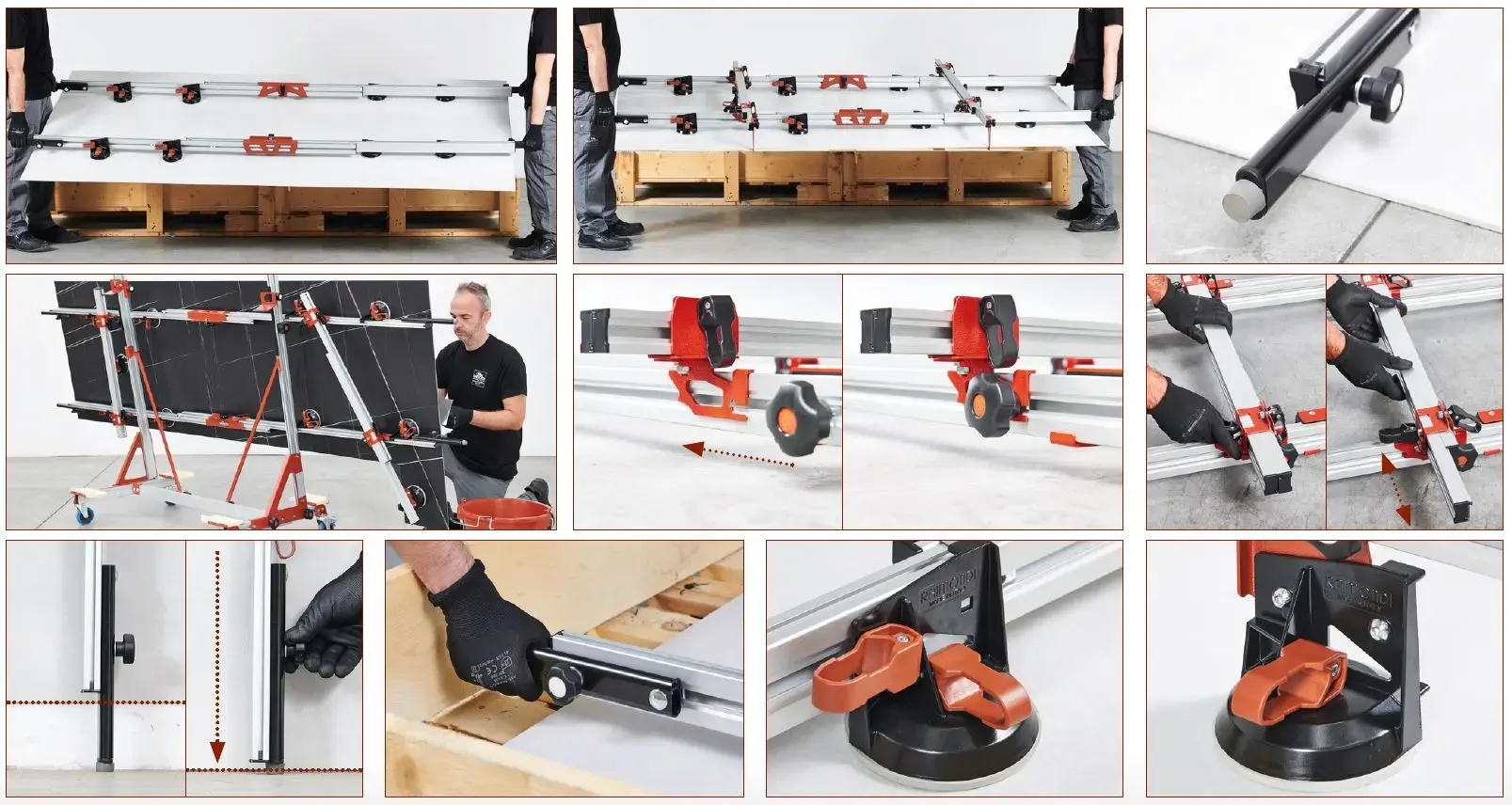

Version equipped with single-flap suction cups for extra lightness (over 16% weight reduction vs previous double-cup version).
Suction cups designed for smooth surfaces.
Stain-resistant rubber flaps.
Suction cup flap diameter: Ø115 mm.
Suction cup body made of die-cast aluminum for maximum rigidity and low weight.
All suction cups are fully movable along the profiles for flexible positioning.

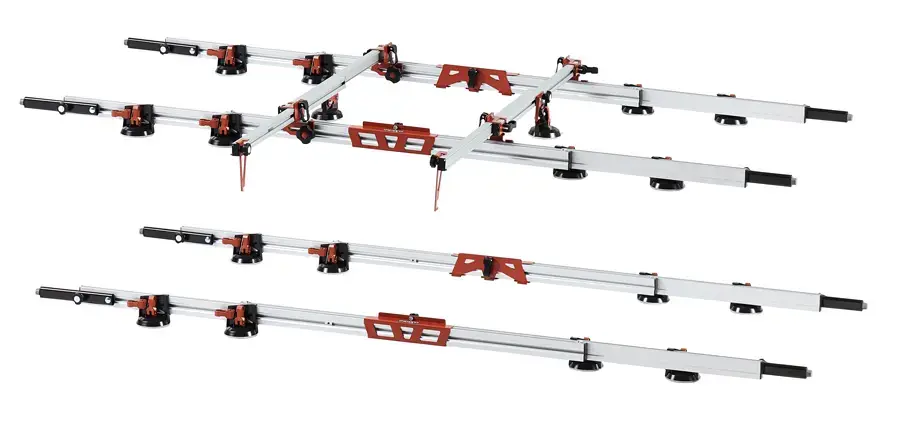

Optional version includes two telescopic crosspieces, adjustable from 90–160 cm, ideal for slab widths of any size.
Crosspieces tilt freely to adapt to complex slab shapes.
Each crosspiece includes a suction cup that slides across its full length and can be positioned inside or outside the main frame.
Extremely fluid sliding of every element for fast and effortless frame configuration.
Tilting suction cup groups adapt to slab bending and ensure secure grip in all conditions.
Equipped with 4 sliding handles with non-slip, stain-resistant rubber for ergonomic lifting and optimal installation.
Maximum slab length: 320 cm.
Minimum slab lengths based on configuration:
120 cm (with crosspieces, 10 suction cups engaged)
100 cm (without crosspieces, 8 suction cups engaged)
55 cm (4 suction cups engaged)
Minimum slat width: 20 cm in single configuration (4 suction cups).
Available with or without crosspieces (10 suction cups total).
Accessories available:
Pair of crosspieces
Additional suction cups for crosspieces
Kit of 4 double handles for 4-operator handling
Includes use and maintenance manual.
