Insulation fixing pin with driven metal pin KTM ø10x160mm STALCO KTM10x160
FEATURES:
- Durable polypropylene copolymer sleeve provides stability and long-term durability
- Steel pin ensures secure fastening and reliable expansion inside the sleeve
- Polyamide-coated pin tip facilitates installation and helps reduce thermal bridging
- Wide collar distributes the load of the insulation without damaging its surface
- Available in multiple sizes, suitable for insulation thicknesses up to 260 mm
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
PRODUCT DESCRIPTION:

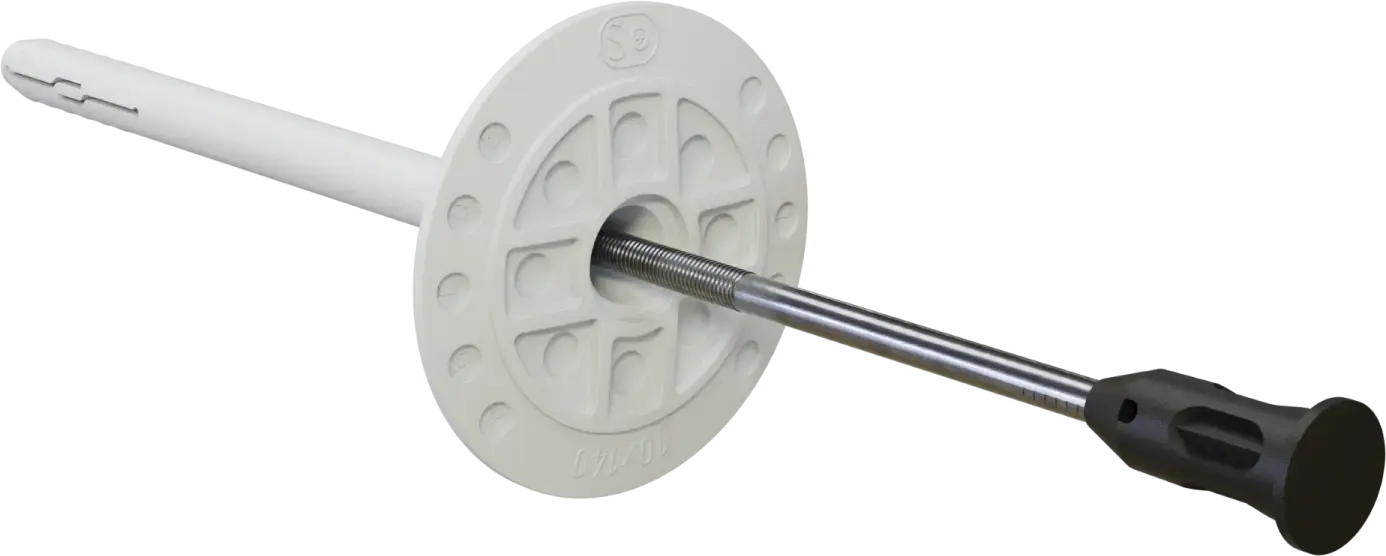

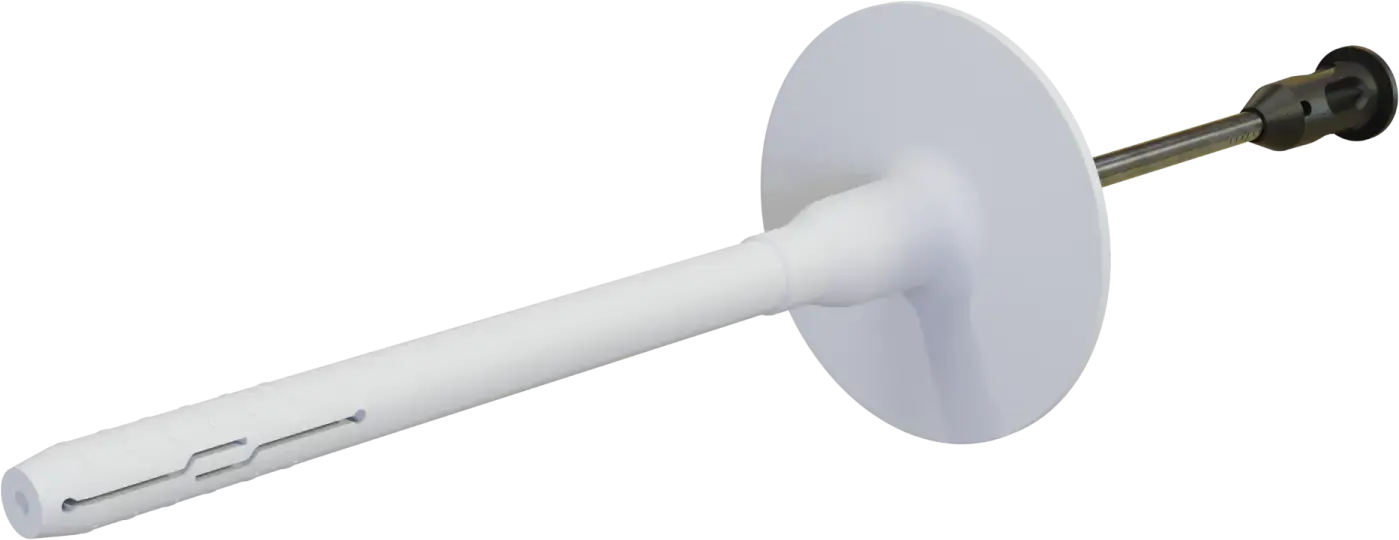

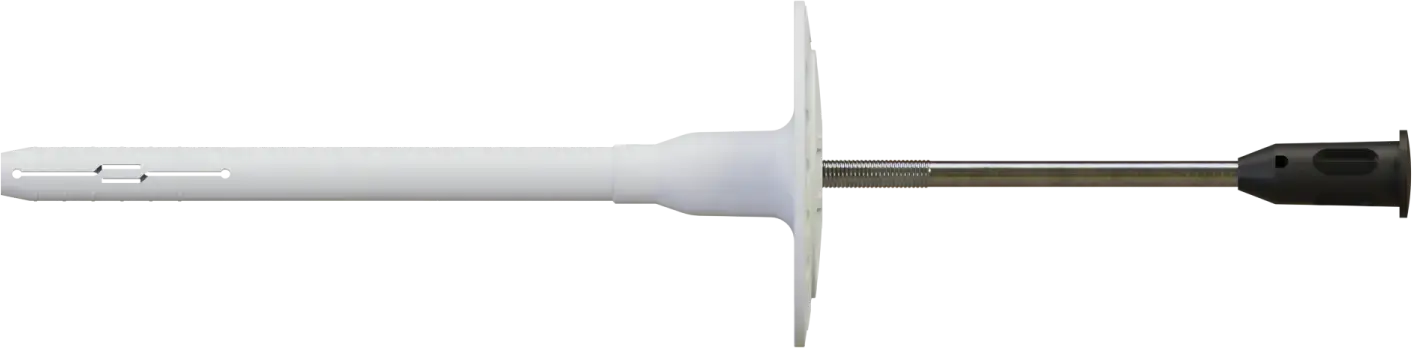

The KTM insulation mounting plug is designed for the mechanical fastening of thermal insulation materials using a hammer-in metal pin. The plug is manufactured from high-quality polypropylene copolymer, while the steel pin is electro-galvanized for corrosion protection. The pin head is additionally coated with glass-fiber-reinforced polyamide, helping to improve thermal insulation and reduce thermal bridging through the insulation layer.
The KTM plug is suitable for fastening polystyrene boards, mineral wool, and other insulation boards. It is available in diameters of 8 and 10 mm, with lengths ranging from 95 to 360 mm, providing options for different insulation thicknesses.
FEATURES:
- Durable polypropylene copolymer sleeve provides stability and long-term durability
- Steel pin ensures secure fastening and reliable expansion inside the sleeve
- Glass-fiber-reinforced polyamide coating on the pin head facilitates installation and helps reduce thermal bridging
- Wide collar distributes the insulation load evenly without damaging its surface
- Available in multiple sizes for various insulation thicknesses, up to 260 mm
PRODUCT MATERIAL:
High-quality polypropylene copolymer sleeve and electro-galvanized steel expansion pin with a glass-fiber-reinforced polyamide coating on the head to help reduce thermal bridging.
APPLICATION:

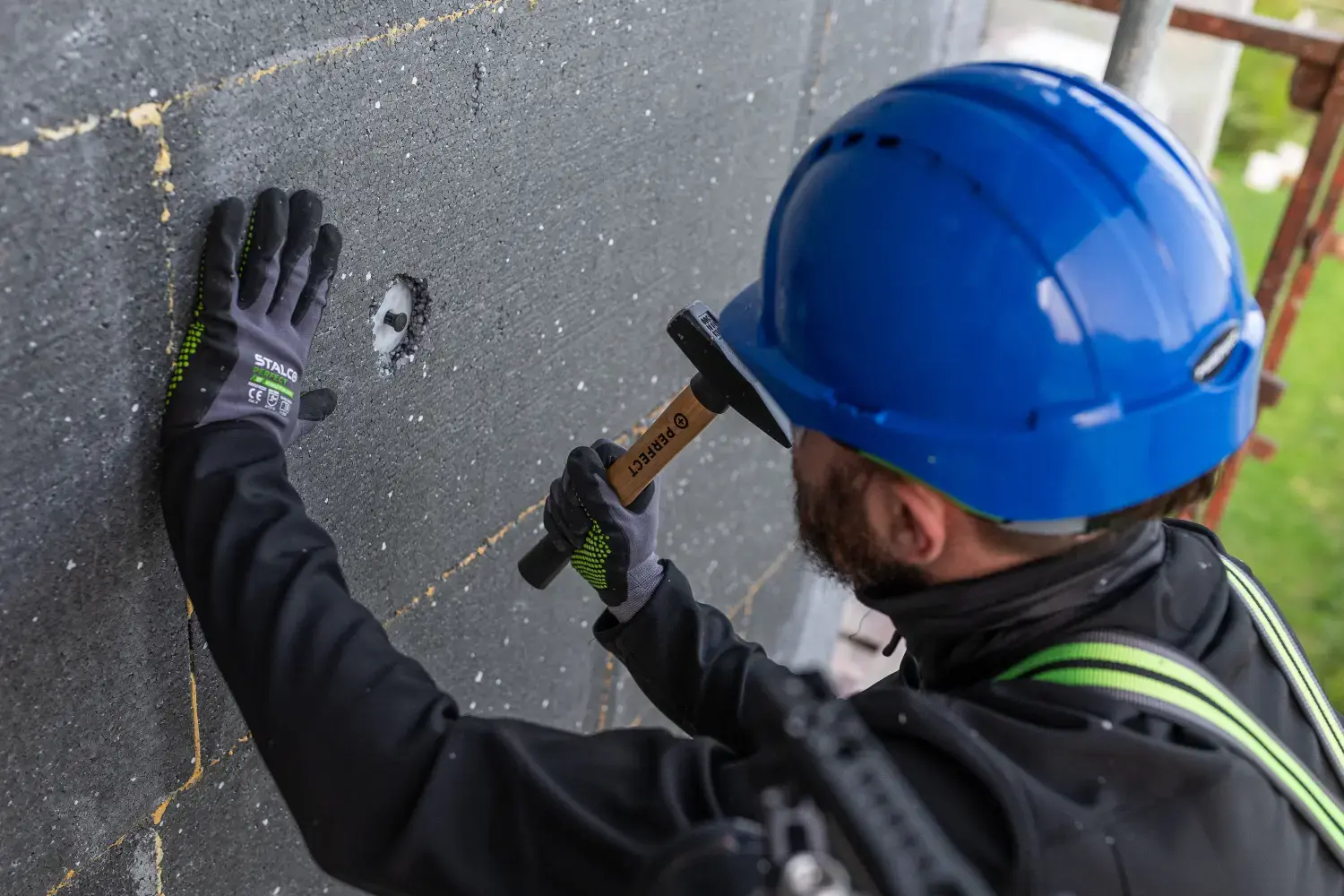

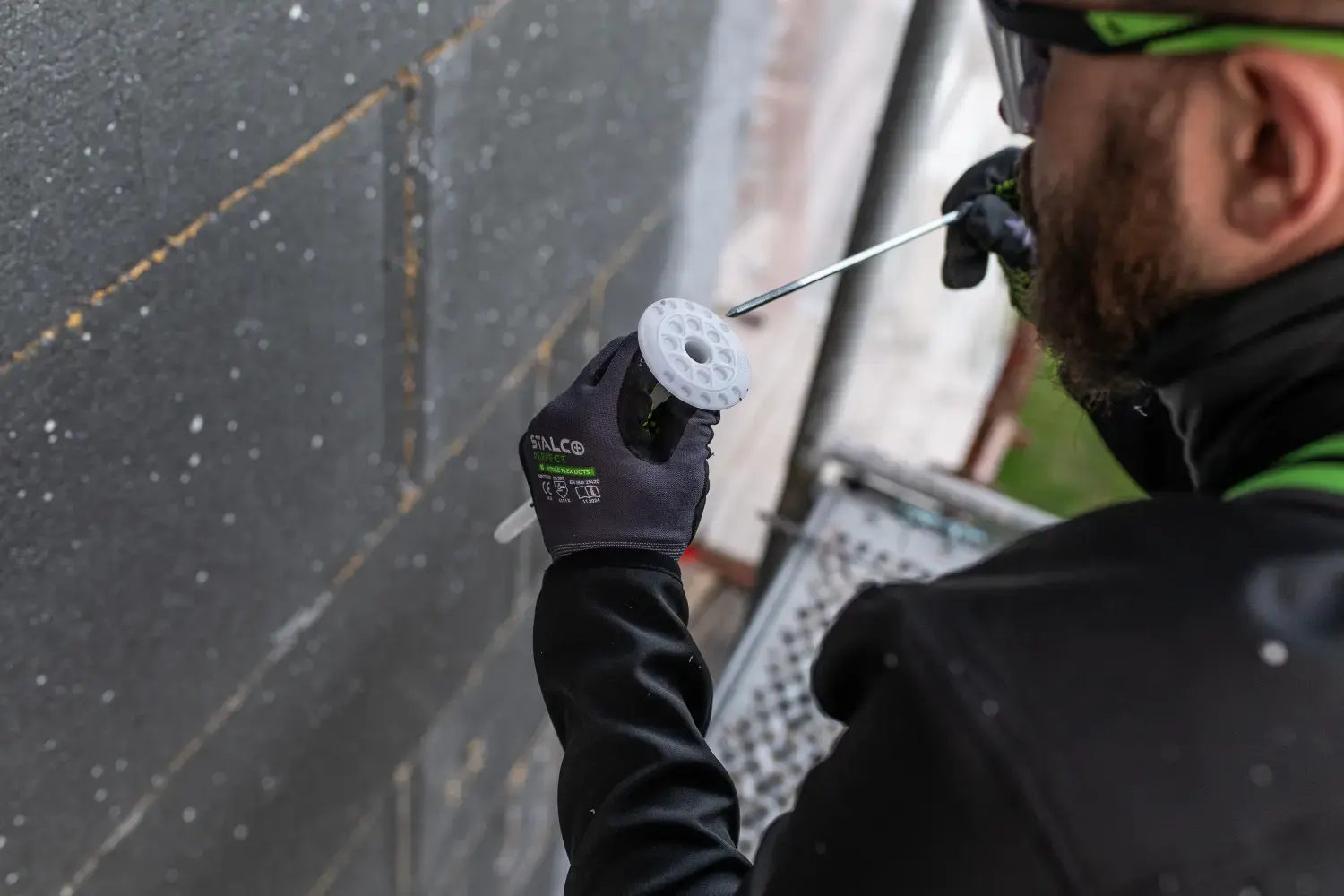

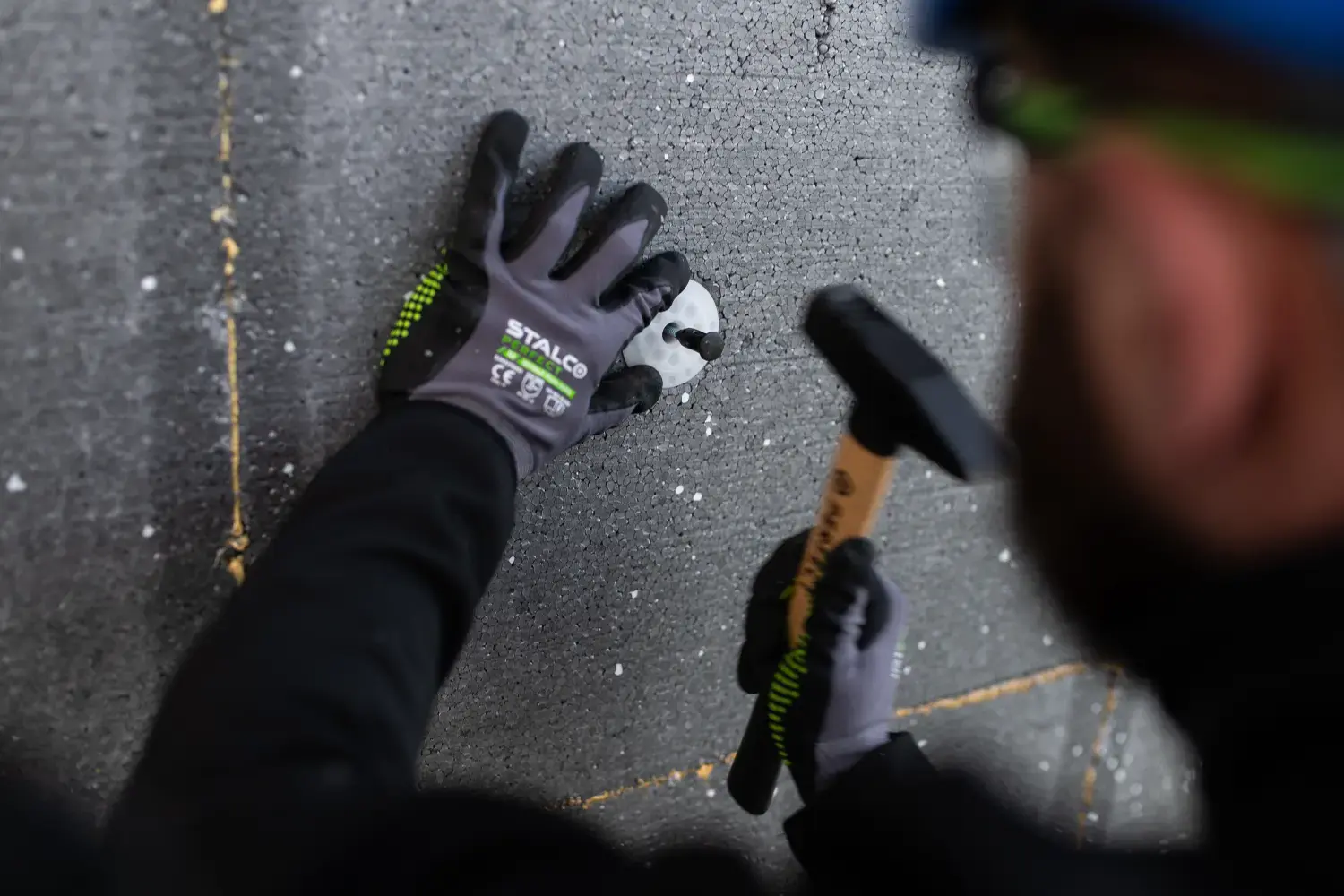

Designed for fastening thermal insulation materials to building substrates such as standard C20/C25 concrete, Class 15 solid ceramic brick, Class 15 perforated ceramic block, and aerated concrete.
Suitable for installing polystyrene boards, mineral wool, and other insulation boards used in facade insulation systems.
TECHNICAL DATA:
Diameter: Ø10 × 160 mm.
