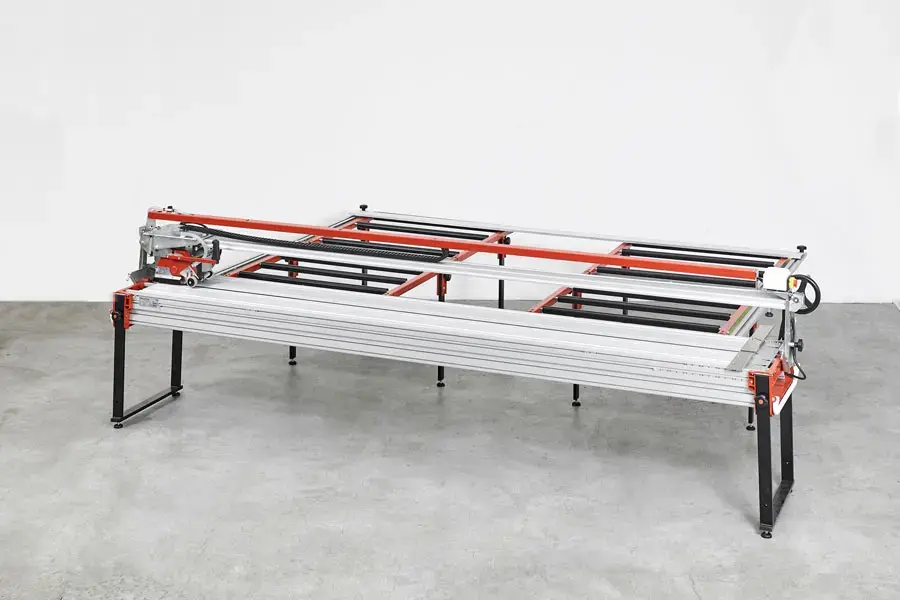

LAB 270
Professional machine for straight and 45° mitre cutting of ceramic, porcelain, granite, and marble slabs.
Supports cutting lengths up to 260 cm with adjustable depth and high precision.
Robust aluminum/steel structure with efficient water-cooling and 300 kg load capacity.
Available in 230V and 400V, includes porcelain blade, double side bench, and counter-square.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Designed for straight and 45° mitre cutting of ceramic, porcelain stoneware, granite, and marble.
Maximum cutting length: 260 cm (+10 cm entry).

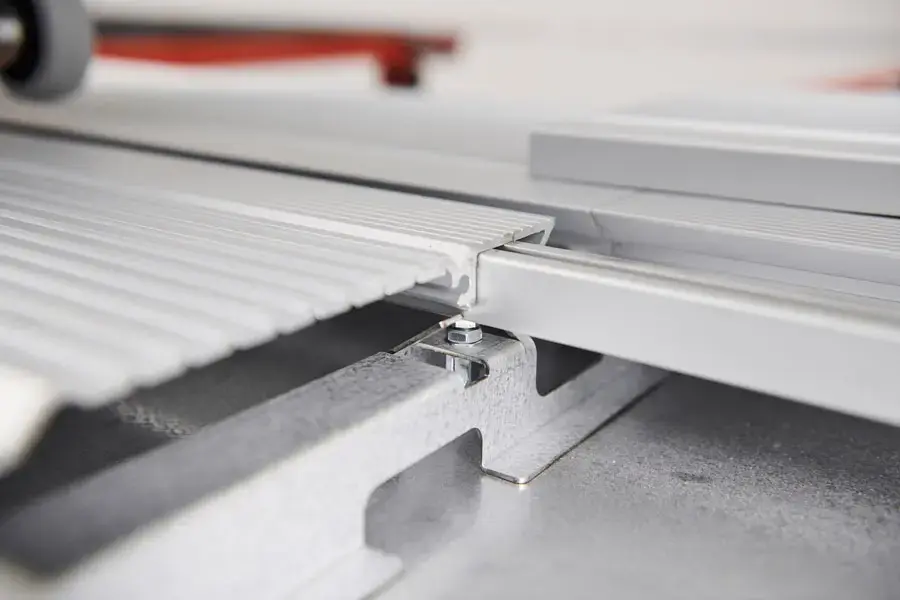

Extruded aluminum countercut (260 cm) for slab widths 0–1610 mm, expandable to 330 cm with accessory (Art. 374BRU 2F2).

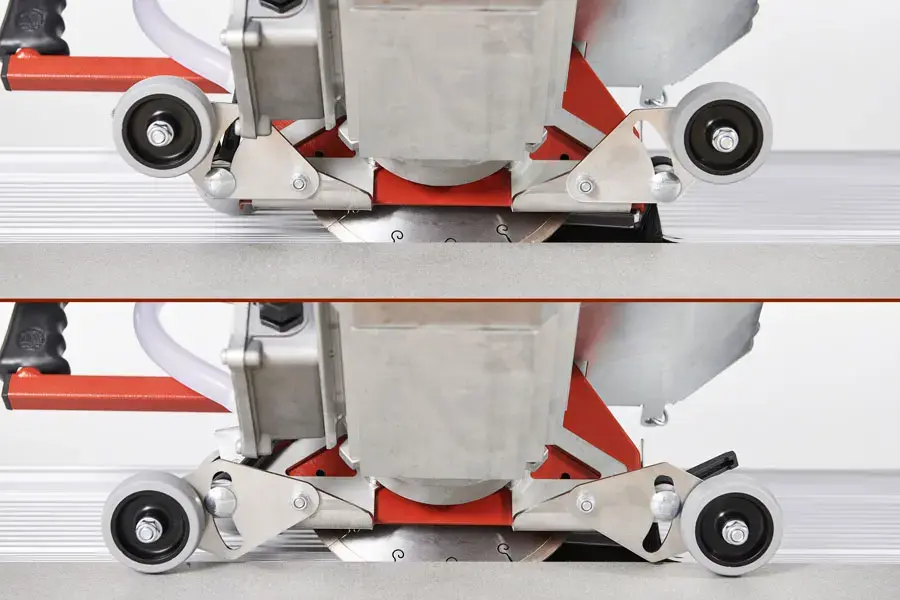

Max cutting thickness: 20 mm (90°), 20 mm (45°) in one pass.

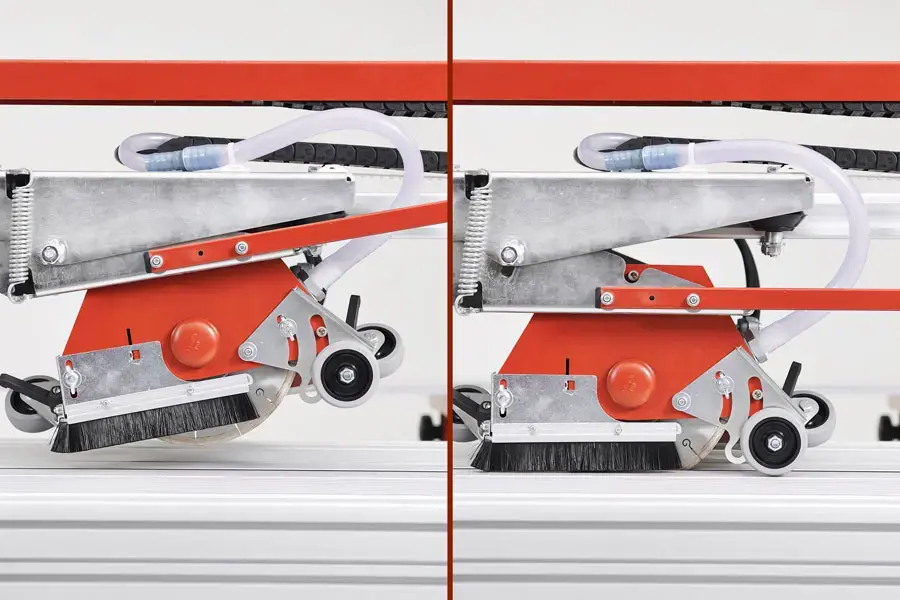

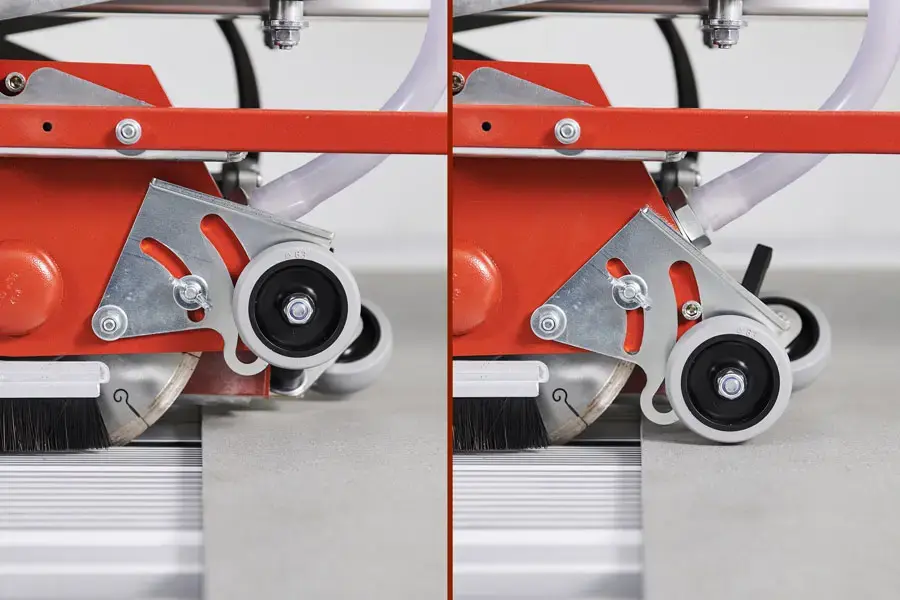

Adjustable cutting depth for precise control.
Available in 400V three-phase and 230V single-phase (both 2.2 kW).

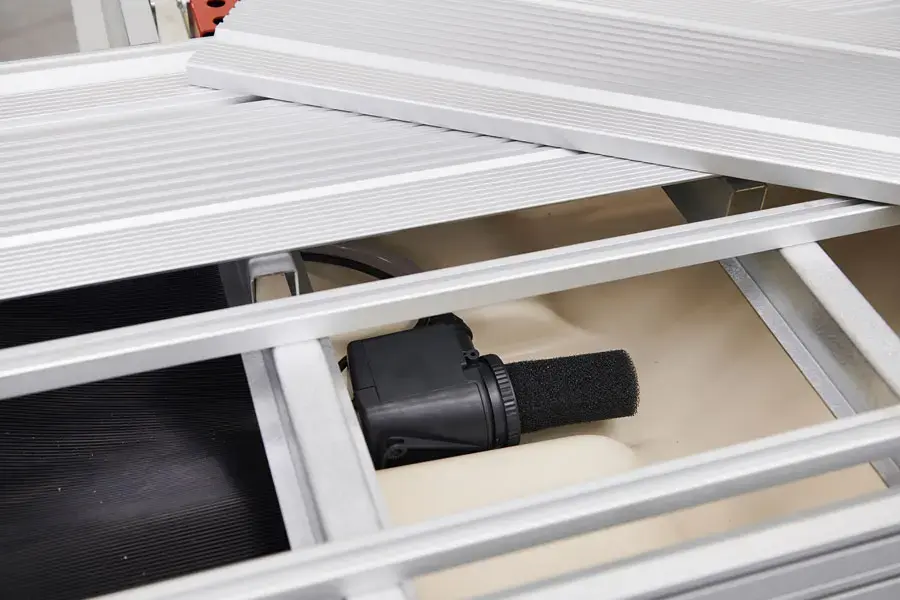

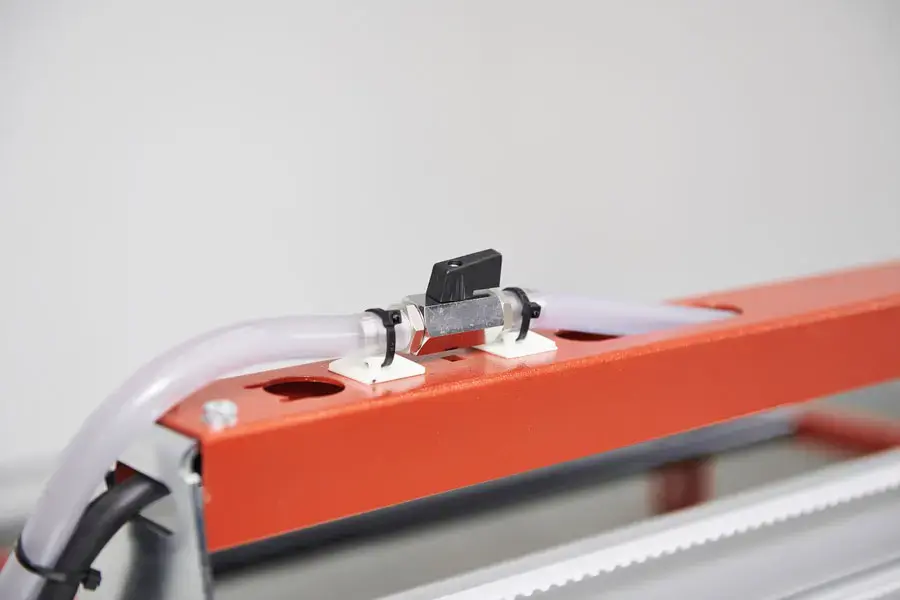

Internal water jet cooling inside crankcase for optimal disc temperature.
Construction: die-cast aluminum, extruded aluminum, galvanized steel.

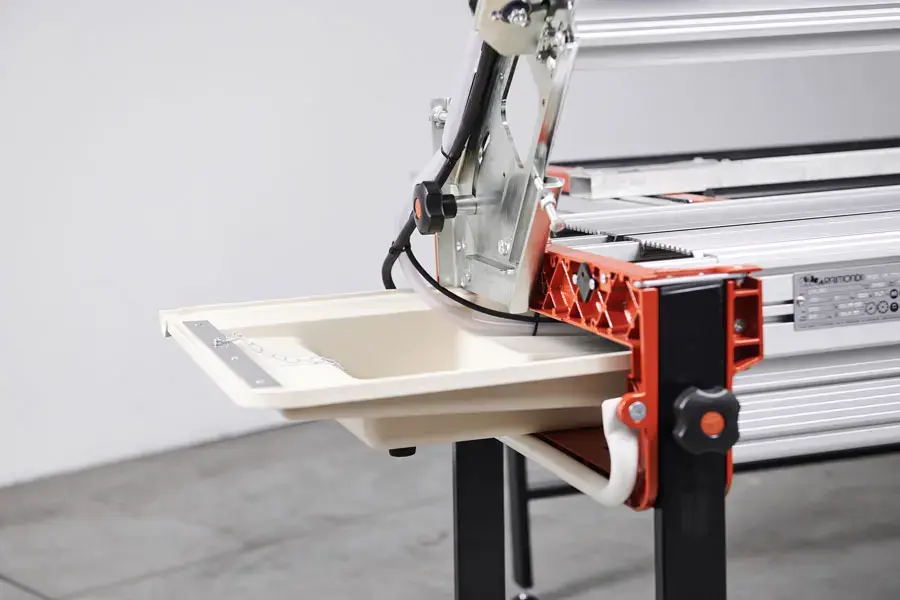

Polypropylene removable tub; capacity 38 L for easy cleaning.
Maximum load capacity: 300 kg.

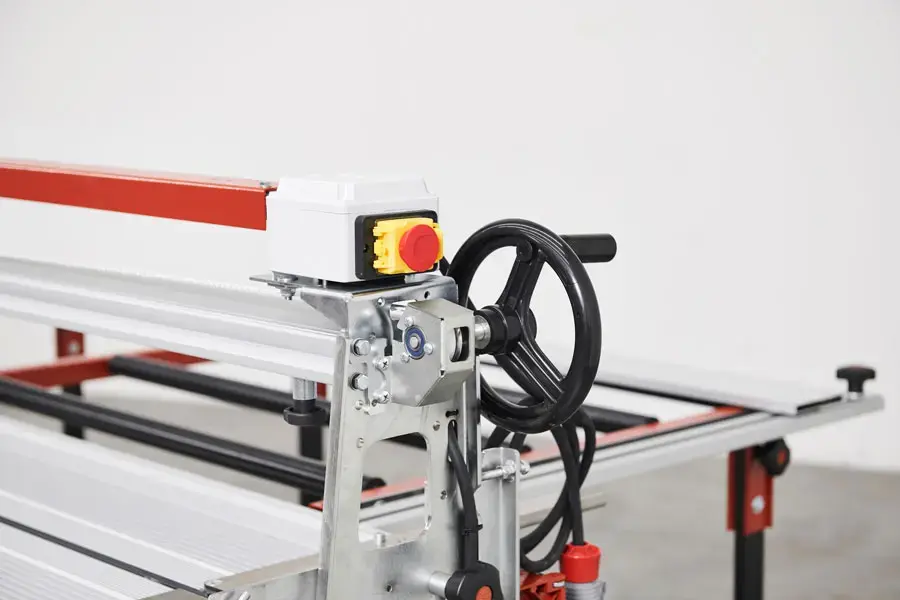

Smooth handwheel feed system.
Recommended working space:
5.5 × 4.5 m (standard configuration)
5.5 × 6 m (with side bench extension kit Art. 374BRU 2F2)
Includes:
Ø200 mm porcelain disc
Handwheel feed system
Double side bench with counter-square
Key kit
User & maintenance manual
Optional accessories:

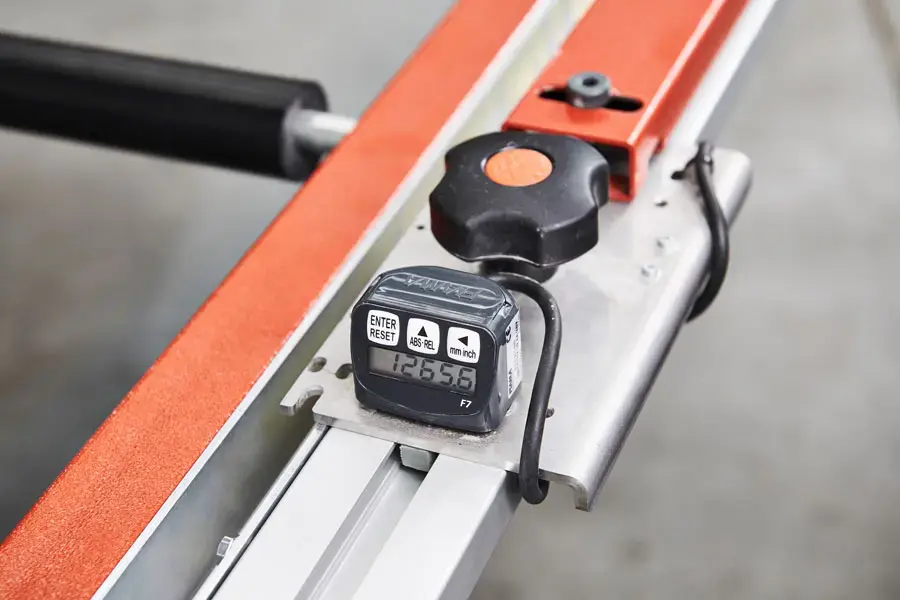

Digital cutting width displays for countercut (Art. 374VISVESTD up to 161 cm, Art. 374VISVEMAXI up to 330 cm)
Pair of additional side tables (Art. 374BRU 2F2) increasing cutting width to 330 cm
