RAIZOR MkII: cutting system for large format plates
RAIZOR MkII is a lightweight, highly rigid cutting system for large-format slabs up to 330 cm (extendable to 450 cm).
Includes die-cast scoring unit, TiAlN-coated Ø22 mm wheel, double-lip suction-cup guides, and SNAP pliers for 3–12 mm tiles.
Engineered with +28% structural rigidity and excellent precision, even on thick or textured slabs.
Comes in a padded transport bag and is compatible with optional extensions and POWER-RAIZOR MkII cutting unit.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Art. 433CP00AR — RAIZOR MkII Cutting System.
Professional cutting system for slab lengths up to 330 cm, extendable to 450 cm with optional extension (Art. 433CP00P100).
New design: 28% more rigid and lighter than the previous version.
Easy to transport — all components stored in a padded shoulder bag with tool pocket.

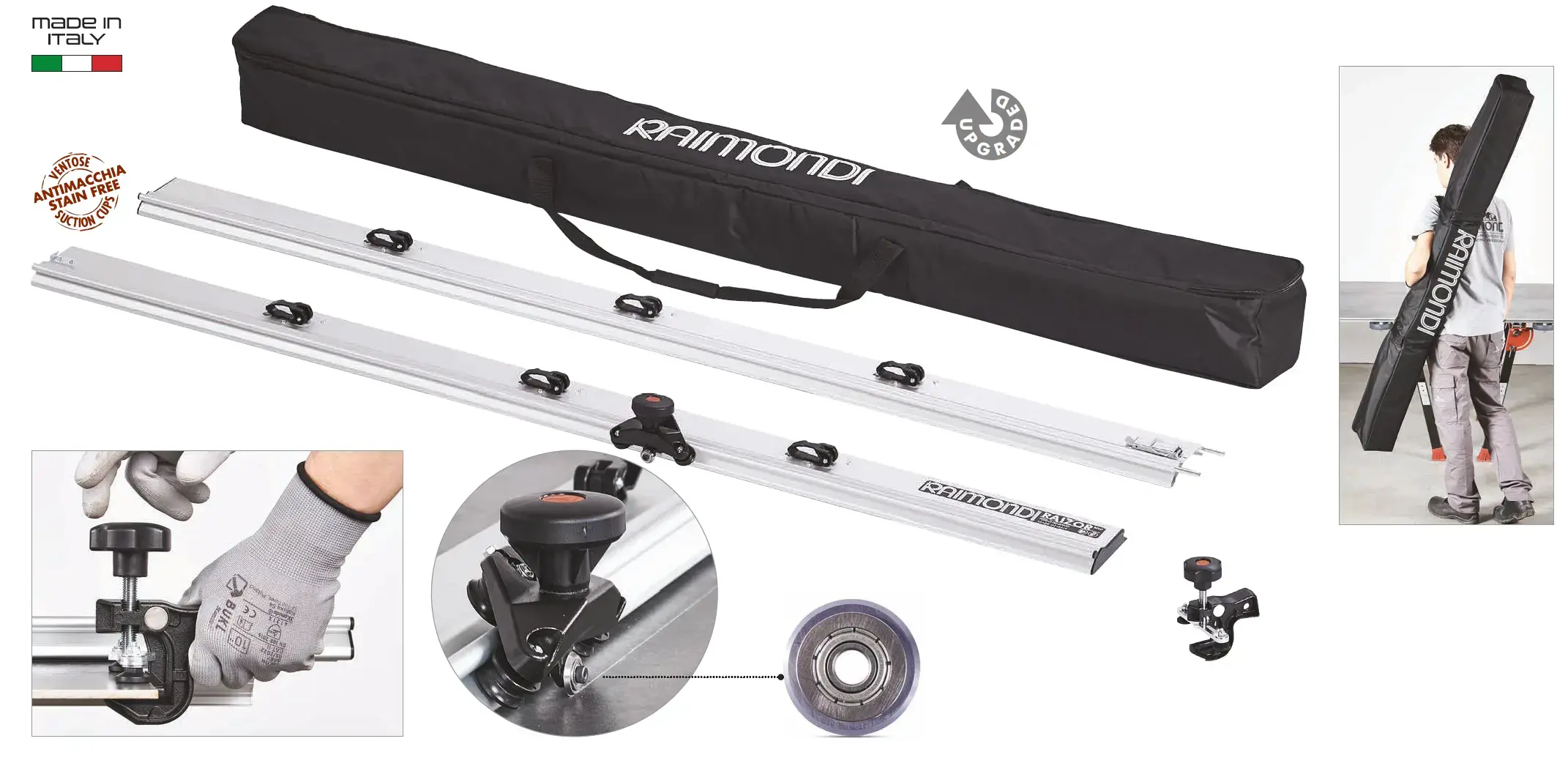

Included in the RAIZOR MkII Set
SNAP cutting pliers for 3–12 mm tiles (Art. 169TB RAI).
Die-cast aluminium scoring unit with tilting scoring mechanism and single-rail sliding.
Ø22 mm TiAlN-coated scoring wheel with integrated bearing.
Two connectable guides (160 cm each) with:
3 double-lip suction cups per guide (Ø95 mm)
Release tabs
Total of 6 suction cups
Combined guide length: 330 cm
Performance Features
Scoring unit slides on three resin wheels, each with a high-performance bearing.
Transfers full operator pressure directly onto the slab — zero mechanical loss.
TiAlN-coated wheel ensures:
Extremely high wear resistance
Smooth, precise scoring
Long service life
Fast replacement
Aluminum extrusions engineered for maximum structural rigidity at very low weight.
Suction cups ensure perfect guide stability and prevent tipping regardless of pressure or tile thickness.
Suction handles rotate 180° to avoid interference during scoring.
Distance between scoring line and profile: 20 mm for quick measurement.
Replacement of stuck suction cups via integrated release tabs.
Padded Carry Bag
Protects the entire system
Includes shoulder straps
Internal pocket for tools/personal items
Optional Accessories

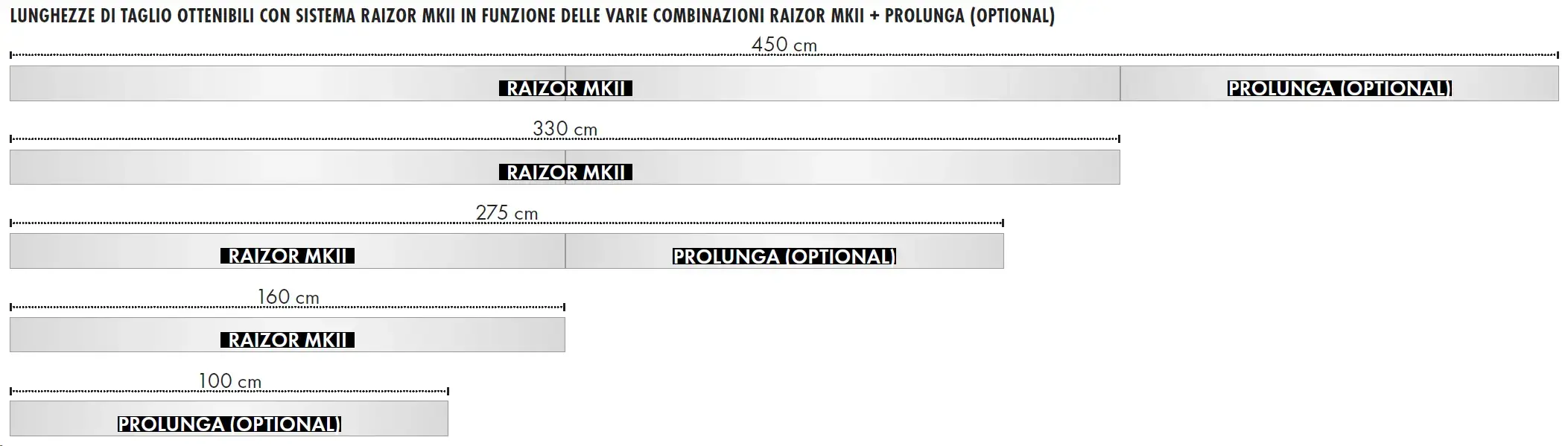

Extension 100 cm (Art. 433CP00P100):
Max cutting length: 451 cm
Or 276 cm using 1 guide + extension
Can be used alone (cutting length: 100 cm)
POWER-RAIZOR MkII unit for diamond-blade cuts from 45° to 90°.
Pliers for >12 mm tiles (Art. 169TM01AN): galvanized steel, progressive pressure knob.
