RAIZOR PLUS: cutting system for large format slabs

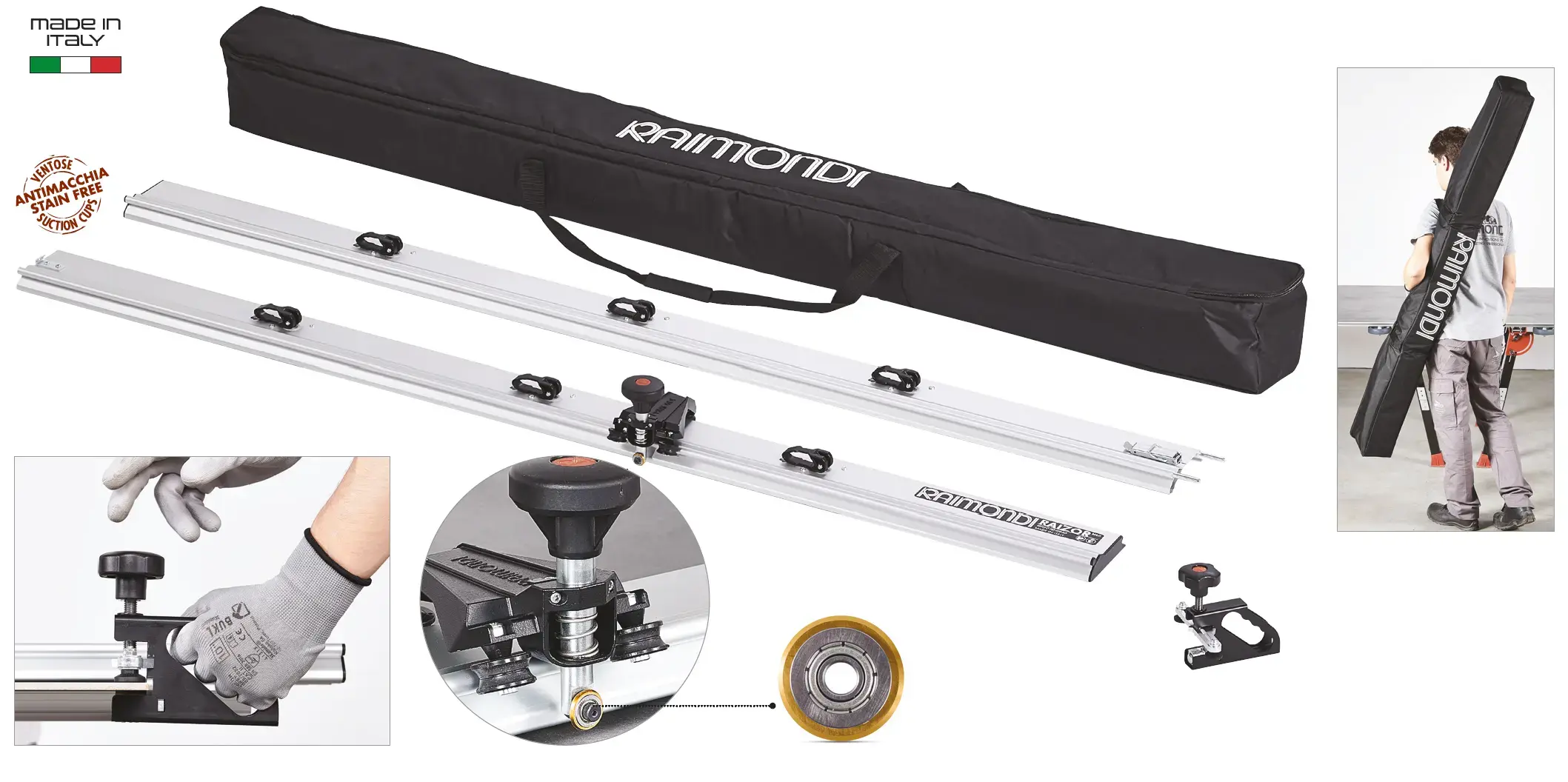

RAIZOR PLUS is a professional cutting system for large-format slabs up to 330 cm (extendable to 450 cm).
Includes premium scoring unit, titanium-coated wheel, suction-cup guides, and cutting pliers for 3–15 mm tiles.
Extremely rigid yet lightweight aluminum structure ensures precise, smooth, and stable cuts.
Supplied in a padded transport bag and compatible with optional extensions and POWER-RAIZOR MkII cutting unit.

Availability: Out of stock

Custom Pricing Available
This product requires a custom quote based on your specific requirements.

Free Quote

24h Response

Expert Advice

Your Name *

Email Address *

Phone Number

Quantity Required *

How urgent is this request?

Additional Requirements

Subscribe to our newsletter for updates and special offers

SKU: SF-2443-9VAM

Returns

14-day return policy

Secure Payment

Guarantee secure payments

24/7 Dedicated Support

Anywhere & anytime

Mon - Fri: 08:00 / 16:00

Description Reviews (0)

Art. 433CP00APR — RAIZOR PLUS Cutting System.
Cutting system for large-format slabs up to 330 cm, extendable to 450 cm with optional extension (Art. 433CP00P100).
Highly portable, lightweight, and suitable for both job-site and workshop use.

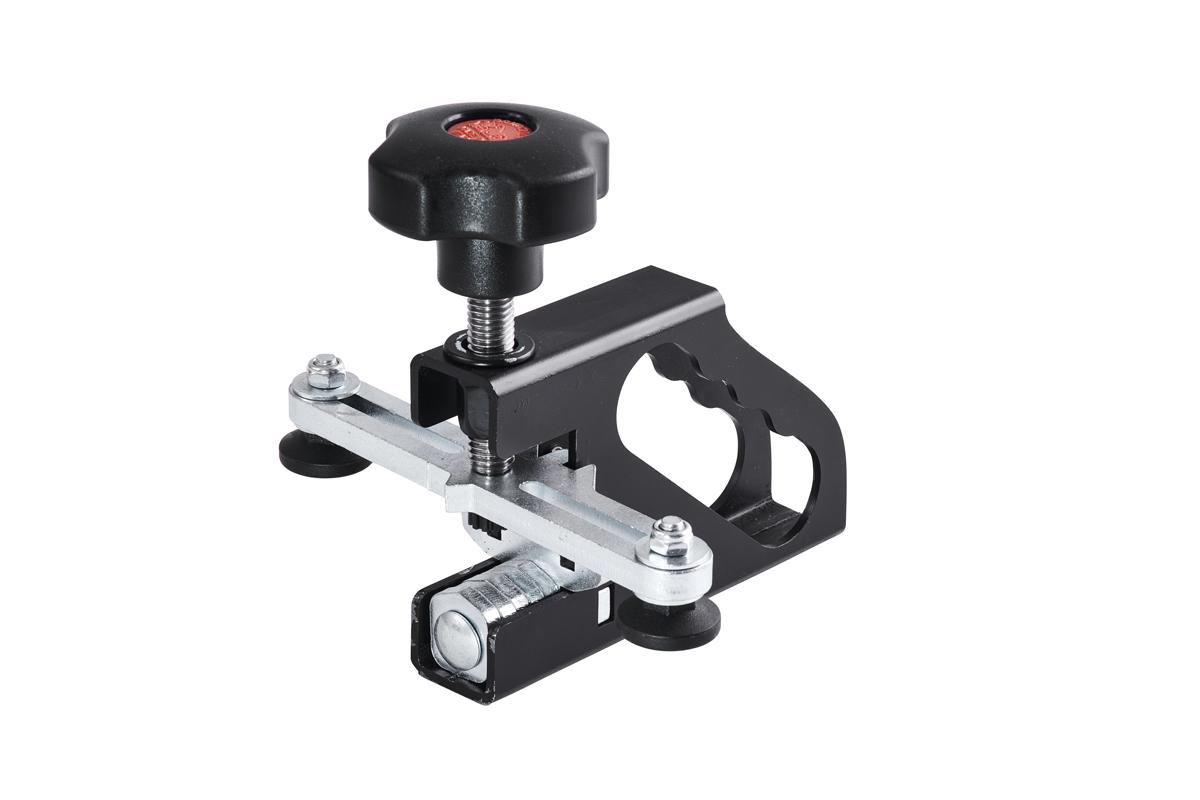

PREMIUM cutting pliers for tiles 3–15 mm thick.
Die-cast aluminum scoring unit with dual-rail sliding and spring-loaded scoring pin.
20 mm titanium-coated engraving wheel with integrated bearing for long life and smooth, precise cuts.
Two connectable guides (each 160 cm cutting capacity) with:
- 3 double-lip suction cups per guide
- (6 suction cups total)
- Combined cutting length: 330 cm
Padded carrying bag with shoulder straps and pocket for tools or personal items.

Scoring unit glides on three high-performance resin wheels, each with two bearings.
Adjustable system ensures perfect parallelism between scoring wheel and guide track—eliminates play for long-term precision.
Titanium-coated wheel provides:
- High wear resistance
- Smooth scoring
- Maximum control
- Fast replacement
Specially engineered aluminum extrusions provide 28% more rigidity than the previous model while remaining lightweight.
Suction cups Ø95 mm with double-lip rubber—ideal even for moderately textured slabs.
Suction cups prevent guide movement during scoring and eliminate tipping, regardless of pressure or tile thickness.
Each suction cup includes an easy-release tab.
Handles rotate 180° to avoid interference with scoring-unit movement.
Distance between scoring line and guide: 20 mm for fast measurement.

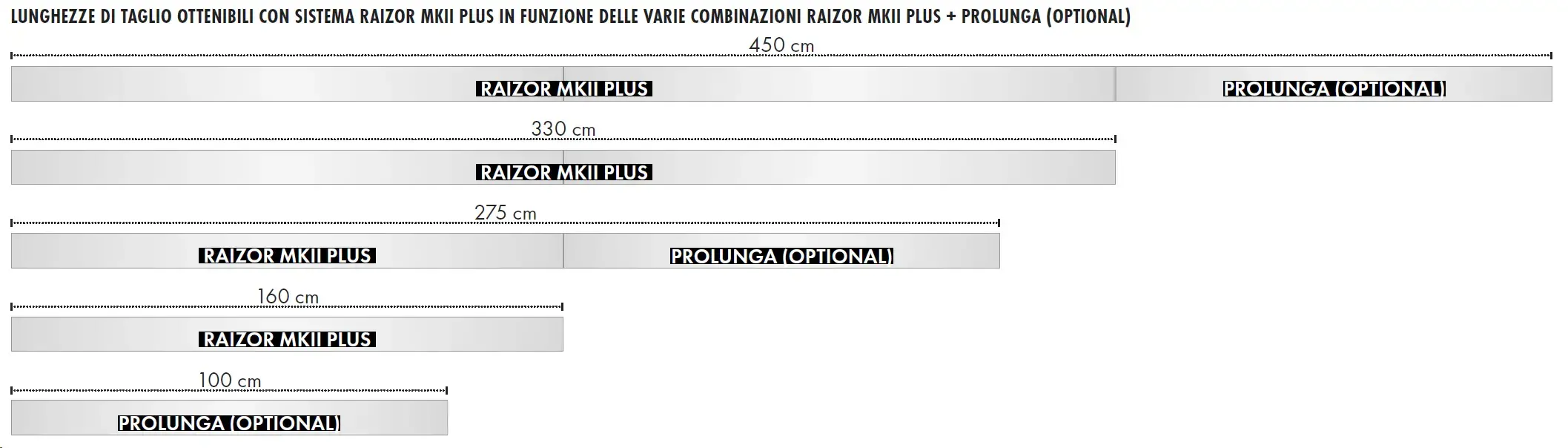

Optional 100 cm extension (Art. 433CP00P100) for:
- Max cutting length: 451 cm
- Or 276 cm using 1 guide + extension
Optional POWER-RAIZOR MkII cutting unit for 45°–90° diamond-blade cuts.
Optional progressive pliers (Art. 169TM01AN) recommended for tiles thicker than 12 mm.
