Beam connector LB 70x60x100mm; 200mm LB STALCO LB070100
- connector made of 4 mm thick steel sheet, protected with hot-dip galvanizing
- provides spacing between the wood and the substrate, allowing air circulation and moisture removal
- the design enables stable and secure attachment of wooden posts used in garden architecture to concrete substrates
- a large number of mounting holes ensures a strong connection with the wood .
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920

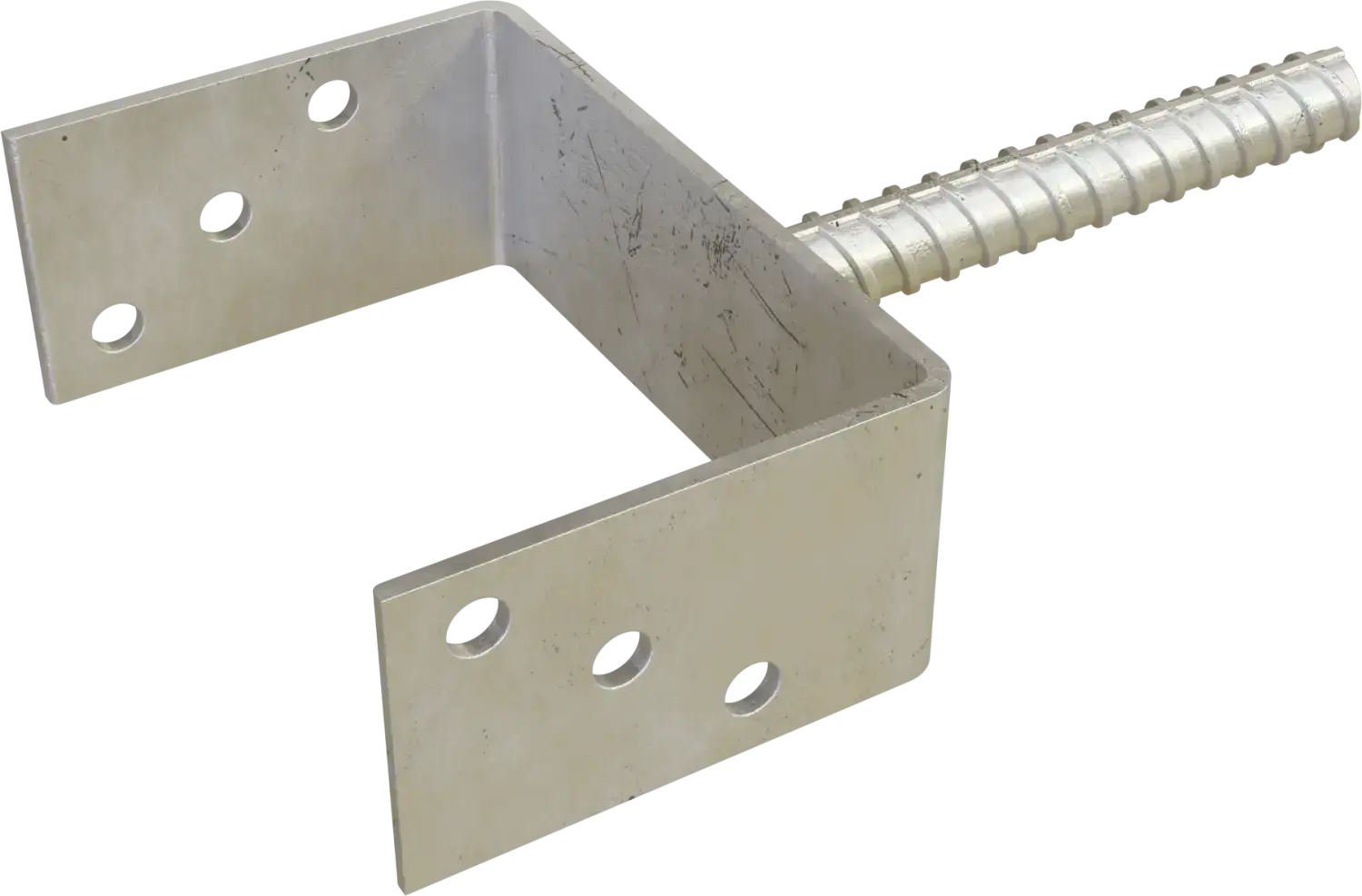

The beam connector allows poles to be mounted to concrete while providing spacing between the wood and the substrate. It is made of galvanized steel sheet, a high-strength low-carbon alloy. It consists of a U-shaped bracket to which a ribbed bar is welded and embedded in the concrete.
It is used for mounting pole bases in concrete substrates.
The connector's design ensures long-term stability. Available in a variety of widths, it also comes in open and adjustable versions, allowing you to choose the right product for your pole size.
CHARACTERISTICS:
- connector made of 4 mm thick steel sheet protected with hot-dip galvanizing
- provides spacing between the wood and the substrate, allowing air circulation and moisture removal
- the design enables stable and secure attachment of wooden poles used in garden architecture to concrete substrates
- a large number of mounting holes ensures a strong connection with the wood
PRODUCT MATERIAL:
Hot-dip galvanized steel sheet.
APPLICATION:
A connector designed for assembling wooden structures.
EXAMPLE OF USE:
Anchoring wooden garden elements such as fence posts, lightweight wooden structures, openwork fences, slatted fences, pergolas, and gazebos. A concrete screed or the use of an SVA chemical anchor is required.
ASSEMBLY INSTRUCTIONS:
- Select the appropriate beam connector size.
- Option A: Place the anchor rod in the fresh concrete, adjust its position, and secure it with supports while the concrete cures.
- Option B: Install the anchor rod into the pre-drilled, clean hole using the SVA chemical anchor. Follow the installation instructions for the SVA chemical anchor.

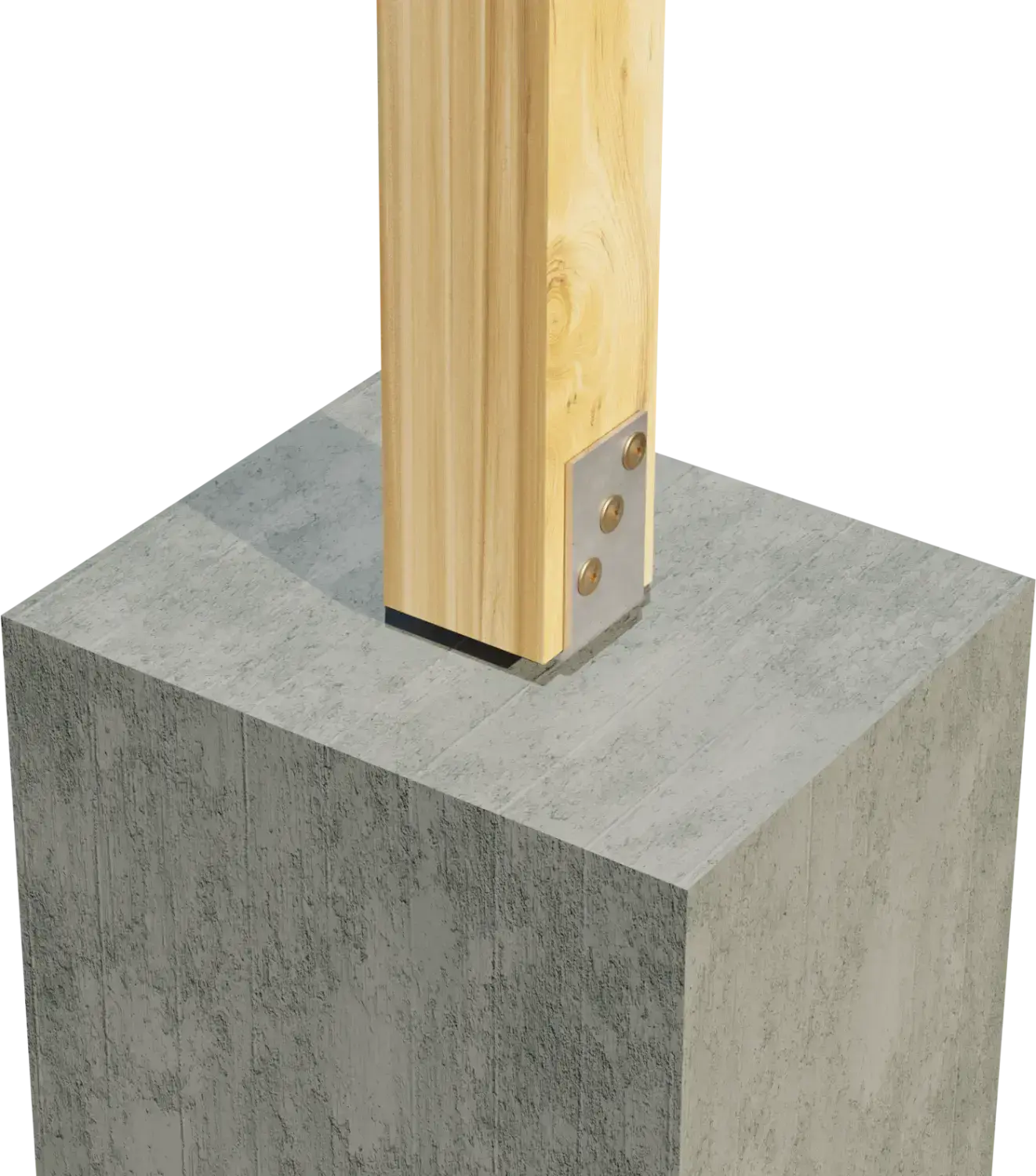

- Once the concrete or chemical anchor has set, secure the pole, align its position, and fasten it with screws or bolts.
