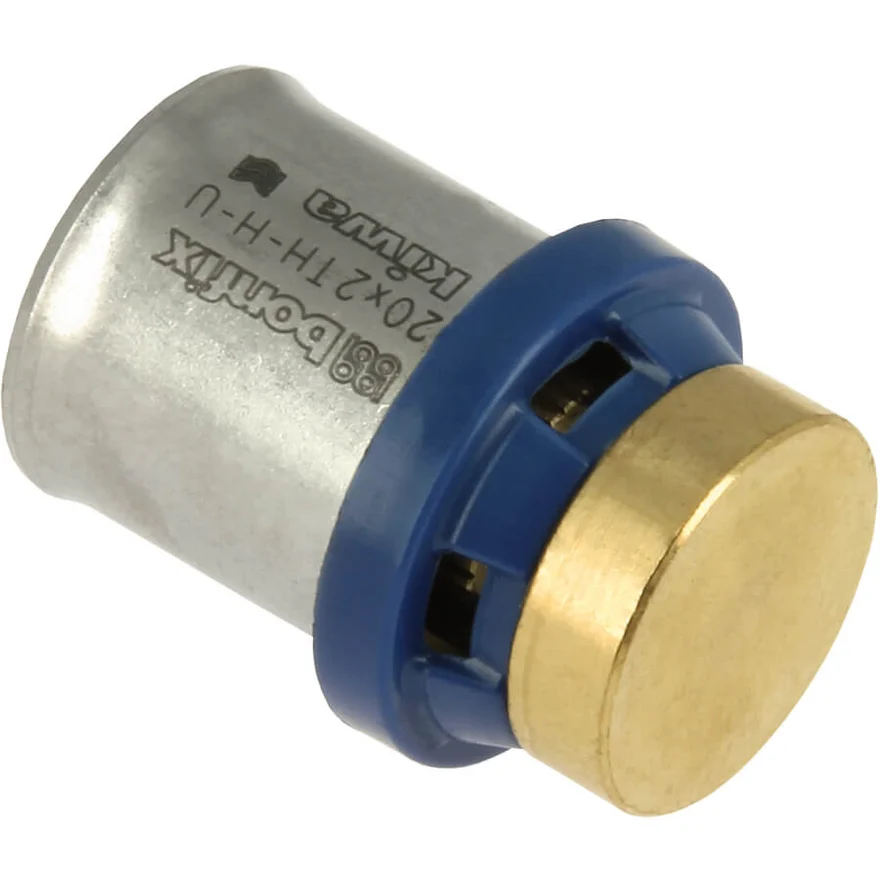

BONFIX Alu-press brass press coupling end cap 20 - 48730355
BONFIX Alu press is a complete and professional piping system for both drinking water installations and central heating applications. The fittings are made of high-quality brass and feature a 304 stainless steel press sleeve for maximum durability. Thanks to the double EPDM O-rings, color coding by size, and the Leak Before Pressed function, you achieve fast, safe, and fully verifiable installation.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
BONFIX Alu press is a complete and professional piping system for both drinking water installations and central heating applications. The fittings are made of high-quality brass and feature a 304 stainless steel press sleeve for maximum durability. Thanks to the double EPDM O-rings, color coding by size, and the Leak Before Pressed function, you achieve fast, safe, and fully verifiable installation.
The BONFIX Alu press fittings fit all BONFIX Alu press pipes and can be pressed using TH, H, U, F, and CH profile jaws. This makes the system widely applicable for residential construction, renovation, and non-residential applications. The fittings have been extensively tested, are KOMO certified up to and including 32 mm, and meet the strict European UBA requirements for drinking water quality.
With an expected lifespan of approximately 50 years and a 10-year system warranty, BONFIX provides certainty, quality, and a pressing system that will last for years.
Why BONFIX Alu press
BONFIX Alu press is developed for installers who want to work quickly, efficiently, and leak-free. The system combines ease of use with reliability through features such as Leak Before Pressed, double O-rings for optimal sealing, and color coding for error-free assembly. Thanks to universal compatibility with multiple press profiles, BONFIX is easy to integrate into any existing installation practice.
The fittings are fully suitable for drinking water, central heating, cooling systems, and low-pressure compressed air, allowing you to use a single system for multiple applications.
In addition, BONFIX Alu press offers a strong price-quality ratio, high corrosion resistance, and proven performance in long-term installations. For installers, this means lower failure costs, faster installation, and greater certainty upon completion.
Specifications
| Specification | Details |
|---|---|
| Article number | 48730355 |
| GTIN number | 8717845485962 |
| Brand | BONFIX |
| Series | Aluminum press |
| Manufacturer's article number | 2004015 |
| Mate | 20 |
| Model | End cap |
| Application | Drinking water / CV |
| Connection 1 | Compression sleeve |
| Contour code | TH/U/H |
| Main color fitting | Brass |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection length 1 | 36 mm |
| Material connection 1 | Brass |
| Material sealing | Ethylene-Propylene-Diene Monomer (EPDM) |
| Max. operating pressure at max. medium temperature | 10 bar |
| Max. working pressure at 20°C | 10 bar |
| Medium temperature (continuous) | -20 - 90 °C |
| Nominal diameter connection 1 | DN 15 |
| Surface treatment connection 1 | Untreated |
| Surface protection connection 1 | Untreated |
| External pipe diameter connection 1 | 20 mm |
| Complies with NF 545 | — |
| Wall thickness connection 1 | 2 mm |
| Working length connection 1 | 36 mm |
