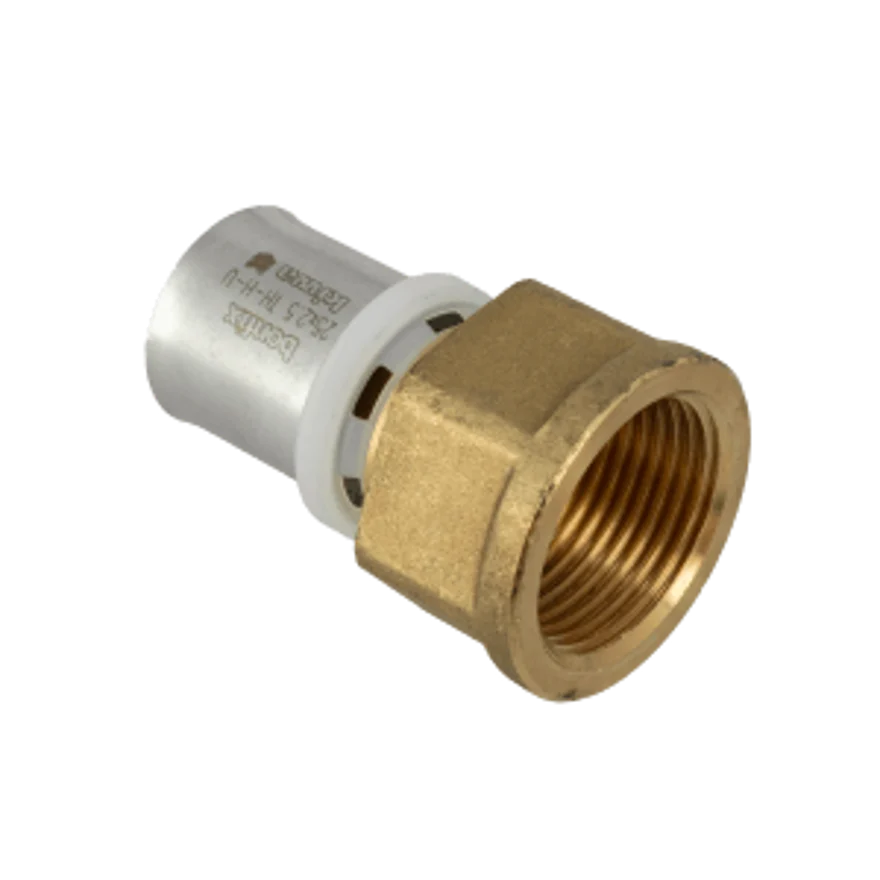

BONFIX Alu-press brass press coupling screw bushing 25 x 1 - 48730336
€ 15,37 (Incl. 21%)
€ 12,70 (Excl. 21%)
- The fitting and the pipe bear the KIWA Water Mark and KOMO certification.
- The system comes with a 10-year warranty.
- Up to and including 32 mm can also be sealed with hand pliers.
- LBP – Leak Before Pressed function.
- The system can be used for legionella prevention.
- Every fitting size has its own color code.
- The fittings and the pipe comply with the requirements of the European UBA list.
- All threads are conical.
Loyalty Points
Earn from this purchase
+7 points
Max discount with points
7.68€
Using 769 points Purchase this item to earn 7 points. As a loyalty member, you can use your points to save up to 7.68€ on this order!
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Key features
- The fitting and the pipe bear the KIWA Water Mark and KOMO certification.
- The system comes with a 10-year warranty.
- Up to and including 32 mm can also be sealed with hand pliers.
- LBP – Leak Before Pressed function.
- The system can be used for legionella prevention.
- Every fitting size has its own color code.
- The fittings and the pipe comply with the requirements of the European UBA list.
- All threads are conical.
Product information
BONFIX supplies a wide range of press fittings and pipes. This system can be used for drinking water installations and central heating systems in both low and high temperature systems.
Specifications
| Specification | Details |
|---|---|
| Article number | 48730336 |
| GTIN number | 8717845019488 |
| Brand | BONFIX |
| Series | Aluminum press |
| Manufacturer's article number | 2000355 |
| Mate | 25 x 1" |
| Model | Screw bushing |
| Application | Drinking water / CV |
| Connection 1 | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Connection 2 | Compression sleeve |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection quality class 2 | CuZn40Pb2 (CW617N) |
| Main color fitting | Brass |
| Length | 637 mm |
| Connection length 1 | 356 mm |
| Connection length 2 | 281 mm |
| Material connection 1 | Brass |
| Material connection 2 | Brass |
| Material sealing | Ethylene-Propylene-Diene Monomer (EPDM) |
| Max. operating pressure at max. medium temperature | 10 bar |
| Max. working pressure at 20°C | 10 bar |
| Medium temperature (continuous) | -20 - 90 °C |
| Model | 1-piece |
| Nominal diameter connection 1 | 1" (25) |
| Nominal diameter connection 2 | DN 20 |
| Surface treatment connection 1 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Key width | 38 mm |
| External pipe diameter connection 1 | 30291 mm |
| External pipe diameter connection 2 | 25 mm |
| Form | Law |
| Wall thickness connection 1 | 37 mm |
| Wall thickness connection 2 | 5855 mm |
| Wall thickness of connecting pipe, connection 2 | 25 mm |
| Working length connection 1 | 25 mm |
| Working length connection 2 | 9 mm |
| Zeta value | 5 |
