Key features
Product information

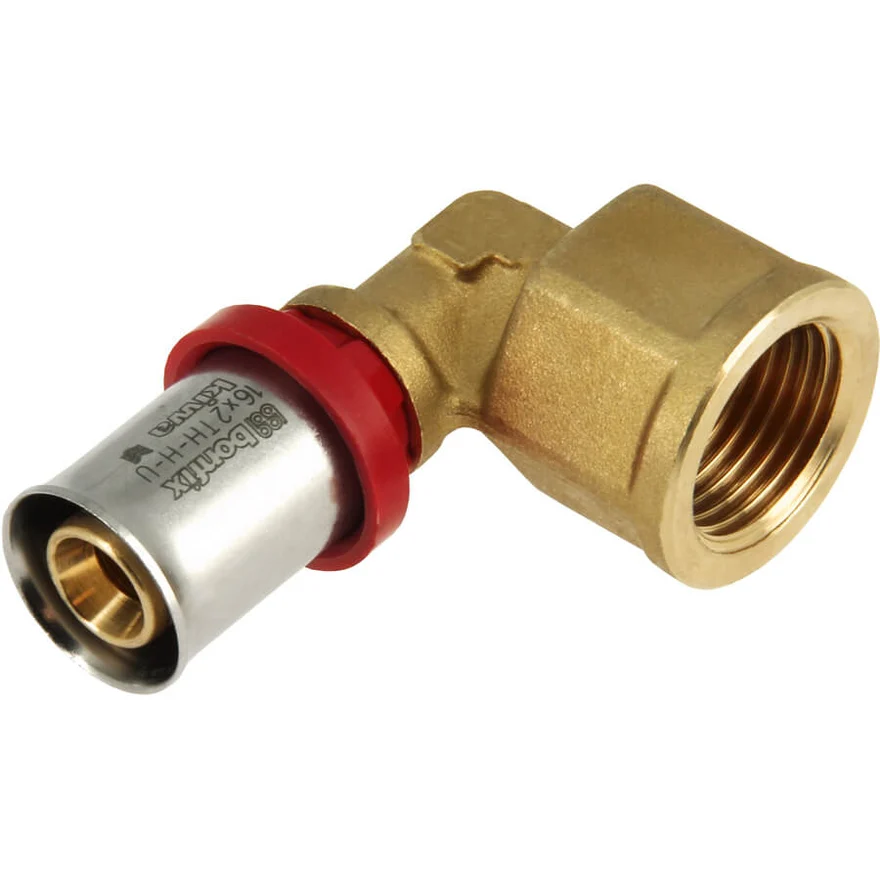

The BONFIX Alu-press brass press coupling screw bushing angled 16 x 1/2" is used to connect a 16 mm Alu-press multilayer pipe at a right angle to a component with a 1/2-inch thread. This angled screw bushing is ideal when piping needs to be connected at a fixed angle to, for example, a tap, valve, radiator, or manifold. The press side ensures a secure and leak-free connection to the multilayer pipe, while the 1/2-inch thread offers a reliable connection to existing installations. Suitable for drinking water and central heating systems.
Why BONFIX Alu-press?
BONFIX Alu-press has been developed for installers who value speed, assembly reliability, and system quality. The pressing system offers reproducible results and helps prevent assembly errors thanks to smart safety features such as Leak Before Pressed. The combination of high-quality brass fittings, clear color coding by size, and broad compatibility with press jaws allows you to work efficiently and with minimal errors. BONFIX Alu-press complies with applicable standards and is suitable for professional use in new construction and renovation.
Specifications
| Specification | Details |
|---|---|
| Article number | 48731010 |
| GTIN number | 8717845021108 |
| Brand | BONFIX |
| Series | Aluminum press |
| Manufacturer's article number | 2001105 |
| Mate | 16 x 1/2 |
| Model | Right-angled screw bushing |
| Application | Drinking water / CV |
| Connection 1 | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Connection 2 | Compression sleeve |
| Cornering angle | 90° |
| Contour code connection 2 | TH/U/H |
| Main color fitting | Brass |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection quality class 2 | CuZn40Pb2 (CW617N) |
| Length | 782 mm |
| Connection length 1 | 477 mm |
| Connection length 2 | 305 mm |
| Material connection 1 | Brass |
| Material connection 2 | Brass |
| Material sealing | Ethylene-Propylene-Diene Monomer (EPDM) |
| Max. operating pressure at max. medium temperature | 10 bar |
| Max. working pressure at 20°C | 10 bar |
| Medium temperature (continuous) | -20 - 90 °C |
| Model | 1-piece |
| Nominal diameter connection 1 | 1/2" (15) |
| Nominal diameter connection 2 | DN 12 |
| Surface treatment connection 1 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Swivel wrench size | 25 mm |
| External pipe diameter connection 1 | 18631 mm |
| External pipe diameter connection 2 | 16 mm |
| Form | Knee |
| Wall thickness connection 1 | 34 mm |
| Wall thickness connection 2 | 575 mm |
| Wall thickness of connecting pipe, connection 2 | 2 mm |
| Working length connection 1 | 205 mm |
| Working length connection 2 | 155 mm |
| Zeta value | 1 |
