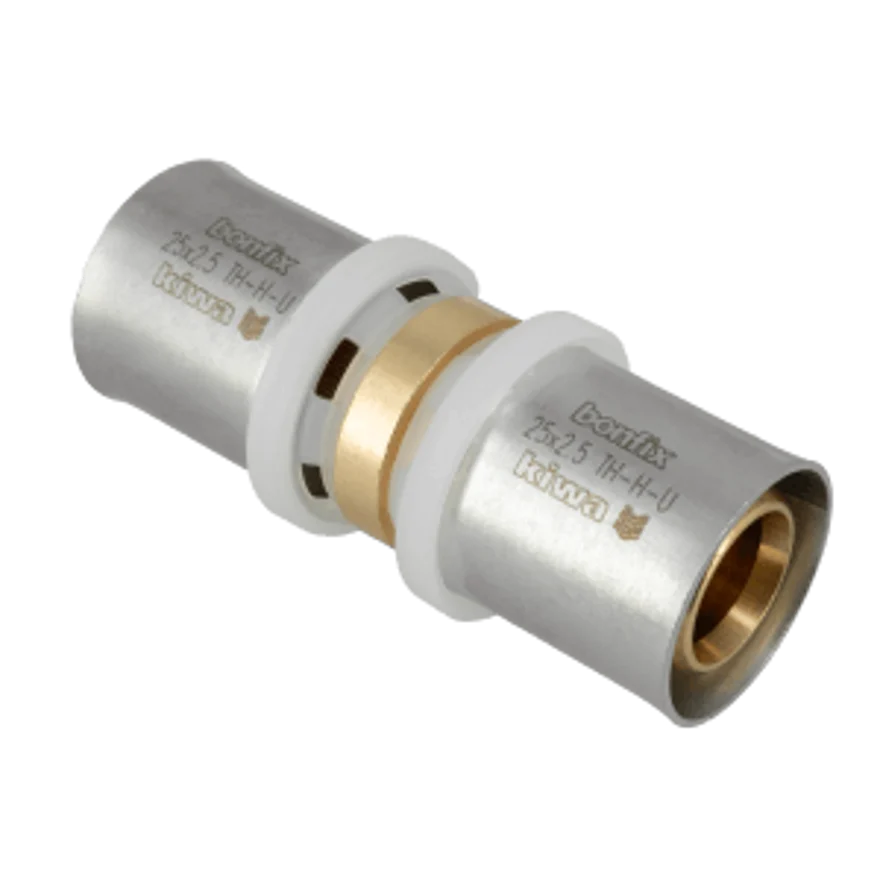

BONFIX Alu-press Brass Press Coupling Socket 25 x 25 - 48730118
€ 14,22
(Incl. 21%)
€ 11,75
(Excl. 21%)
- KIWA Water Mark and KOMO certification: The fitting and the pipe bear the KIWA Water Mark and KOMO certification.
- 10-year warranty: The system comes with a 10-year warranty.
- Hand pliers: Up to and including 32 mm, the fittings can also be sealed with hand pliers.
- LBP - LeakBeforePressed function: The Leak Before Pressed function helps identify an unpressed connection.
- Legionella prevention: The system can be used for legionella prevention.
- Color coding: Every fitting size has its own color code.
- European UBA requirements: The fittings and the pipe comply with the requirements of the European UBA list.
- Conical threads: All threads are conical.
Loyalty Points
Earn from this purchase
+7
points
Max discount with points
7.11€
Using 711 points
Purchase this item to earn 7 points. As a loyalty member, you can use your points to save up to 7.11€ on this order!
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
Key features
- KIWA Water Mark and KOMO certification: The fitting and the pipe bear the KIWA Water Mark and KOMO certification.
- 10-year warranty: The system comes with a 10-year warranty.
- Hand pliers: Up to and including 32 mm, the fittings can also be sealed with hand pliers.
- LBP - LeakBeforePressed function: The Leak Before Pressed function helps identify an unpressed connection.
- Legionella prevention: The system can be used for legionella prevention.
- Color coding: Every fitting size has its own color code.
- European UBA requirements: The fittings and the pipe comply with the requirements of the European UBA list.
- Conical threads: All threads are conical.
Product information
BONFIX supplies a wide range of press fittings and pipes. This system can be used for drinking water installations and central heating systems in both low- and high-temperature systems.
Specifications
| Specification | Details |
|---|---|
| Article number | 48730118 |
| GTIN number | 8717845019112 |
| Brand | BONFIX |
| Series | Aluminum press |
| Manufacturer's article number | 2000130 |
| Mate | 25 x 25 |
| Model | Sock |
| Application | Drinking water / CV |
| Connection 1 | Compression sleeve |
| Connection 2 | Compression sleeve |
| Contour code connection 1 | TH/U/H |
| Contour code connection 2 | TH/U/H |
| Main color fitting | Brass |
| Connection quality class 1 | CuZn40Pb2 (CW617N) |
| Connection quality class 2 | CuZn40Pb2 (CW617N) |
| Length | 772 mm |
| Connection length 1 | 386 mm |
| Connection length 2 | 386 mm |
| Material connection 1 | Stainless steel |
| Material connection 2 | Stainless steel |
| Material sealing | Ethylene-Propylene-Diene Monomer (EPDM) |
| Max. operating pressure at max. medium temperature | 10 bar |
| Max. working pressure at 20°C | 10 bar |
| Medium temperature (continuous) | -20 - 90 °C |
| Model | 1-piece |
| Nominal diameter connection 1 | DN 20 |
| Nominal diameter connection 2 | DN 20 |
| Surface treatment connection 1 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| External pipe diameter connection 1 | 25 mm |
| External pipe diameter connection 2 | 25 mm |
| Form | Law |
| Wall thickness connection 1 | 37 mm |
| Wall thickness connection 2 | 37 mm |
| Wall thickness of connecting pipe, connection 1 | 25 mm |
| Wall thickness of connecting pipe, connection 2 | 25 mm |
| Working length connection 1 | 55 mm |
| Working length connection 2 | 55 mm |
| Zeta value | 5 |
