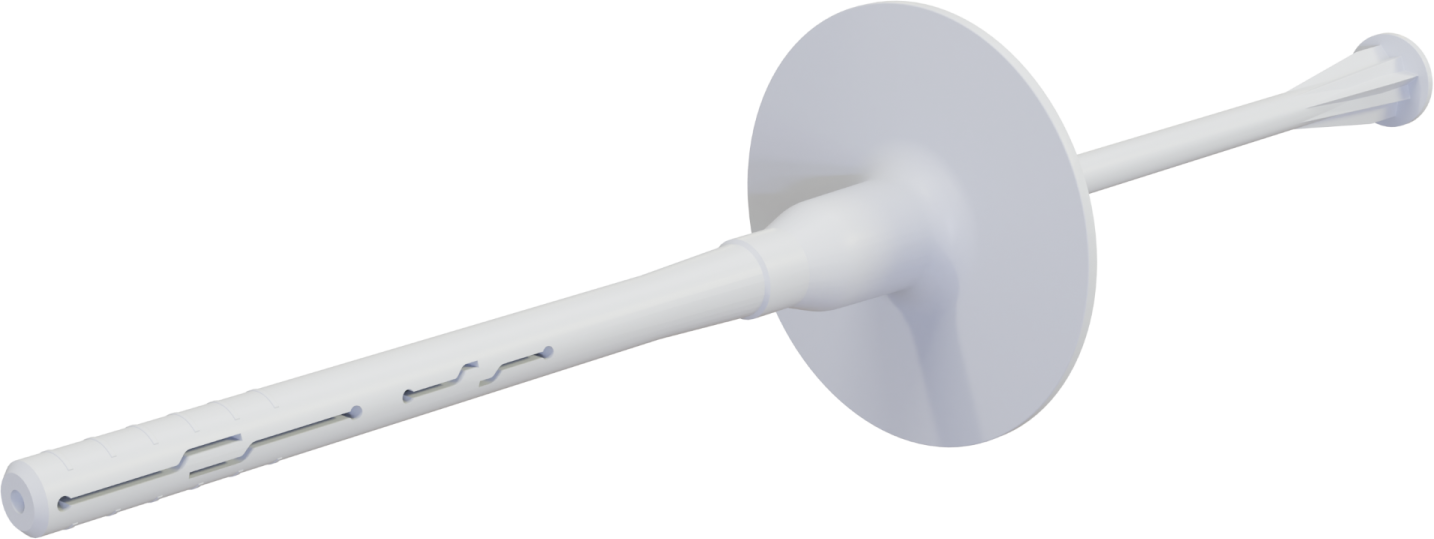

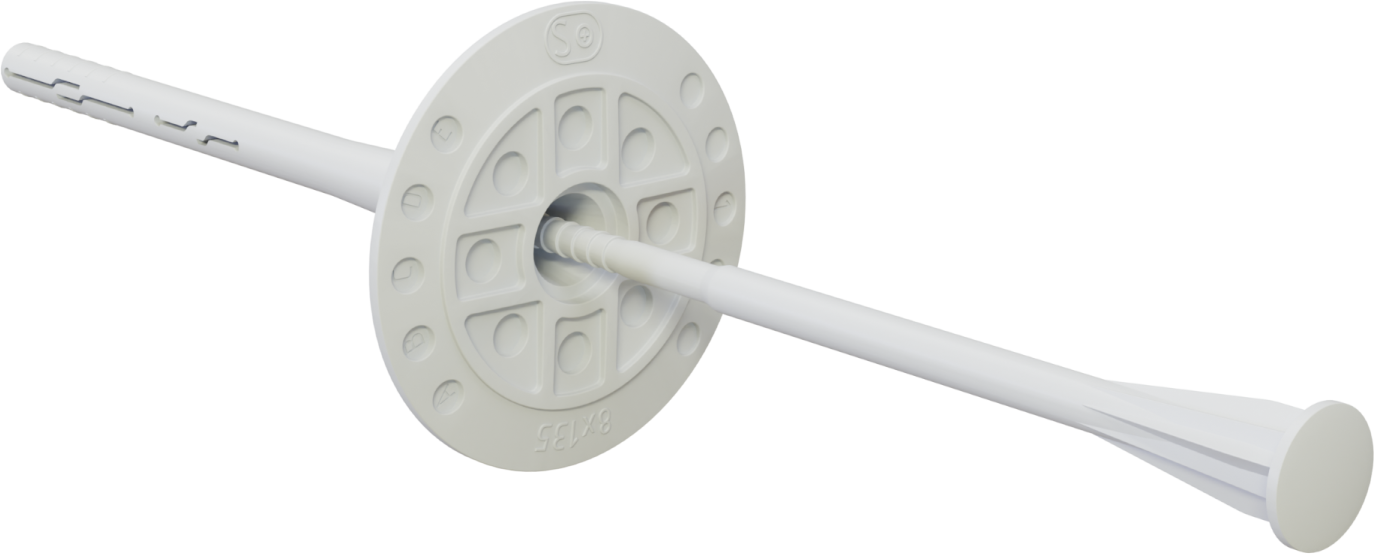

Insulation fixing plug with polyamide pin KTP ø8 x 95 mm STALCO KTP 8x 95

PRODUCT DESCRIPTION:

The KTP insulation anchor is designed for the mechanical fastening of thermal insulation materials using a hammer-in plastic pin. The anchor is manufactured from high-quality polypropylene copolymer, while the pin is made of glass-fiber-reinforced polyamide. It is suitable for securing various types of polystyrene insulation boards.

The KTP anchor is available in diameters of 8 and 10 mm, with lengths ranging from 95 to 300 mm, providing options for different insulation thicknesses.

FEATURES:

• High-quality polypropylene copolymer sleeve provides rigidity, stability, and durability
• Glass-fiber-reinforced polyamide pin ensures secure fastening and helps reduce thermal bridging
• Intuitive installation system enables quick and efficient assembly
• Wide collar and durable sleeve material help protect insulation materials from damage
• Suitable for insulation materials of various thicknesses, up to 260 mm

PRODUCT MATERIAL:

High-quality polypropylene copolymer sleeve with a glass-fiber-reinforced polyamide expansion pin.

APPLICATION:

Designed for fastening thermal insulation materials to building substrates such as standard C20/C25 concrete, Class 15 solid ceramic brick, Class 15 perforated ceramic block, and aerated concrete.

Suitable for securing polystyrene boards and other compatible insulation materials.

TECHNICAL DATA:

Diameter: Ø8 × 95 mm.
