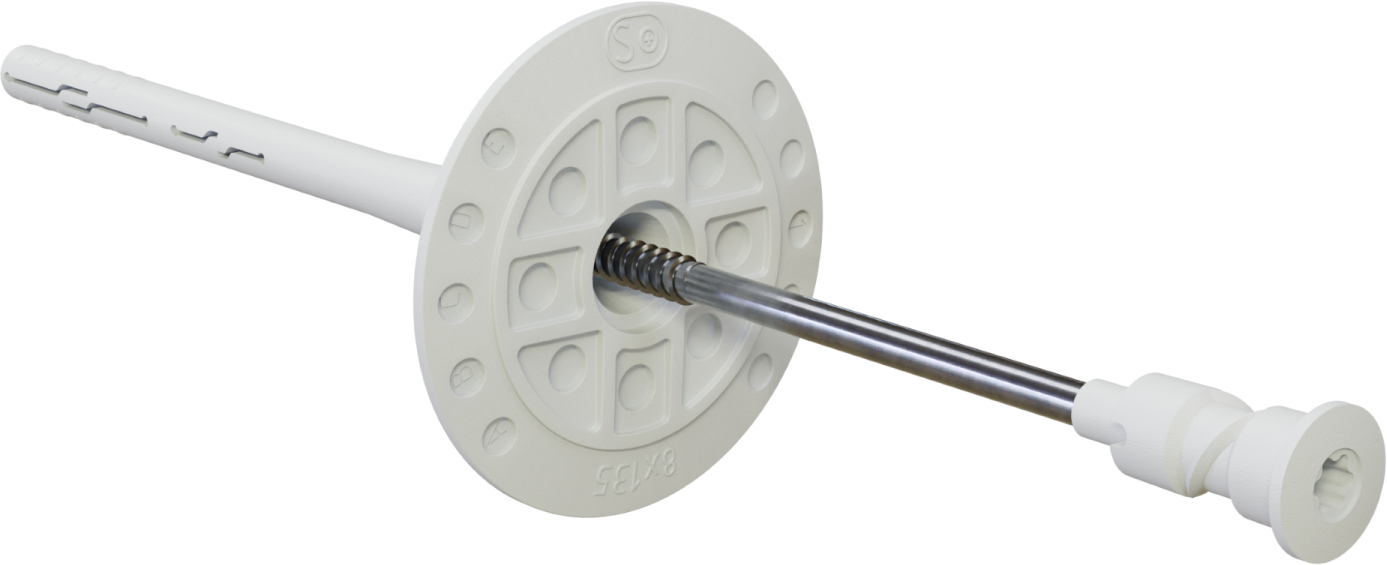

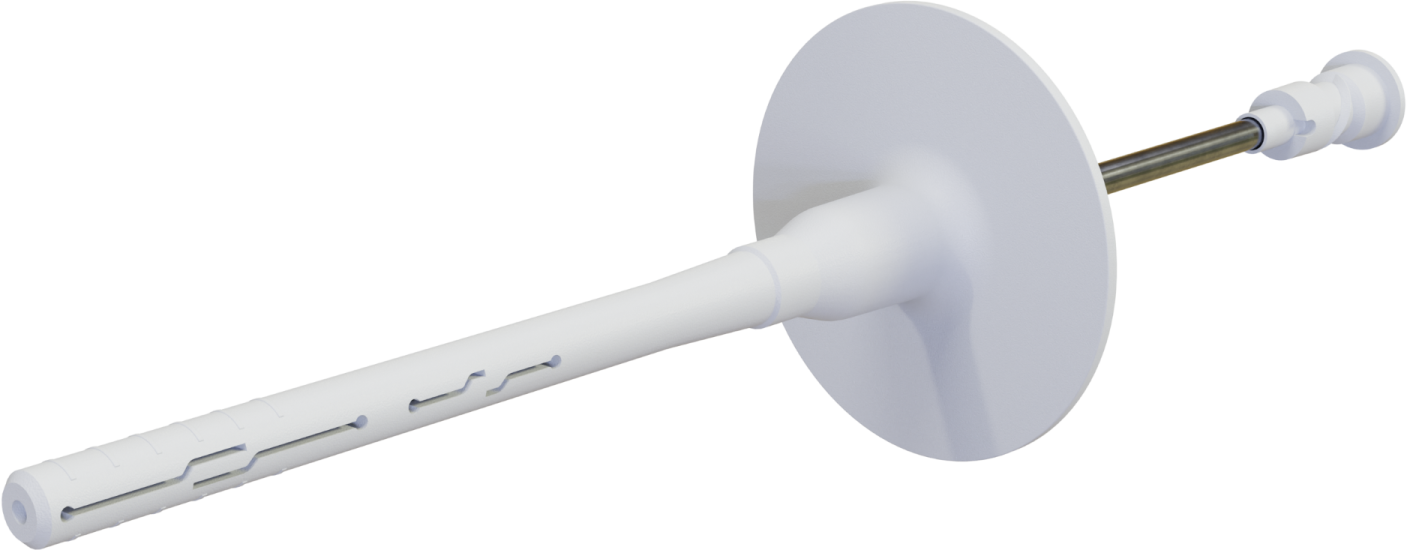

Insulation fixing plug with screw-in metal pin KTS ø8 x 95 mm STALCO KTS8x 95

PRODUCT DESCRIPTION:

The KTS plug is designed for the mechanical fastening of thermal insulation materials in building insulation systems. It consists of a sleeve made of high-quality polypropylene copolymer and a galvanized steel screw-in pin.

The screw-in pin enables precise installation and secure anchoring of the plug in the substrate. The KTS plug is suitable for fastening polystyrene boards, mineral wool, and other insulation materials used in facade insulation systems.

FEATURES AND ADVANTAGES:

• Suitable for installation in all substrate categories A, B, C, D, and E
• Screw-in installation allows the plug to be positioned perfectly flush with the insulation surface
• The design of the steel pin helps reduce thermal bridging and heat loss through the facade
• T30 drive socket made of glass-fiber-reinforced polyamide ensures quick and easy installation
• Quick recessed installation without milling using the KOSZ63 slotting cutter helps keep the installation area clean
• Minimal anchorage depths: only 25 mm in substrates A, B, and C, and 45 mm in substrates D and E

PRODUCT MATERIALS:

• Sleeve: Polypropylene copolymer
• Pin: Galvanized steel with a drive socket made of glass-fiber-reinforced polyamide

APPLICATION:

• Mechanical fastening of facade thermal insulation materials
• Suitable for polystyrene boards, mineral wool, and other insulation materials used in facade insulation systems
