MIG welder FluxLite 140 STALCO S056697553
IGBT inverter
MMA / LIFT TIG functions
Overheating protection
Hot Start – automatic arc ignition boost
ARC Force – initial increase of welding current
Anti-stick – protection against electrode sticking
Metal thickness selection
Gas selection
Wire diameter selection
CC – Constant current
CV – Constant voltage
1-roll wire feeder
Fan cooling
2 m power cable
Generator compatible
Thermal protection
MIG welding torch – MB14AKS
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920

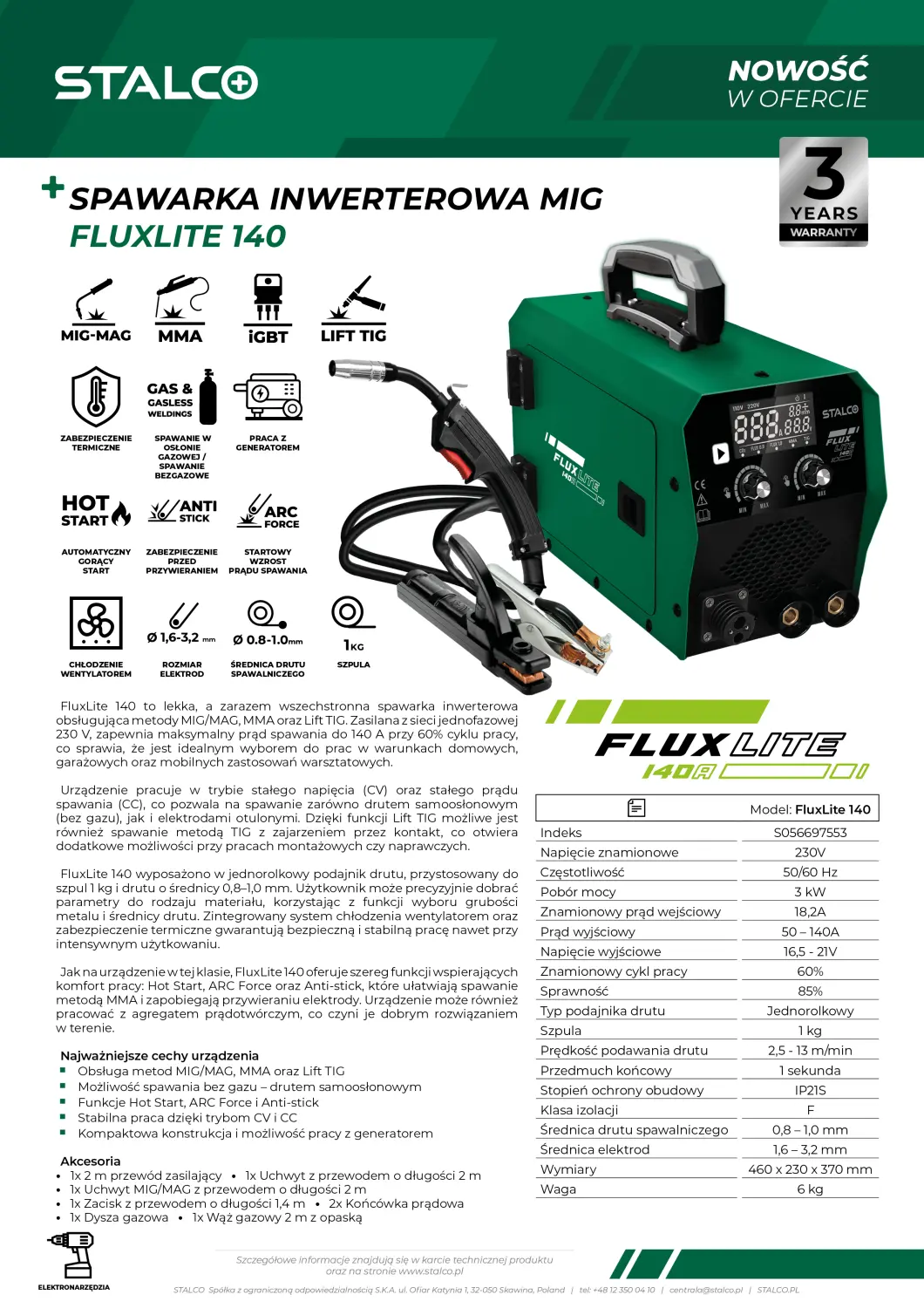

FluxLite 140 Inverter Welder – a lightweight and versatile inverter welding machine supporting MIG/MAG, MMA, and Lift TIG methods. Powered by a single-phase 230 V supply, it delivers a maximum welding current of 140 A at a 60% duty cycle, making it ideal for home, garage, and mobile workshop applications.
The device operates in Constant Voltage (CV) and Constant Current (CC) modes, enabling welding with self-shielded wire (gasless) as well as coated electrodes. Thanks to the Lift TIG function, TIG welding with contact ignition is also possible, expanding its use for installation and repair work.
The user can precisely adjust parameters according to material type using metal thickness and wire diameter selection functions. An integrated fan cooling system and thermal protection ensure safe and stable operation even during intensive use.
For its class, the FluxLite 140 offers advanced features enhancing working comfort: adjustable Hot Start, ARC Force, and Anti-stick functions that simplify MMA welding and prevent electrode sticking. The unit can also operate with a power generator, making it suitable for fieldwork.
Main Features:
- Supports MIG/MAG, MMA, and Lift TIG methods
- Gasless welding capability with self-shielded wire
- Hot Start, ARC Force, and Anti-stick functions
- Stable operation in CV and CC modes
- Compact design and generator-compatible
Accessories:
- 1x 2 m power cable
- 1x MIG/MAG torch with 2 m cable
- 1x Electrode holder with 2 m cable
- 1x Ground clamp with 1.4 m cable
- 2x Contact tips
- 1x Gas nozzle
- 1x 2 m gas hose with clamp
Technical Data:
- Rated voltage: 230V
- Frequency: 50/60 Hz
- Power consumption: 3 kW
- Rated input current: 18.2 A
- Output current: 50 - 140 A
- Output voltage: 16.5 - 21 V
- Duty cycle: 60%
- Efficiency: 85%
- Wire feeder type: Single roller
- Spool capacity: 1 kg
- Wire feed speed: 2.5 - 13 m/min
- Burn-back time: 1 s
- Protection class: IP21S
- Insulation class: F
- Welding wire diameter: 0.8 - 1.0 mm
- Electrode diameter: 1.6 - 3.2 mm
- Dimensions: 460 x 230 x 370 mm
- Weight: 6 kg
