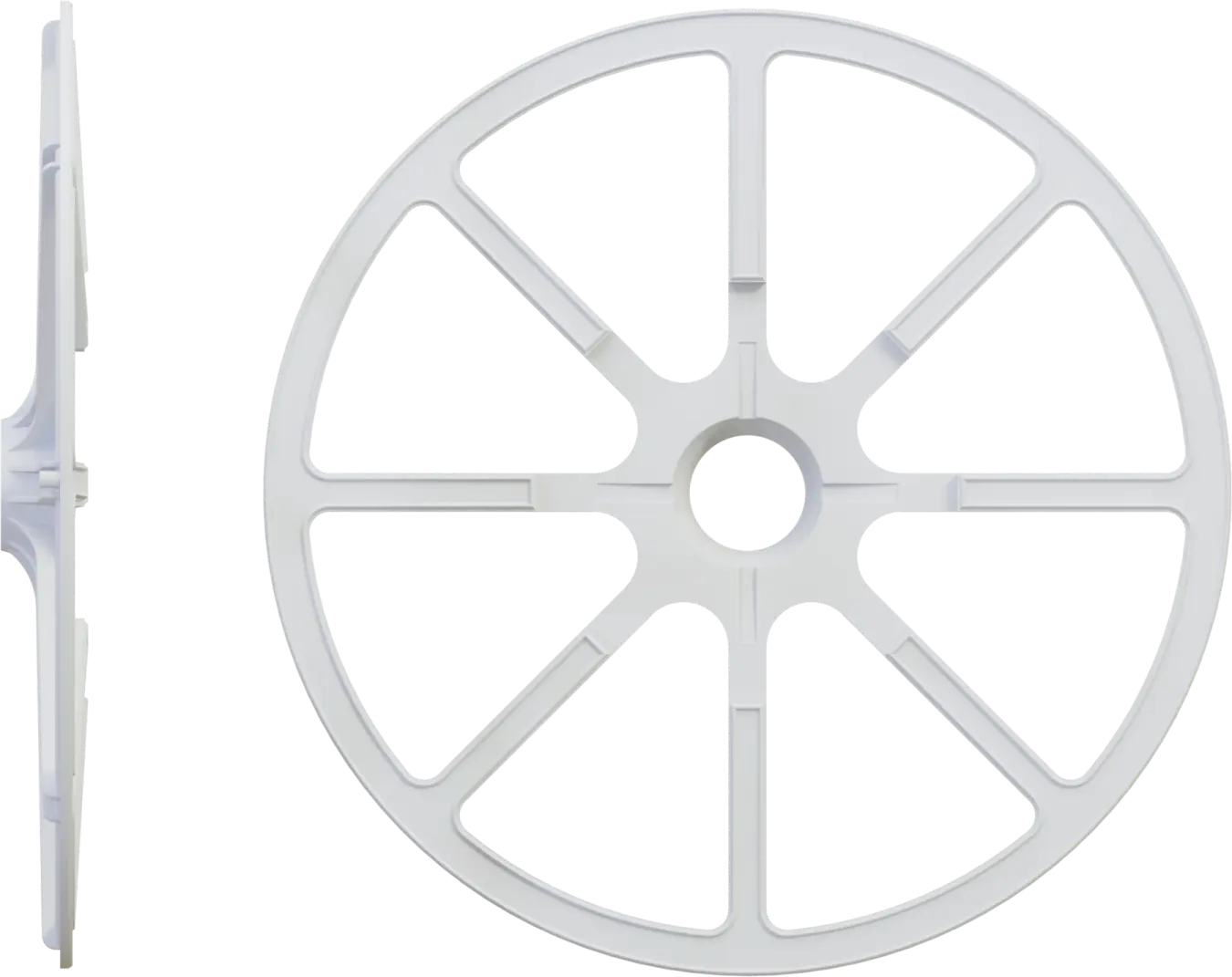

Pressure flange for insulation mounting TD flange: ø140 mm, hole: ø10.5 mm STALCO TD-140

PRODUCT DESCRIPTION:

The compression collar for insulation fastening is a mounting accessory designed for mechanical installation of thermal insulation systems. It is made of durable polypropylene copolymer, providing good resistance to construction chemicals and reliable performance during installation.

The collar is available in two variants with different outer diameters: TD60 for polystyrene insulation and TD140 for lamella mineral wool boards. The internal hole allows the pin of the TD140 insulation plug or TD60 screws to pass through, increasing the clamping surface and improving load distribution over the insulation.

Depending on the insulation material and installation requirements, 60 mm or 140 mm diameter collars can be selected.

FEATURES:

• Durable polypropylene copolymer construction
• Special collar design increases the supporting surface for secure fastening
• Available in two sizes for greater versatility
• Collar shape enables quick and easy installation

PRODUCT MATERIAL:

Polypropylene copolymer.

APPLICATION:

Designed for the mechanical fastening of thermal insulation materials, including polystyrene and lamella mineral wool.

TECHNICAL DATA:

Collar diameter: Ø140 mm
Hole diameter: Ø5.5 mm
