RAIZOR MTC: cutting system for tiles and slabs

• Art. 433CP00AM — RAIZOR MTC Cutting System.

• Modular system consisting of 4 guides (75 cm each) — combine all modules for up to 327 cm cutting length.

• Optimized for both traditional tile formats and large-format slabs.

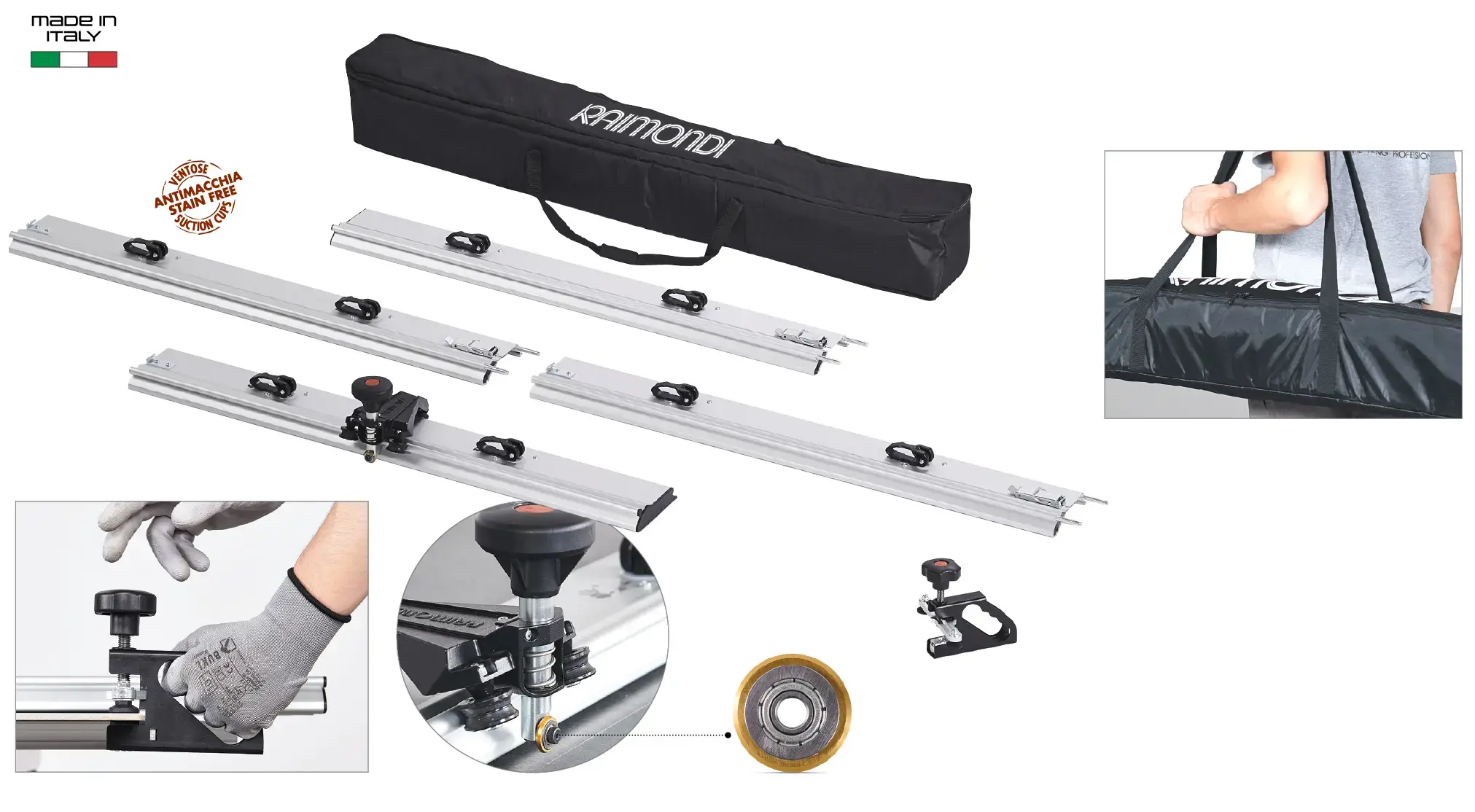

Included in RAIZOR MTC

• 4 guides/modules, each with:

  • 2 double-lip Ø95 mm suction cups

  • Stain-resistant rubber

  • Release tabs

  • (8 suction cups total)

• Die-cast aluminum scoring unit with:

  • Double-rail sliding

  • Spring-loaded scoring pin

  • Ø20 mm titanium-coated wheel with integrated bearing

• PREMIUM cutting pliers for 3–15 mm tiles (Art. 169TX01AR).

• Padded bag with shoulder straps and storage pocket.

Performance & Structural Features

• Suction cups ensure:

  • Excellent grip

  • No movement during scoring

  • No tipping of guides under pressure

  • Precision and efficiency even on thick tiles

• Resin scoring wheels (3 total), each with two bearings, ensure extremely smooth travel.

• Adjustable system provides perfect parallel alignment between scoring wheel and guide.

• Titanium-coated Ø20 mm wheel ensures:

  • High wear resistance

  • Smooth scoring

  • Precise and effective cuts

  • Easy replacement

• Special extruded aluminum design provides high rigidity with low weight.

• Scoring distance from aluminum guide: 20 mm for quick measurement.

• 180° swiveling suction handles to prevent interference with the scoring unit.

• All suction cups include release tabs.

Compatibility & Options

• Optional 66 cm extension (Art. 433CP00M66).

• Optional POWER-RAIZOR MkII for 45°–90° diamond blade cutting.

• For tiles >12 mm, optional pliers Art. 169TM01AN (galvanized steel, progressive pressure knob).
