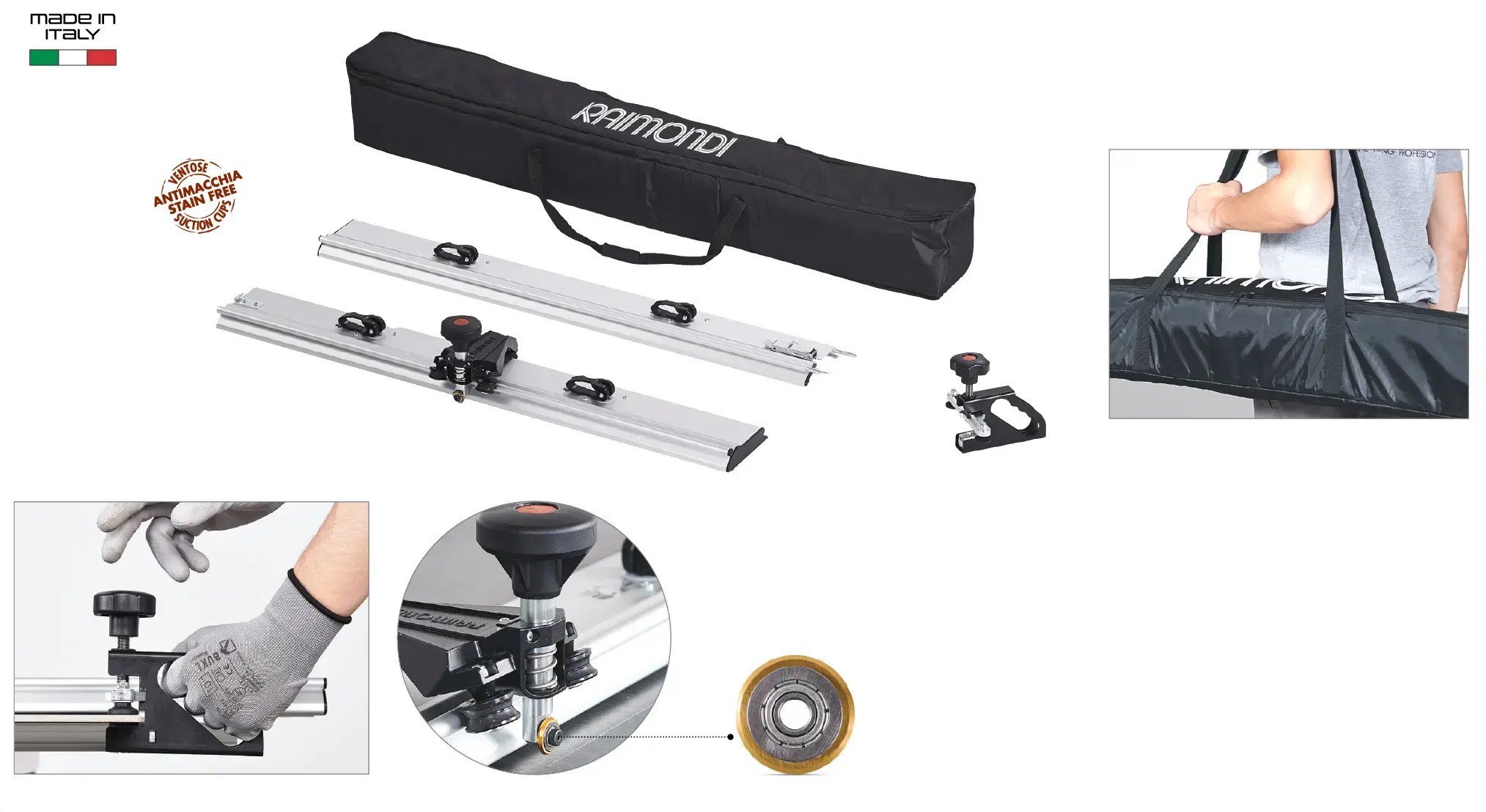

RAIZOR MTC2X: cutting system for tiles and slabs

• Art. 433CP00AM2 — RAIZOR MTC2X Cutting System.

• Modular system with 2 guides, each with 75 cm cutting capacity.

• Combined cutting length: 160 cm when both modules are connected.

• Ideal for traditional tile sizes and medium large-format slabs.

Included in RAIZOR MTC2X

• 2 guides, each with:

  • 2 double-lip suction cups Ø95 mm (4 total)

  • Stain-resistant rubber

  • Release tabs

• Die-cast aluminum scoring unit with:

  • Double-rail sliding

  • Spring-loaded scoring pin

  • Ø20 mm titanium-coated wheel with integrated bearing

• PREMIUM cutting pliers for 3–15 mm tiles (Art. 169TX01AR).

• Padded transport bag with shoulder straps and storage pocket.

Performance & Precision

• Suction cups ensure the guide does not move or tip during scoring — even with off-center pressure.

• Suited for moderately structured materials thanks to the double-lip rubber cups.

• Scoring unit runs on 3 high-performance resin wheels, each with two bearings.

• Adjustment system ensures perfect parallelism between scoring wheel and guide track.

• Titanium-coated Ø20 mm wheel ensures:

  • High wear resistance

  • Smooth and precise scoring

  • Long operation life

  • Quick replacement

• Aluminum extrusions provide high rigidity with low weight.

• Scoring line offset: 20 mm from guide edge for quick measurement.

• Suction handles rotate 180° to avoid interference.

Compatibility & Options

• Optional 66 cm extension (Art. 433CP00M66).

• Compatible with POWER-RAIZOR MkII for diamond blade cuts between 45°–90°.

• For tiles thicker than 12 mm, optional pliers Art. 169TM01AN recommended.
