Screw clamp OPŚ ø12-22 mm STALCO S-41022

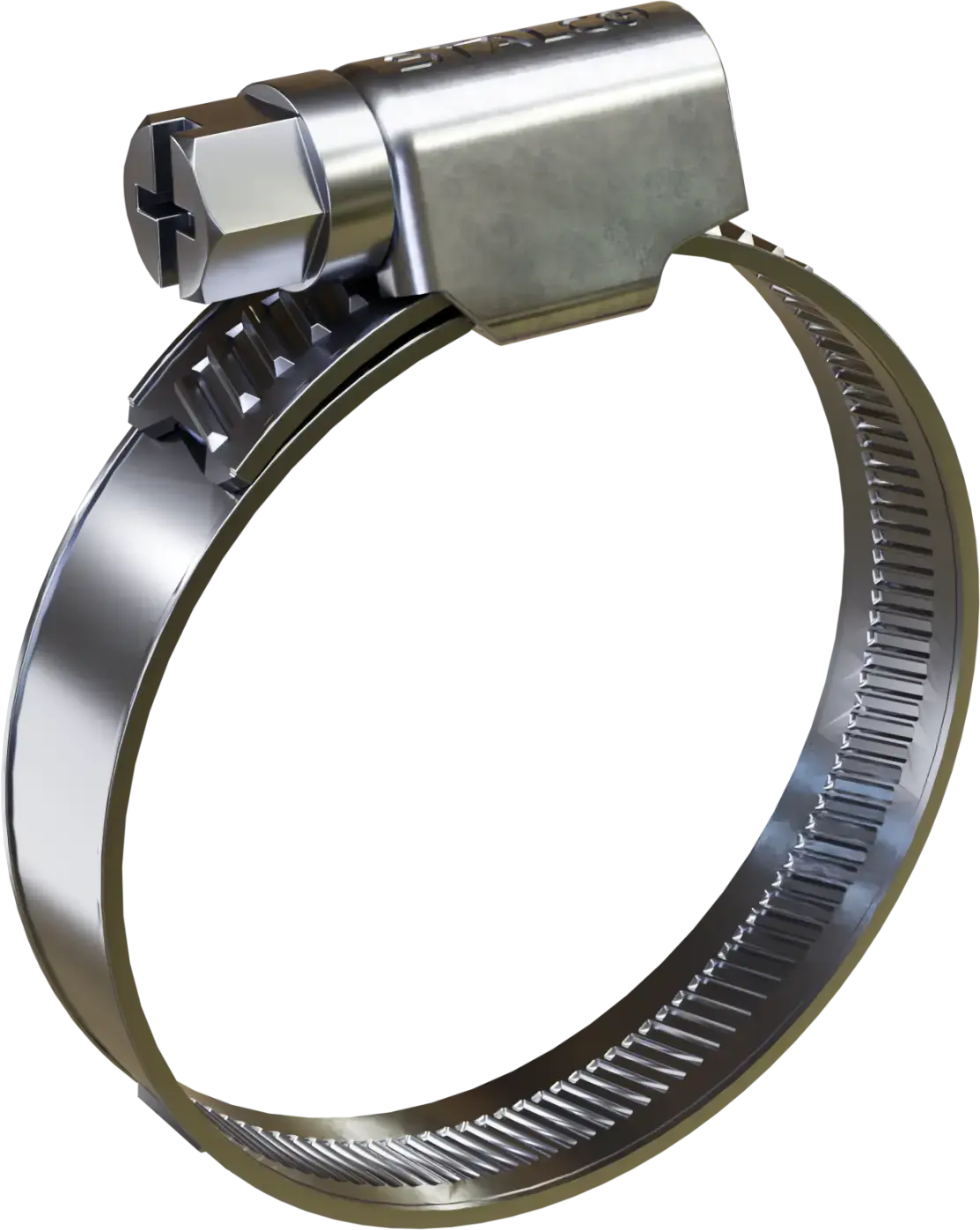

OPŚ worm drive clamps are designed for secure and reliable fastening of industrial hoses, flexible conduits, and pipes during installation and maintenance work. Each clamp consists of a 9 mm-wide metal band and a tightening mechanism operated by a screw with a hexagonal head and Phillips socket. The screw and locking mechanism are made of electro-galvanized steel, while the band features an aluminium-zinc (Al-Zn) coating for improved resistance to external conditions.

The worm drive mechanism allows the clamp to be tightened or loosened easily, providing a secure fit around hoses and flexible conduits. The band distributes clamping force evenly and adapts to the surface of the secured component, helping create a tight connection. Rounded band edges help protect the hose surface from damage during installation and use. The clamp can be installed using a PH2 screwdriver or a 7 mm wrench, making it a practical solution for a wide range of assembly and maintenance applications.

FEATURES:

• Designed for secure fastening of hoses, pipes, and flexible conduits
• Screw and locking mechanism made of electro-galvanized steel
• Metal band with an aluminium-zinc (Al-Zn) coating
• 9 mm-wide band helps distribute clamping force evenly
• Adjustable worm drive mechanism for secure tightening and easy loosening
• Rounded band edges help protect hose surfaces from damage
• Easy installation using a PH2 screwdriver or a 7 mm wrench
• Suitable for components of various diameters, within the clamp's size range

PRODUCT MATERIAL: Electro-galvanized steel screw and locking mechanism, with an Al-Zn-coated metal band.

APPLICATION: Designed for creating tight connections and securing hoses, pipes, fittings, and flexible conduits.

APPLICATION EXAMPLES:

• Agricultural systems and equipment
• Construction and industrial installations
• Automotive applications
• Water and air systems
• Securing rubber hoses to fittings
• Fastening flexible conduits and compatible pipe connections
