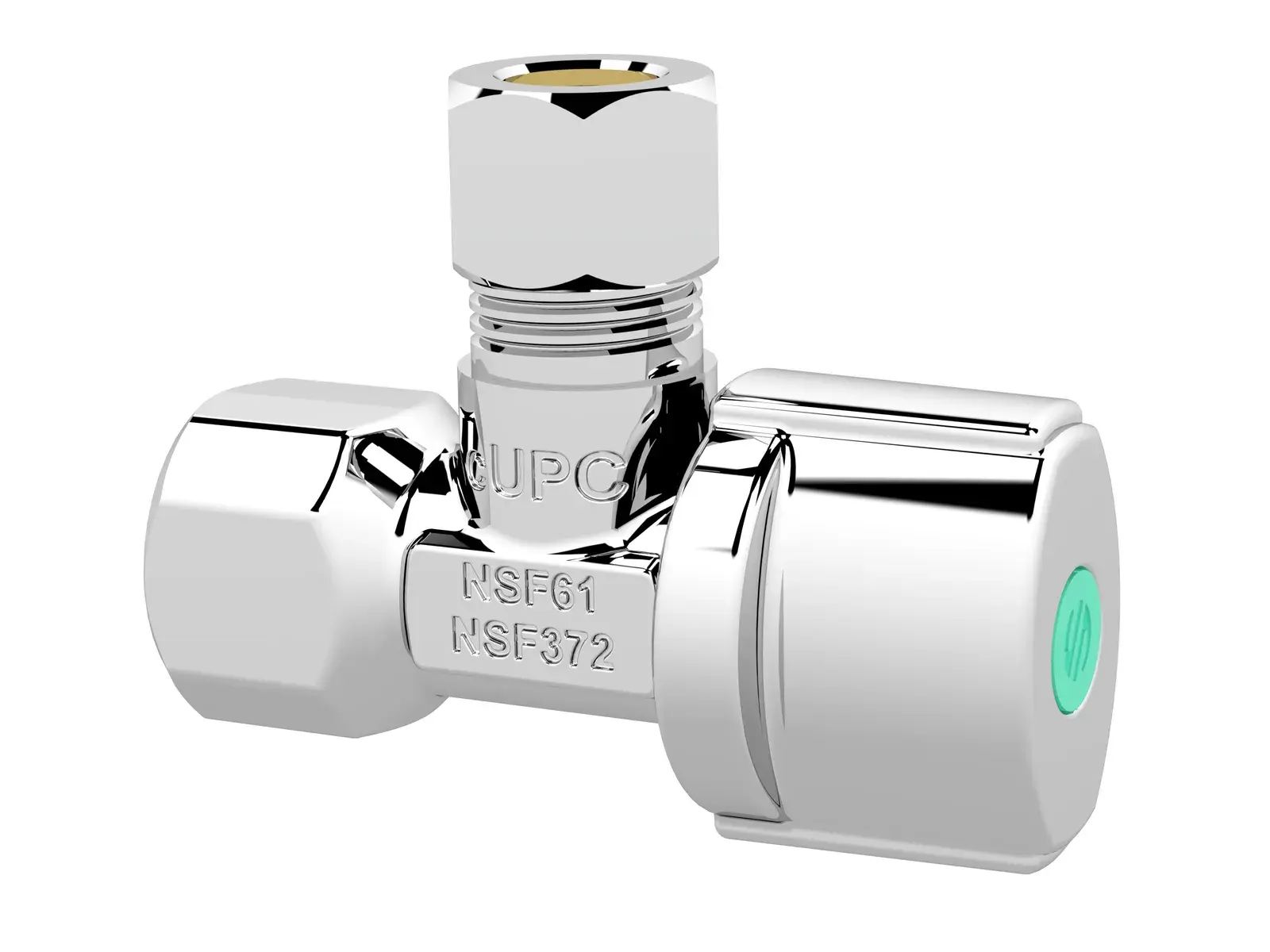

1/4-turn angle supply stop 3/8" F NPT x 3/8" OD 214010
The ARCO 214010 is a 1/4-turn angle supply stop.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 3/8" F NPT x 3/8" OD connection and a temperature range of 5 to 71 °C (40 to 160 °F). The body is made of Brass, chrome plated.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- Increases the life span of your installation, smoother opening and closing, and prevents limescale from blocking your valves.
- Ball-stem with 6 mm bore, more flow less energy loss.
- Handle with VITAQ index: ergonomic, compact and chrome plated for more endurance.
- One piece stamped body, compact and resistant.
- Double o-ring on ball-stem to secure external leak tightness.
- 100% of the valves are tested for outer and inner leakage.
Custom Pricing Available
This product requires a custom quote based on your specific requirements.
This product requires a custom quote based on your specific requirements.
Free Quote
24h Response
Expert Advice
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 214010 |
| Brand | ARCO |
| Connection | 3/8" F NPT x 3/8" OD (supplier notation: 3/8FIP-3/8OD) |
| Temperature | 5 to 71 °C (40 to 160 °F) |
| Material sleeve | Brass |
| Material nut | Brass, chrome plated |
| Material o-ring | EPDM |
| Material handle | ABS, chrome plated |
| Material ball-stem | Anti-lime polymer, VITAQ |
| Material seat | EPDM |
| Material body | Brass, chrome plated |
| Dimension A | 58 mm |
| Dimension B | 27 mm |
| Dimension C | 32 mm |
| Packaging | Individual (outer box 30 pcs) |
| Technical sheet | Download PDF |
| Certificate | Certificate IAPMO N-11792 test standard NSF/ANSI 61-2021 |
| Certificate | Certificate IAPMO 11793 test standard NSF/ANSI 372-2022 |
| Certificate | Certificate IAPMO 11779 test standard ASME A112.18.1-2018/CSA B125.1-18 |
