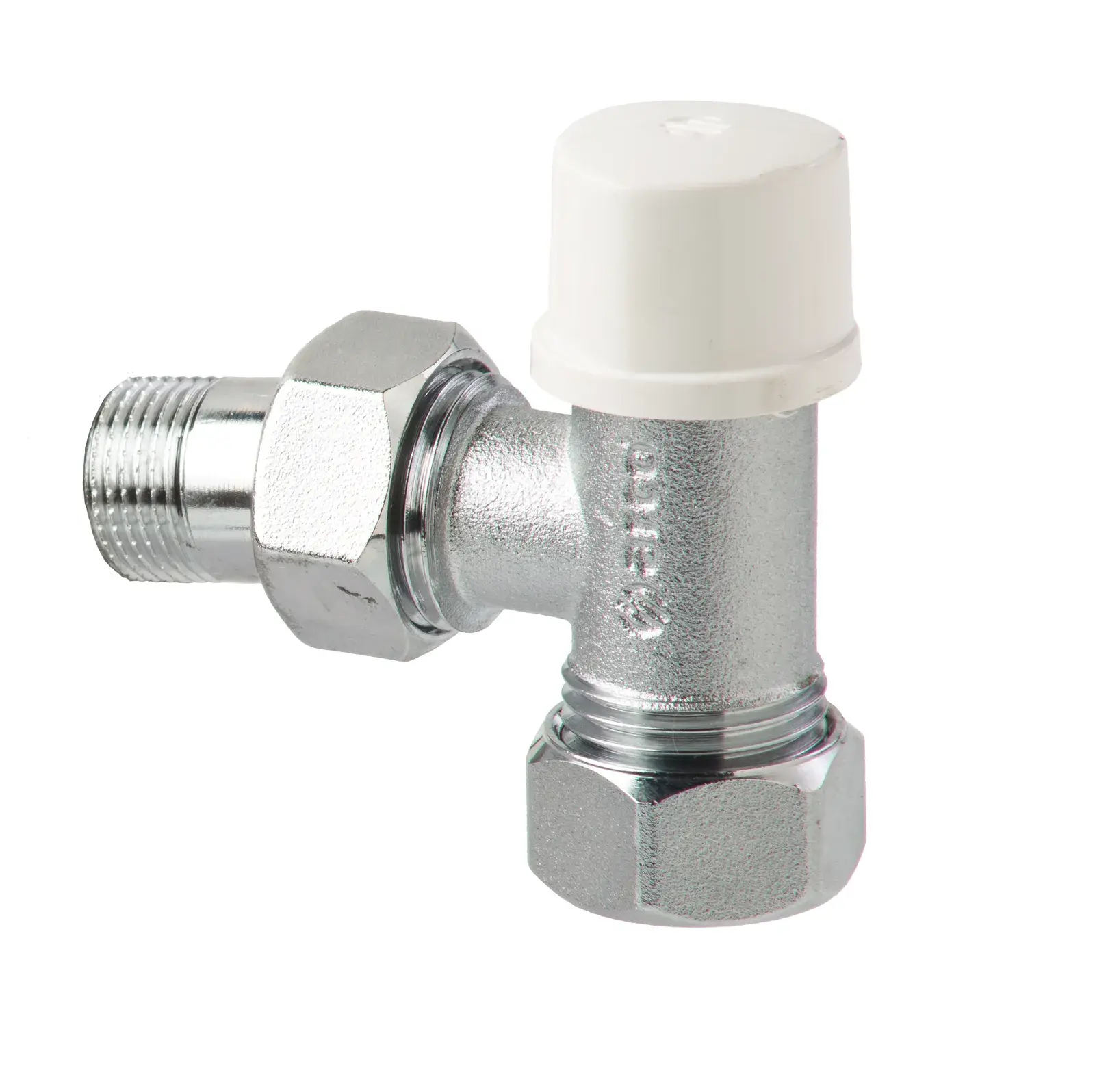

Angle lockshield Teide Plus for copper pipe 12 mm x 1/2" M 507220
The ARCO 507220 from the Teide Plus range is an angle lockshield for copper pipe. Lockshield of the TEIDE PLUS series. The lockshield is used to balance the heating system; a double EPDM O-ring on the stem ensures external tightness.
This version has a 12 mm x 1/2" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Custom Pricing Available
This product requires a custom quote based on your specific requirements.
This product requires a custom quote based on your specific requirements.
Free Quote
24h Response
Expert Advice
Returns
14-day return policy
Secure Payment
Guarantee secure payments
24/7 Dedicated Support
Anywhere & anytime
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 507220 |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 12 mm x 1/2" M (supplier notation: 12-1/2M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Dimension A | 64 mm |
| Dimension B | 30 mm |
| Dimension C | 50 mm |
| Packaging | Per piece (inner box 10 pcs, outer box 60 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
