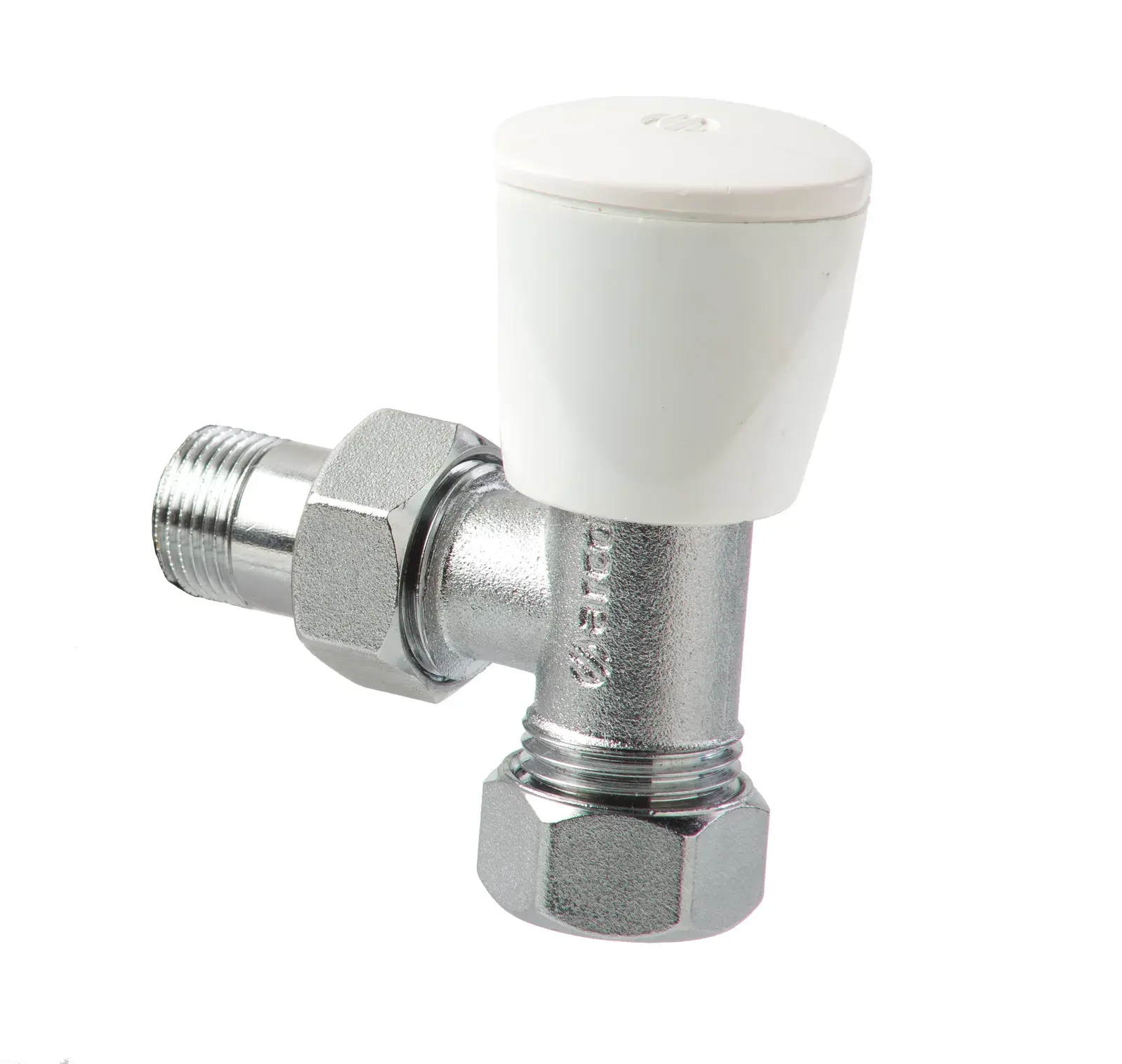

Angle radiator valve Teide Plus for copper pipe 12 mm x 3/8" M 503215
The ARCO 503215 from the Teide Plus range is an angle radiator valve for copper pipe. Manual radiator valve of the TEIDE PLUS series. The valve regulates and controls the water flow through the radiator; a double EPDM O-ring on the stem ensures external tightness.
This version has a 12 mm x 3/8" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 503215 |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 12 mm x 3/8" M (supplier notation: 12-3/8M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Dimension A | 74 mm |
| Dimension B | 29 mm |
| Dimension C | 50 mm |
| Packaging | Per piece (inner box 10 pcs, outer box 60 pcs) |
| EAN code | 8428519060728 |
| Technical sheet | Download PDF |
