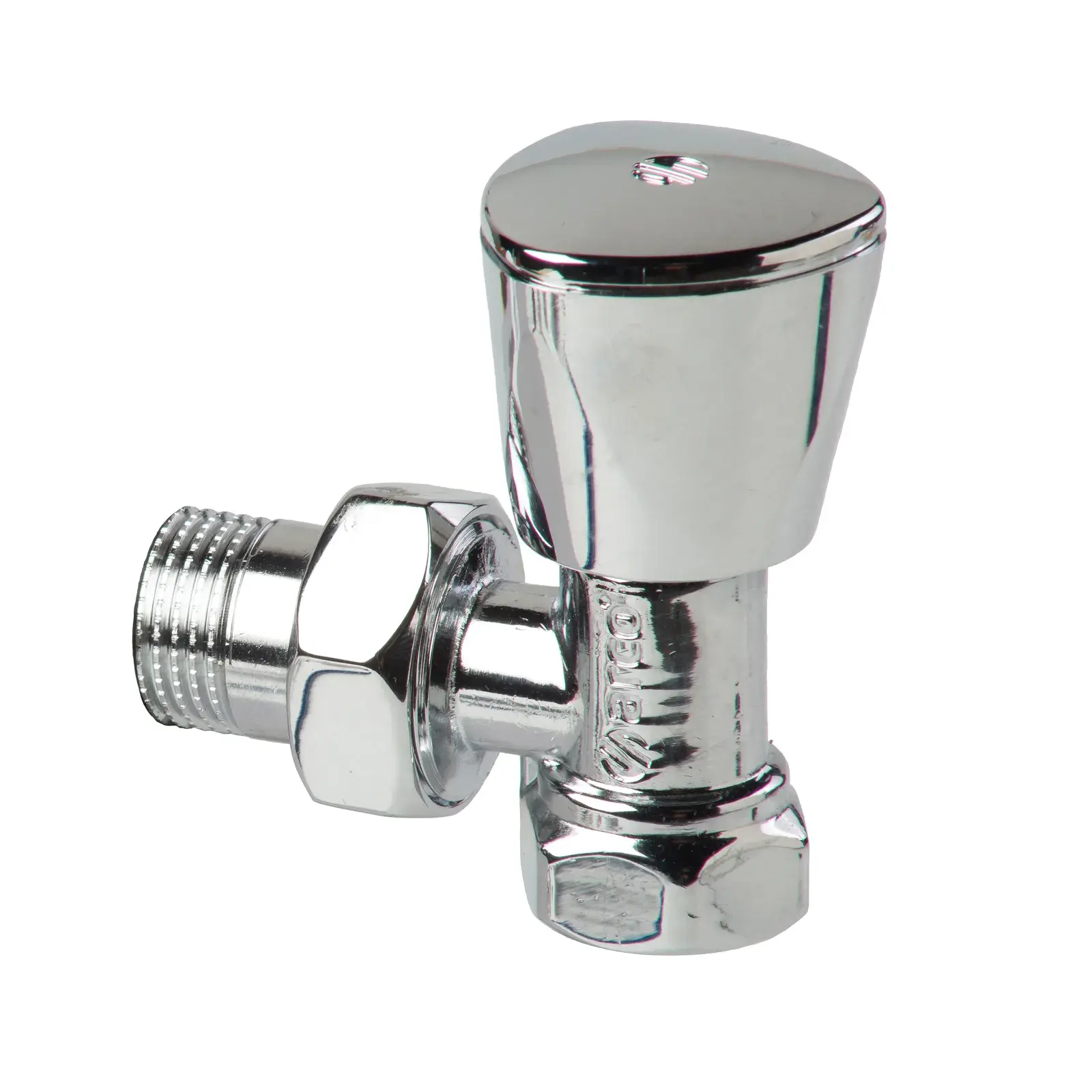

Angle radiator valve Teide Plus in extra polished chrome 1/2" F x 1/2" M 503505
The ARCO 503505 from the Teide Plus range is an angle radiator valve in extra polished chrome. Manual radiator valve of the TEIDE PLUS series. The valve regulates and controls the water flow through the radiator; a double EPDM O-ring on the stem ensures external tightness.
Good looks and functionality.
This version has a 1/2" F x 1/2" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 503505 |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 1/2" F x 1/2" M (supplier notation: 1/2F-1/2M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Dimension A | 66 mm |
| Dimension B | 21 mm |
| Dimension C | 50 mm |
| Packaging | Per piece (inner box 10 pcs, outer box 60 pcs) |
| EAN code | 8428519062203 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
