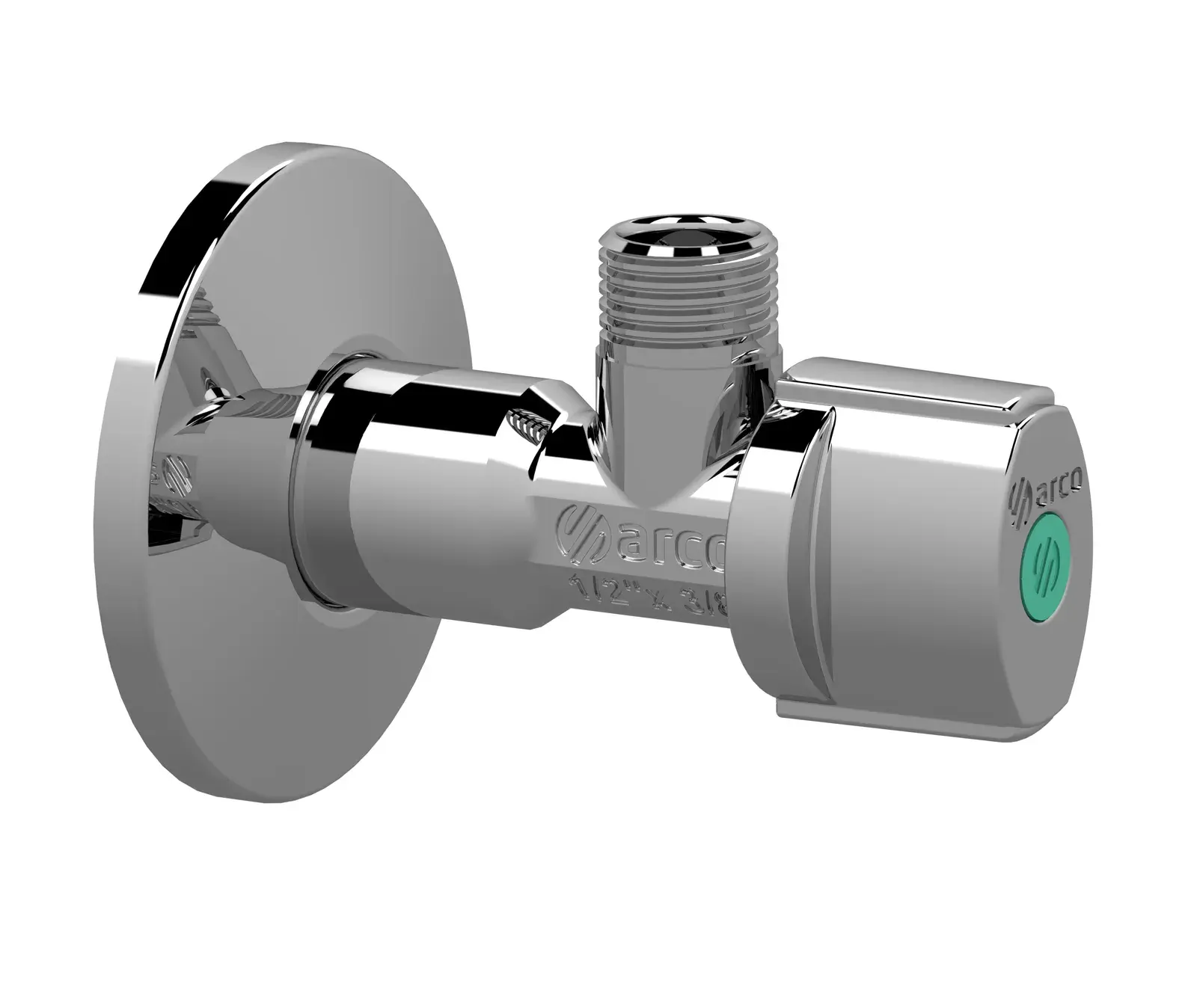

Angle valve A-80 1/2" M NPT x 1/2" M NPSM 206450
The ARCO 206450 from the A-80 range is an angle valve with a chrome-plated ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M NPT x 1/2" M NPSM connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 206450 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" M NPT x 1/2" M NPSM (supplier notation: 1/2M [NPT]-1/2M [NPSM]) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Dimension A | 80 mm |
| Dimension B | 48 mm |
| Dimension C | 27 mm |
| Packaging | Individual (outer box 84 pcs) |
| Technical sheet | Download PDF |
