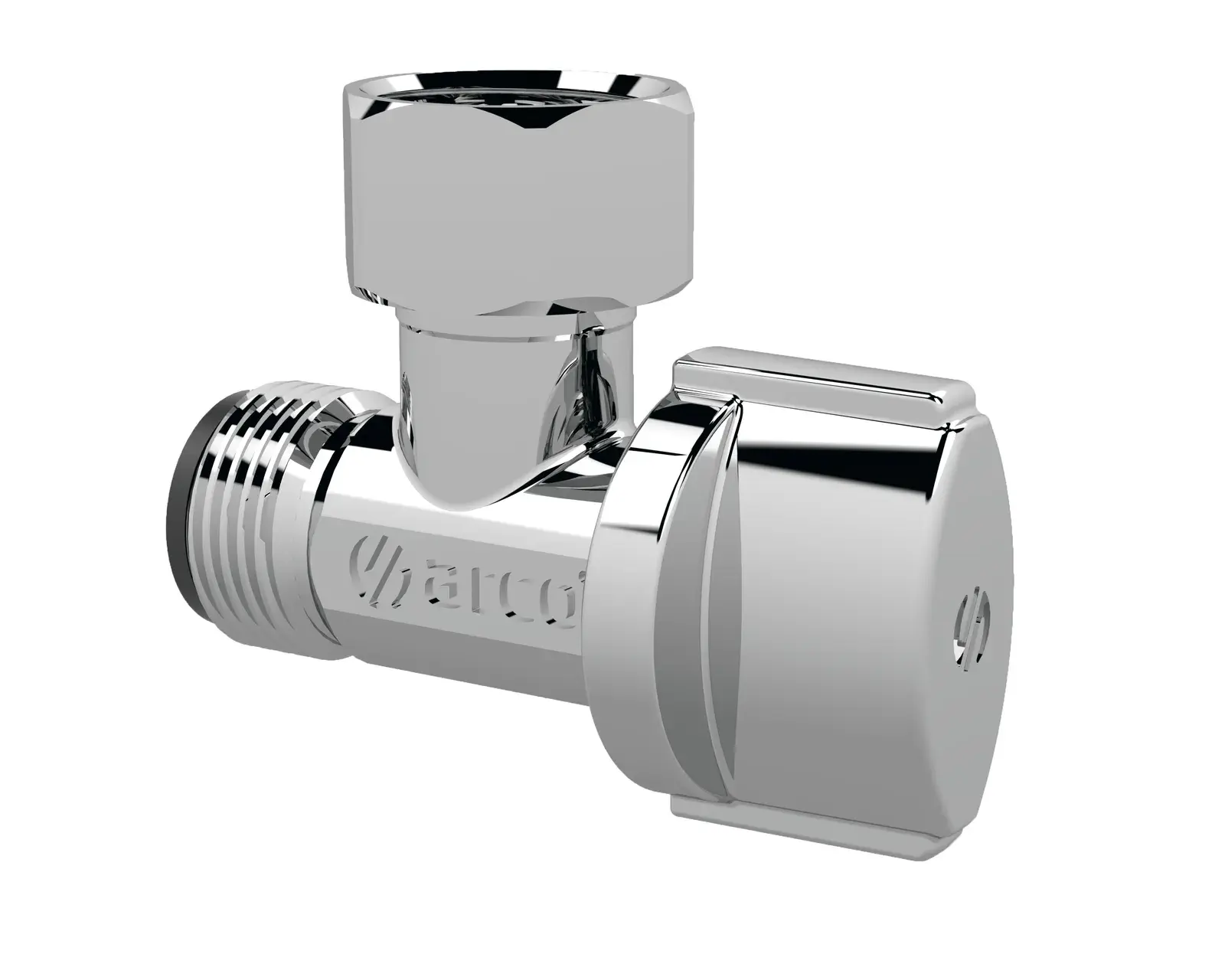

Angle valve A-80 3/8" M x 3/8" loose nut (5 pieces) NF741
The ARCO NF741 from the A-80 range is an angle valve with a chrome-plated ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation where the connection is made by threaded ends.
This version has a 3/8" M x 3/8" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a bag of 5 pieces.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Easily adjustable as it has a loose nut.
- Suitable for installations with tight space.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NF741 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 3/8" M x 3/8" loose nut (supplier notation: 3/8M-3/8LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material sleeve | PA (depending on model) |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | EPDM |
| Material stem-ball | Brass CW614N, brass color |
| Dimension A | 49 mm |
| Dimension B | 21 mm |
| Dimension C | 28 mm |
| Packaging | Bag of 5 pcs (outer box 100 pcs) |
| EAN code | 8428519044605 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
