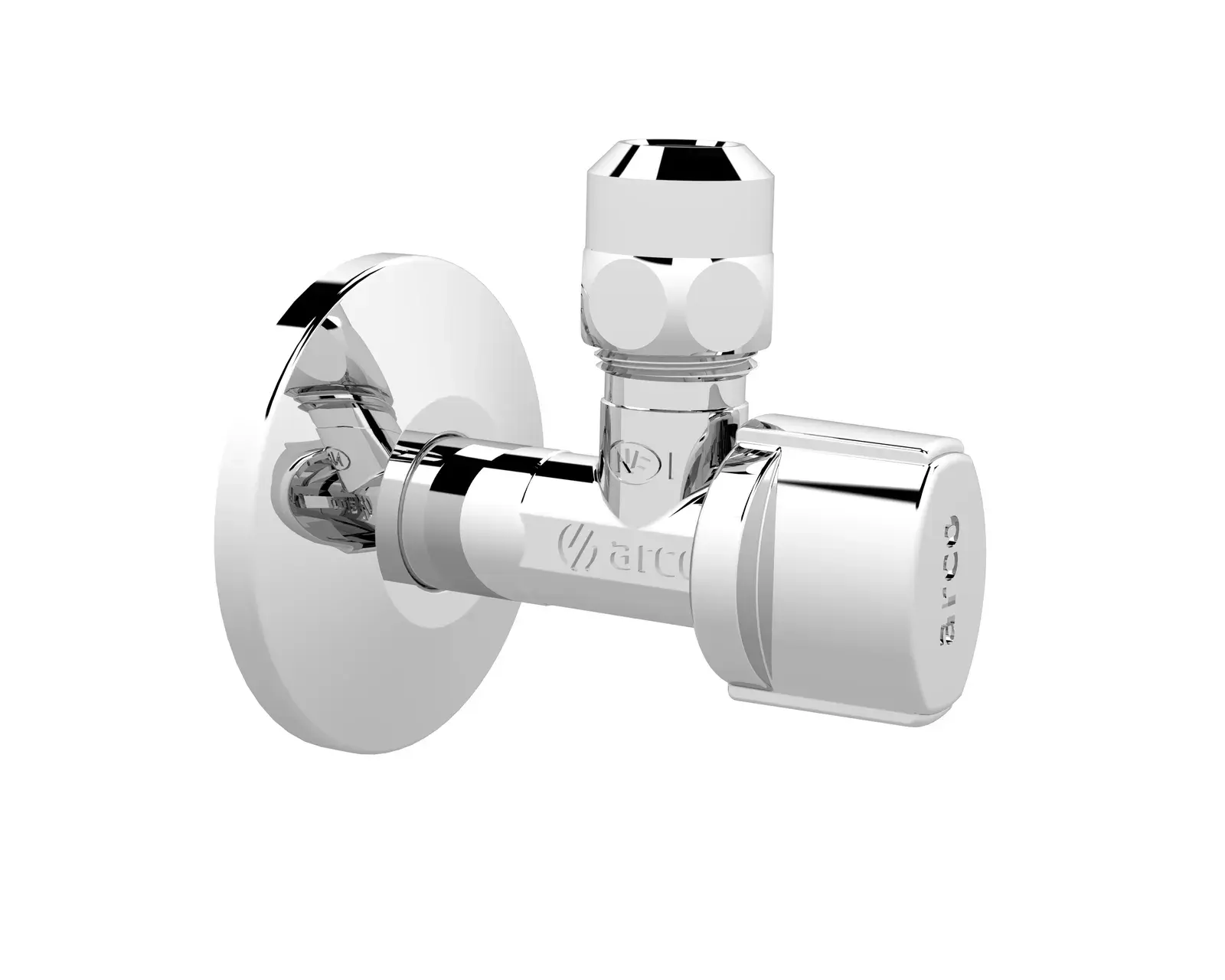

Angle valve A-80 3/8" M x 3/8" x 10 mm NO743
The ARCO NO743 from the A-80 range is an angle valve with a chrome-plated metal Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends.
Whoever tries them, repeats. The most installed angle valves in Europe.
This version has a 3/8" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of brass.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NO743 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 3/8" M x 3/8" x 10 mm (supplier notation: 3/8M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass |
| Dimension A | 80 mm |
| Dimension B | 48 mm |
| Dimension C | 41 mm |
| Packaging | Individual (outer box 84 pcs) |
| EAN code | 8428519036549 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
