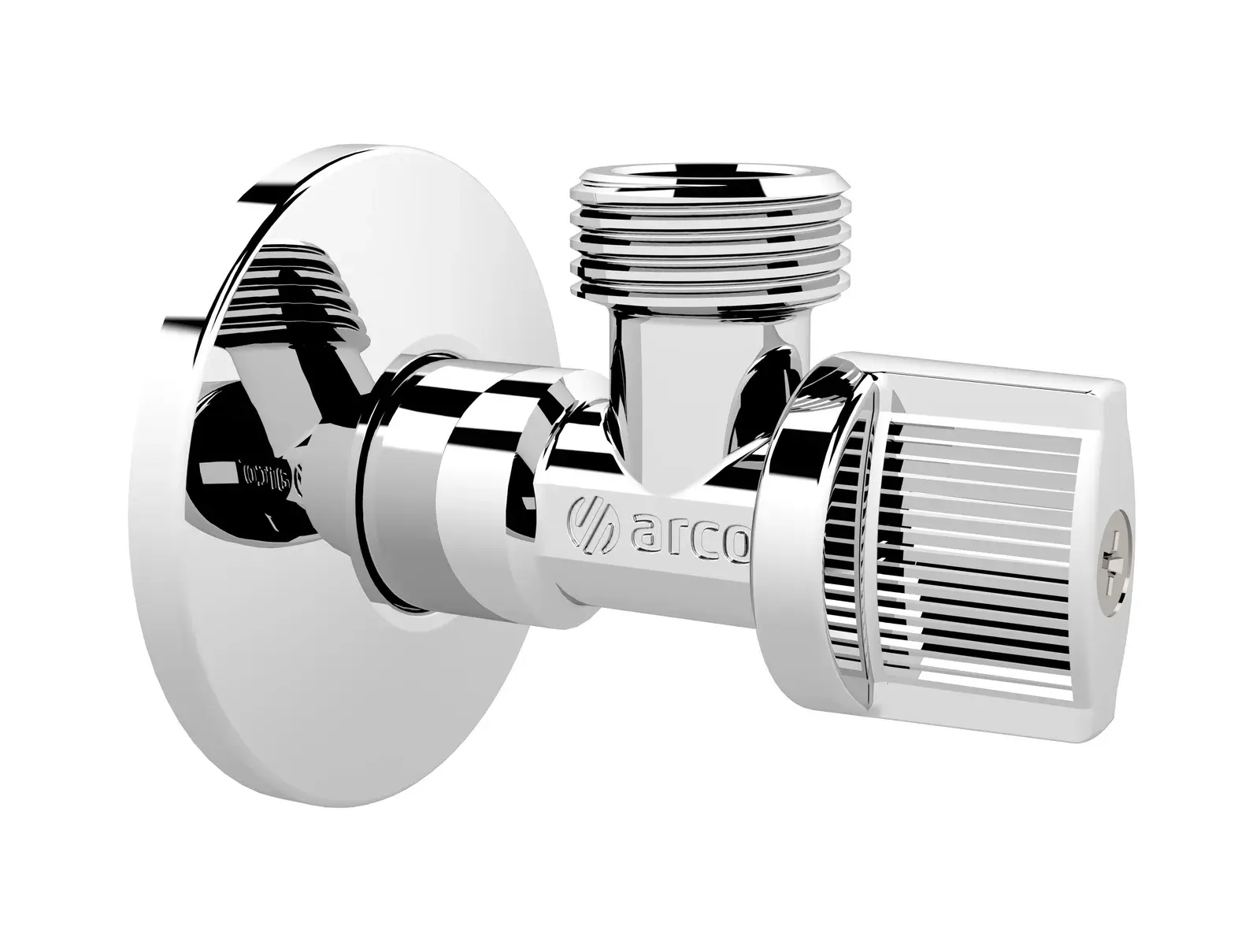

Angle valve A-80 Delta 1/2" M x 1/2" M DE755
The ARCO DE755 from the A-80 Delta range is an angle valve with a chrome-plated ABS Plus handle. Quarter-turn angle ball valves for surface mounting with manual operation where the connection is made by threaded ends.
This version has a 1/2" M x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | DE755 |
| Brand | ARCO |
| Series | A-80 Delta |
| Connection | 1/2" M x 1/2" M (supplier notation: 1/2M-1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material sleeve | PA (depending on model) |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | NBR |
| Material stem-ball | POM |
| Dimension A | 75 mm |
| Dimension B | 43 mm |
| Dimension C | 26 mm |
| Packaging | Individual (outer box 84 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 26 ACC NY 039 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519083031 |
