Angle valve A-80 Delta 1/2" M x 3/8" x 10 mm (2 pieces) DE660

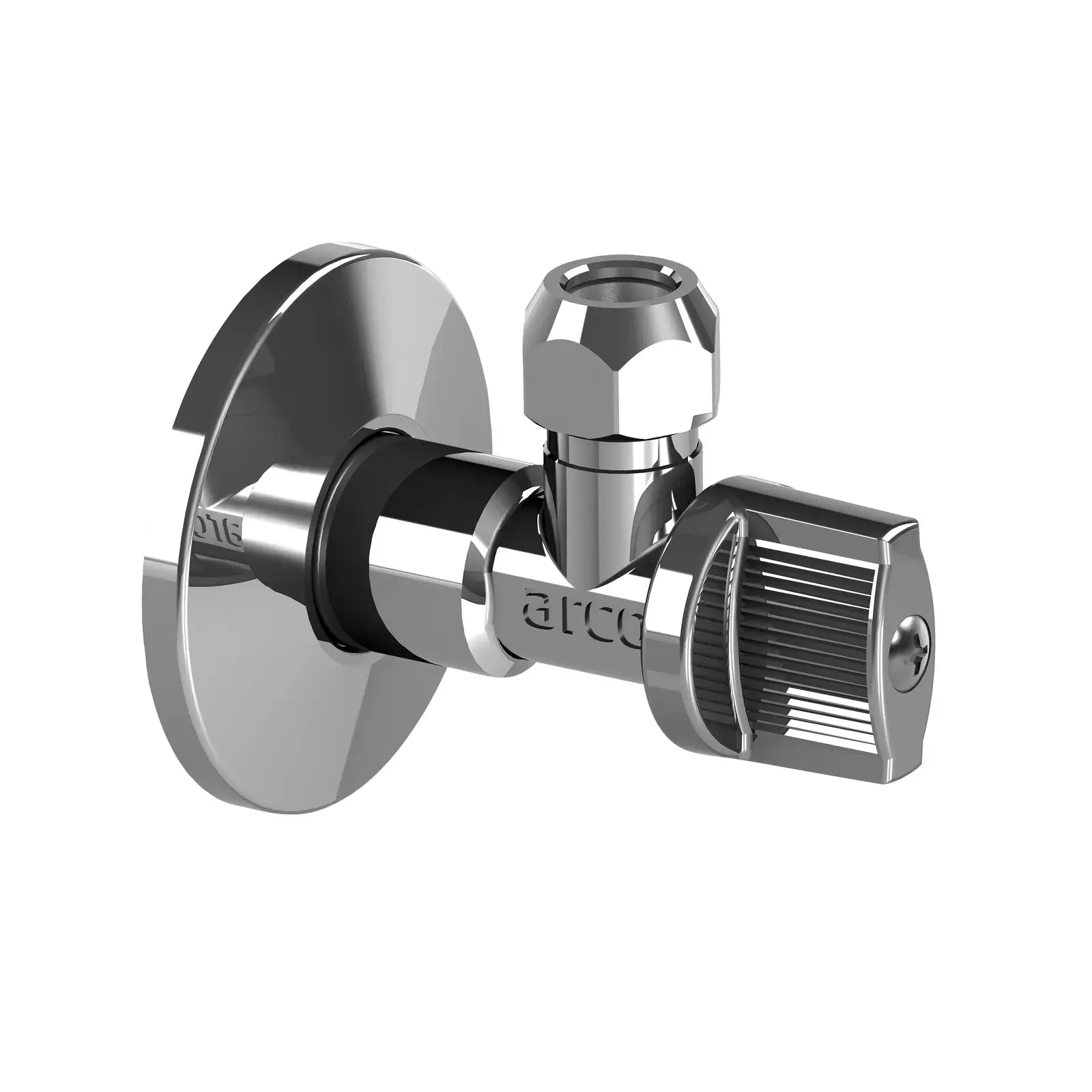

The ARCO DE660 from the A-80 Delta range is an angle valve with a chrome-plated ABS Plus handle. Quarter-turn angle ball valves for surface mounting with manual operation where the connection is made by threaded ends.
This version has a 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a pack of 2 pieces.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | DE660 |
| Brand | ARCO |
| Series | A-80 Delta |
| Connection | 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material sleeve | PA (depending on model) |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | NBR |
| Material stem-ball | POM |
| Dimension A | 75 mm |
| Dimension B | 43 mm |
| Dimension C | 32 mm |
| Packaging | Pack of 2 pcs (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 26 ACC NY 039 |
| EAN code | 8428519058305 |
