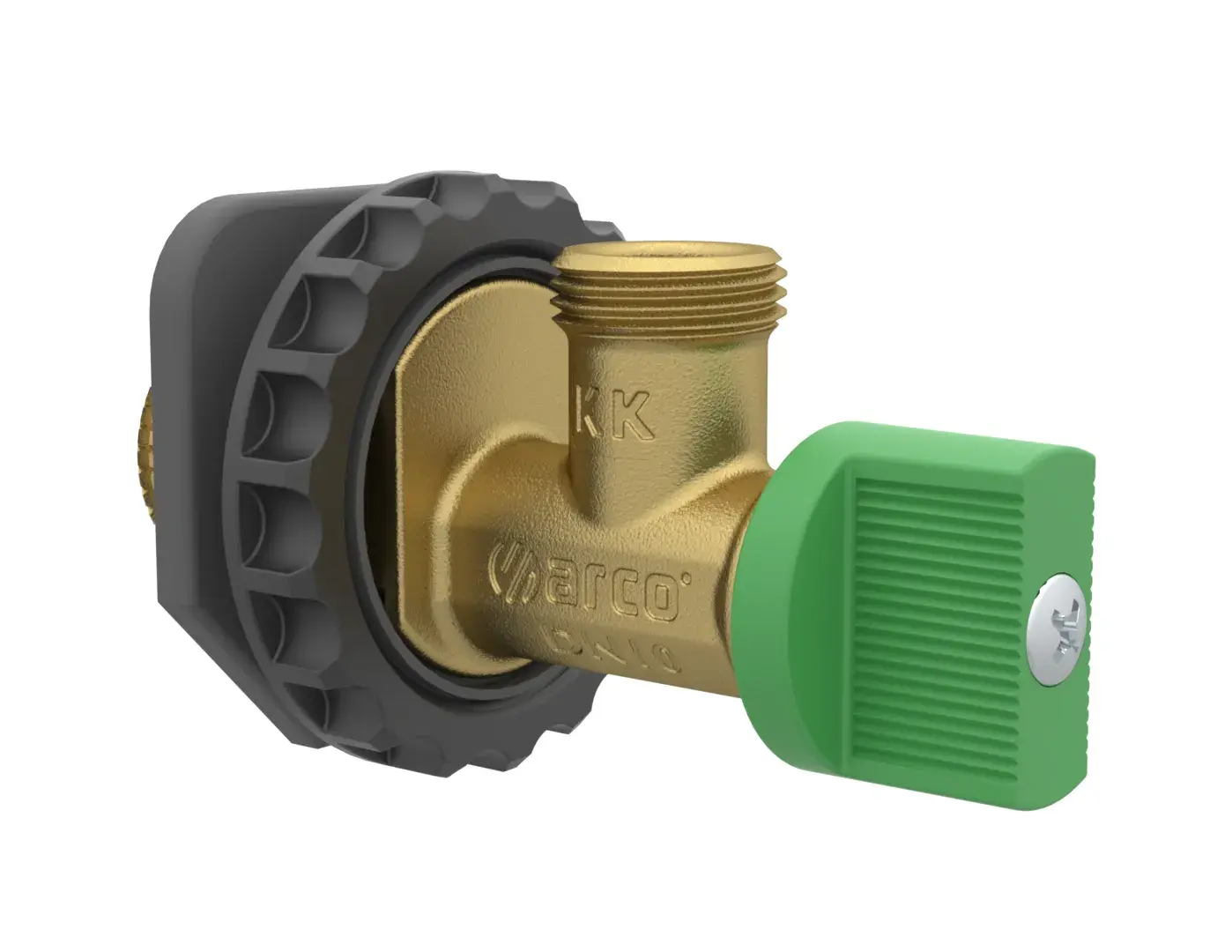

Angle valve for concealed cistern A-80 1/2" M x 3/8" M 201210
The ARCO 201210 from the A-80 range is an angle valve for concealed cistern with a green ABS Original handle. Quarter-turn angle ball valves for concealed cistern installations, with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-lime system and 1/4 turn. Ideal for built-in cisterns.
This version has a 1/2" M x 3/8" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, brass.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- Includes adapter and nut for fixing to the cistern.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-rings.
Application
Designed for plumbing installations of concealed cisterns, allowing the water supply to be shut off.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 201210 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" M x 3/8" M (supplier notation: 1/2M-3/8M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, brass |
| Material seat | EPDM |
| Material o-rings | EPDM |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material handle | POM, green |
| Dimension A | 77 mm |
| Dimension B | 58 mm |
| Dimension C | 23 mm |
| Dimension D | 27 mm |
| Dimension E | 5 mm |
| Packaging | Supplier packaging: inner box 30 pcs, outer box 60 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Acoustic certificate PAI-IX 047/IA |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | Certificate KIWA K20141/08 stop and connecting cocks |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| Certificate | Certificate WRAS Water fittings 2109349 |
| EAN code | 8428519059692 |
