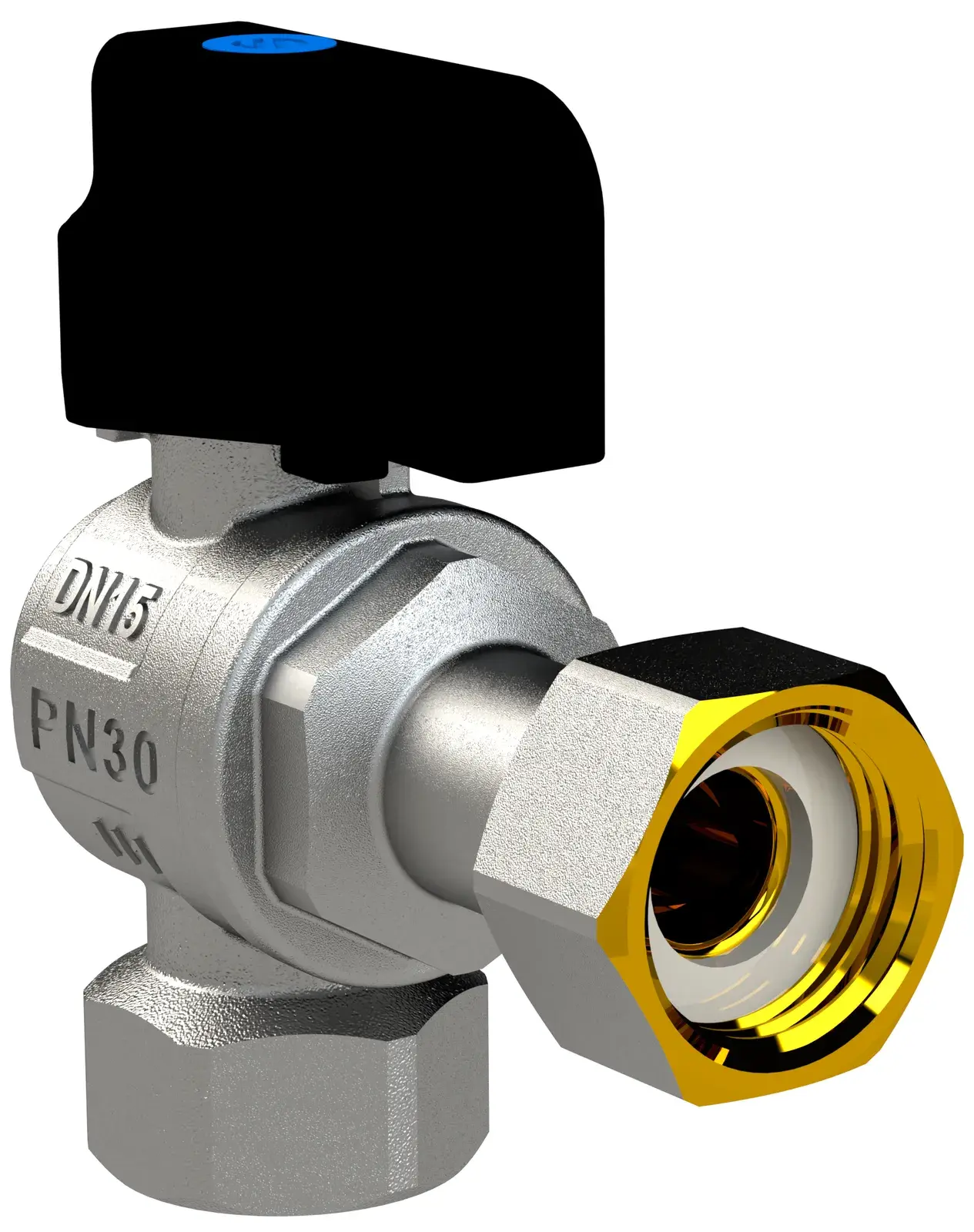

Angle valve Sena 3/4" F x 3/4" loose nut 150804
The ARCO 150804 from the Sena range is an angle valve with a black compact handle. Ball valves with manual operation. They have a loose nut connection and compact handle, to facilitate their installation in tight spaces or places with difficult access.
This version has a 3/4" F x 3/4" loose nut connection, a maximum working pressure of PN 30 bar and a temperature range of -20 to 120 °C. The body is made of brass.
Features
- Reinforced compact handle, ideal for tight spaces. Its shape allows manual operation or with a 27 mm fixed wrench.
- Blocking system with solid handle stopper.
- Red and blue index, distinguish between hot and cold water.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Nickel-free water passage for greater healthiness.
- Male or female connections, as well as straight or angle valve configuration.
- Female loose nut with flat fibre joint ensures tightness and makes installation easier.
Application
Specially designed for gas boiler installations for heating, DHW or mixed.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 150804 |
| Brand | ARCO |
| Series | Sena |
| Connection | 3/4" F x 3/4" loose nut (supplier notation: 3/4F-3/4LN) |
| Max. pressure | PN 30 bar |
| Temperature | -20 to 120 °C |
| Material body | Brass |
| Dimension A | 45 mm |
| Dimension B | 36 mm |
| Dimension C | 82 mm |
| Packaging | Supplier packaging: inner box 15 pcs, outer box 30 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 23 ACC NY 006 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
| EAN code | 8428519081341 |
