Angle valve Sil MLA 25 mm x 3/4" loose nut 146230

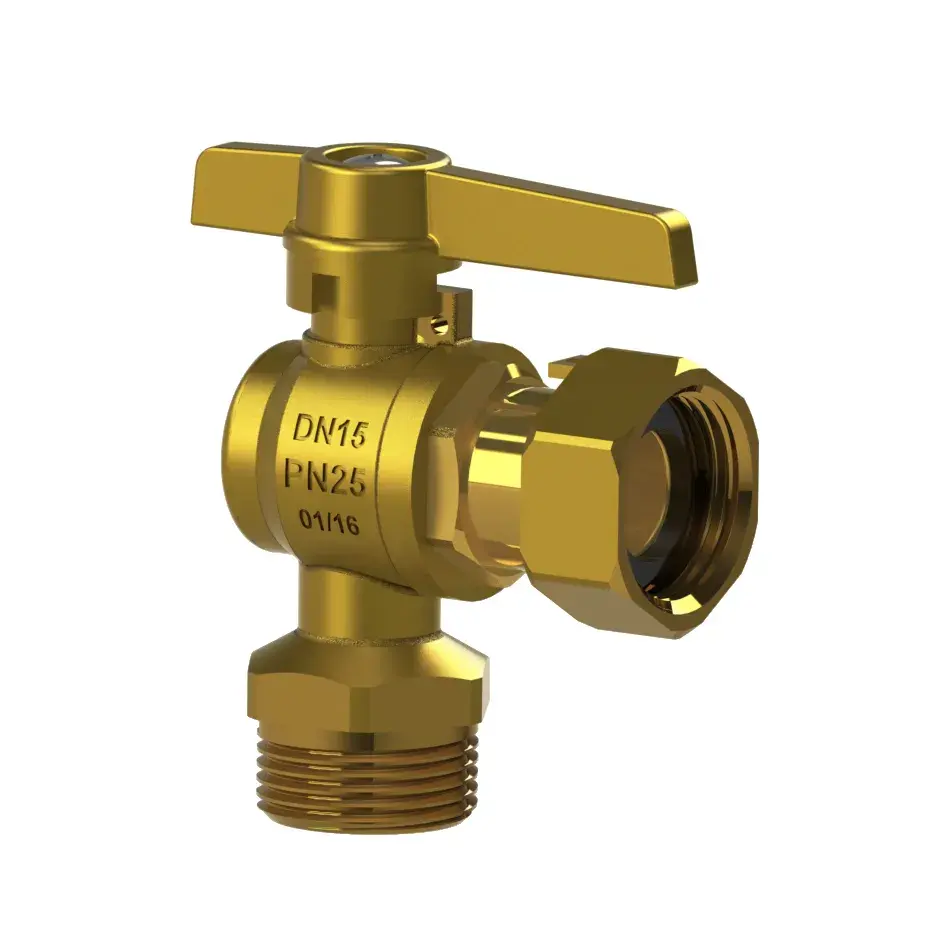

The ARCO 146230 from the Sil MLA range is an angle valve with a brass long butterfly handle. Angle and straight ball valves with manual operation for meter and service connection installations. This series has various models to connect to the network by means of male thread, female thread and compression connection to polyethylene (PE) pipe.
This version has a 25 mm x 3/4" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 65 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Nickel-free water passage for greater healthiness.
- 100% valves are tested for inner leakage.
- Handle made entirely of brass.
- Strong construction and safe installations.
- Models with straight and angle configuration.
Application
Specially designed for water networks, drinking water connections and meter installations.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 146230 |
| Brand | ARCO |
| Series | Sil MLA |
| Connection | 25 mm x 3/4" loose nut (supplier notation: 25-3/4LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 65 °C |
| Material body | Brass CW617N, brass color |
| Dimension A | 66 mm |
| Dimension B | 70 mm |
| Dimension C | 90 mm |
| Packaging | Supplier packaging: inner box 15 pcs, outer box 30 pcs |
| EAN code | 8428519070192 |
| Technical sheet | Download PDF |
