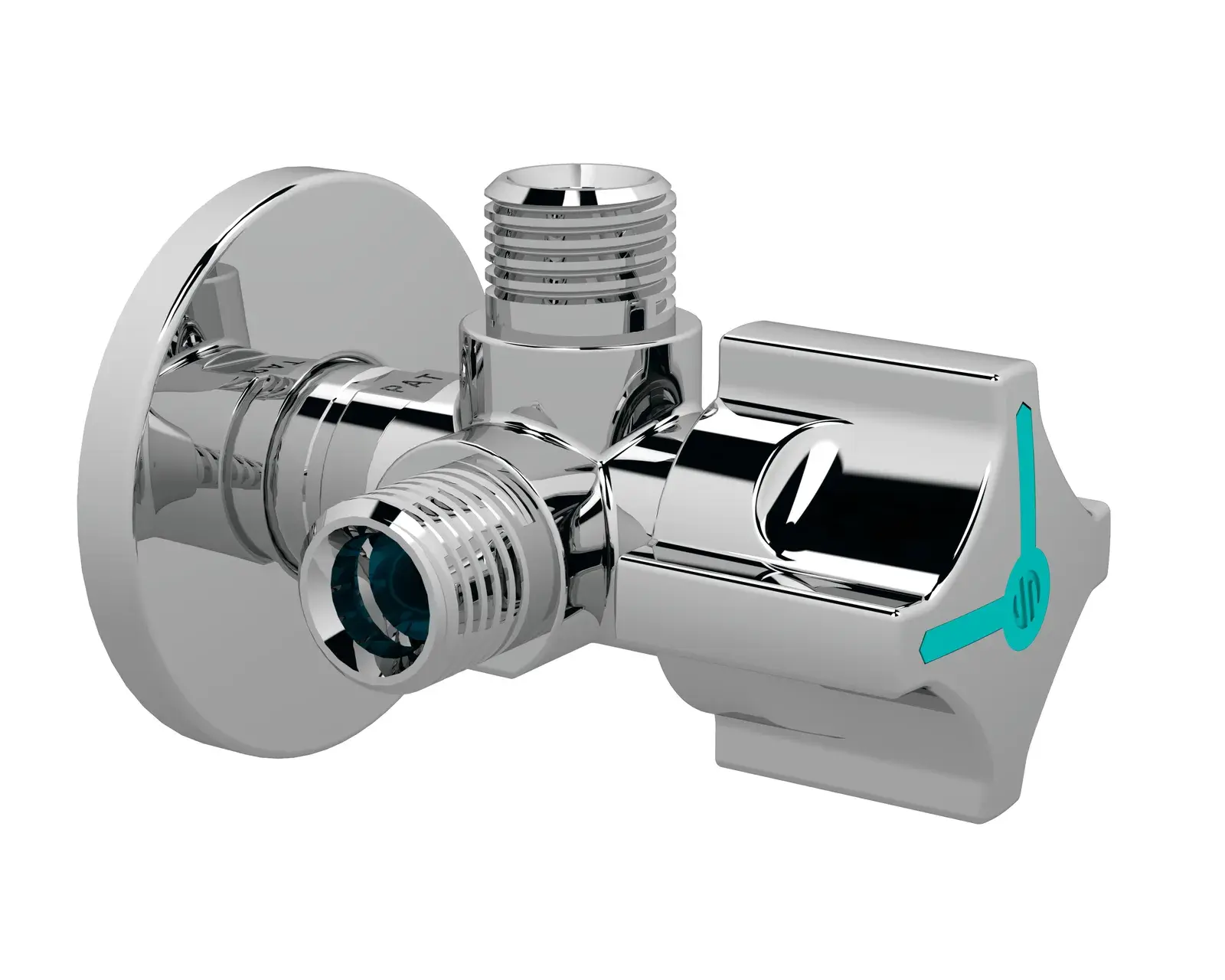

Angle valve with chrome handle A-80 Twin 1/2" M x 1/2" M x 1/2" M CQ410501
The ARCO CQ410501 from the A-80 Twin range is an angle valve with a chrome-plated ABS handle. Quarter-turn angle ball valves with manual operation, one inlet and two independent outlets in a single body, for surface mounting. These valves allow the water supply to be cut off independently to each of the elements connected to their outlets. They provide the following advantages over traditional installations: The VITAQ system increases the valve life span and flow comfort in hard water areas.
Worldwide success: with a single handle you control the 2 outputs independently.
This version has a 1/2" M x 1/2" M x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- Two independent outlets in one compact valve.
- A single handle for 4 different positions.
- Each position is marked with a "click" sound.
- The handle allows clockwise or counterclockwise rotation.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
- More than 80% reduction in installation time.
- Reduction in the number of accessories.
- Reduction of installation space.
- Increased installation reliability.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
These valves are applicable to both new and existing installations.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | CQ410501 |
| Brand | ARCO |
| Series | A-80 Twin |
| Connection | 1/2" M x 1/2" M x 1/2" M (supplier notation: 1/2M-1/2M X 1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel, chrome plated |
| Material seat | EPDM |
| Material handle | ABS + PC, chrome plated |
| Material o-ring | EPDM |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Dimension A | 93 mm |
| Dimension B | 50 mm |
| Dimension C | 30 mm |
| Packaging | Individual (outer box 42 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
