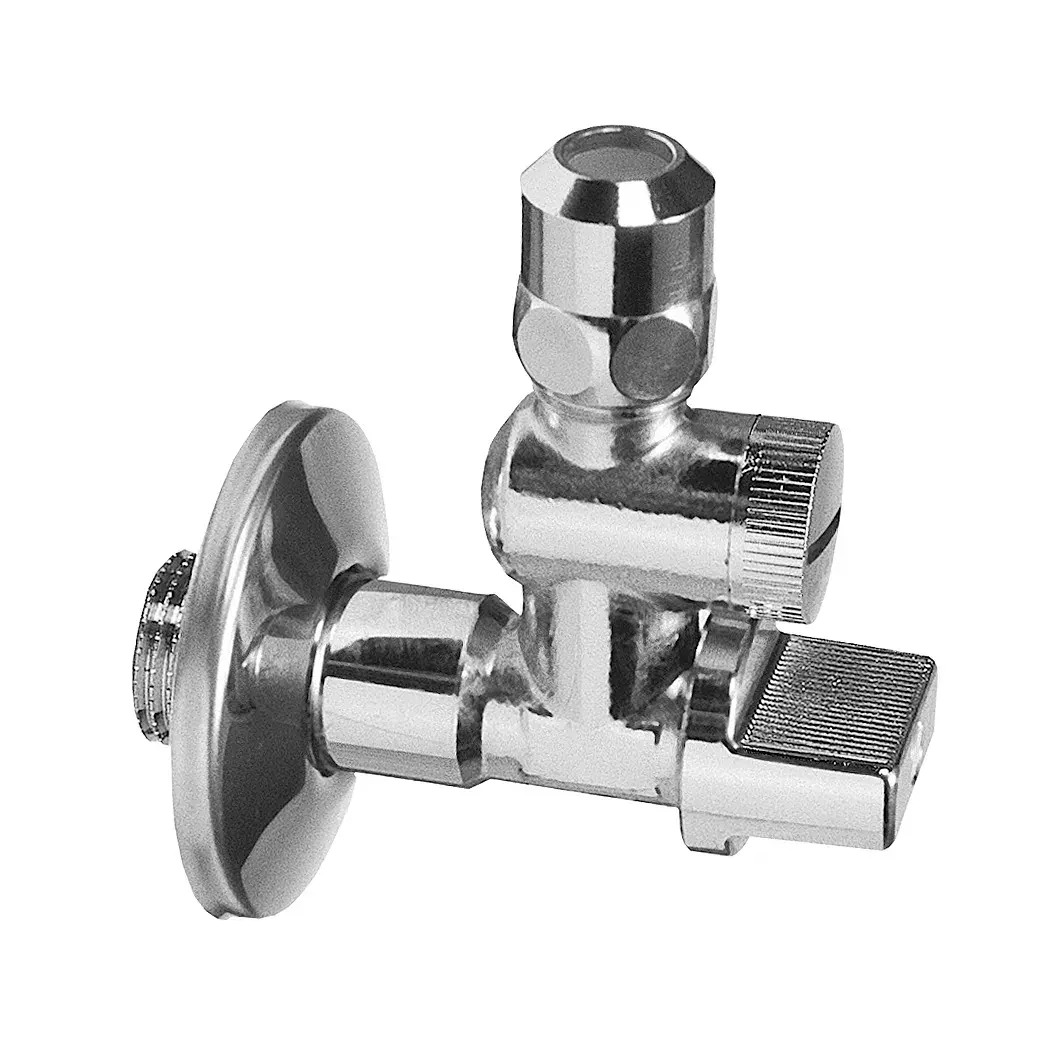

Angle valve with filter A-80 Filter 1/2" M x 3/8" x 10 mm 00735
The ARCO 00735 from the A-80 Filter range is an angle valve with filter and a chrome-plated ABS Original handle. Quarter-turn angle ball valves with built-in filter for surface mounting with manual operation where the connection is made by threaded ends. These valves are especially suitable for preventing the entry of small solids and other impurities, protecting elements of the installation.
This version has a 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Built-in filter to prevent small solids from entering the faucet.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00735 |
| Brand | ARCO |
| Series | A-80 Filter |
| Connection | 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material seat | NBR |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material sleeve | PA (depending on model) |
| Material filter | POM |
| Material o-ring | EPDM |
| Material handle | ABS, chrome plated |
| Material o-rings | EPDM |
| Material stem-ball | Brass CW614N, brass color |
| Dimension A | 80 mm |
| Dimension B | 48 mm |
| Dimension C | 61 mm |
| Packaging | Individual (outer box 50 pcs) |
| EAN code | 8428519002711 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
