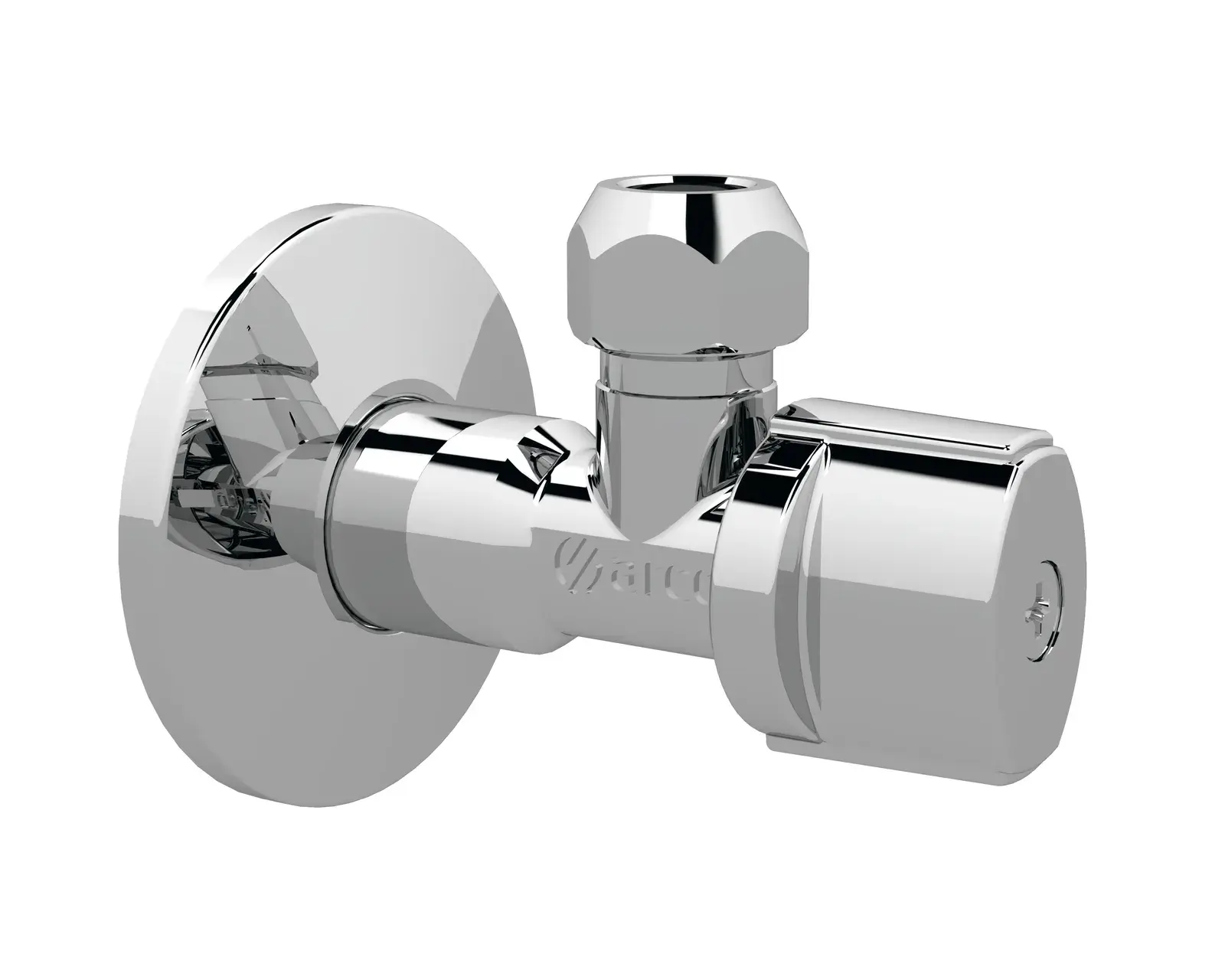

Angle valve with metal Nova handle A-80 1/2" M x 3/8" x 10 mm (2 pieces) NOV75MAC
The ARCO NOV75MAC from the A-80 range is an angle valve with a chrome-plated metal Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This item is supplied in a pack of 2 pieces.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NOV75MAC |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material rosette | Stainless steel |
| Material nut | Brass CW614N, chrome plated |
| Material sleeve | PA |
| Material seat | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Material o-rings | NBR |
| Material handle | Zamak, chrome plated |
| Dimension A | 80 mm |
| Dimension B | 48 mm |
| Dimension C | 32 mm |
| Packaging | Pack of 2 pcs (outer box 100 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1177.2023 |
| EAN code | 8428519036617 |
