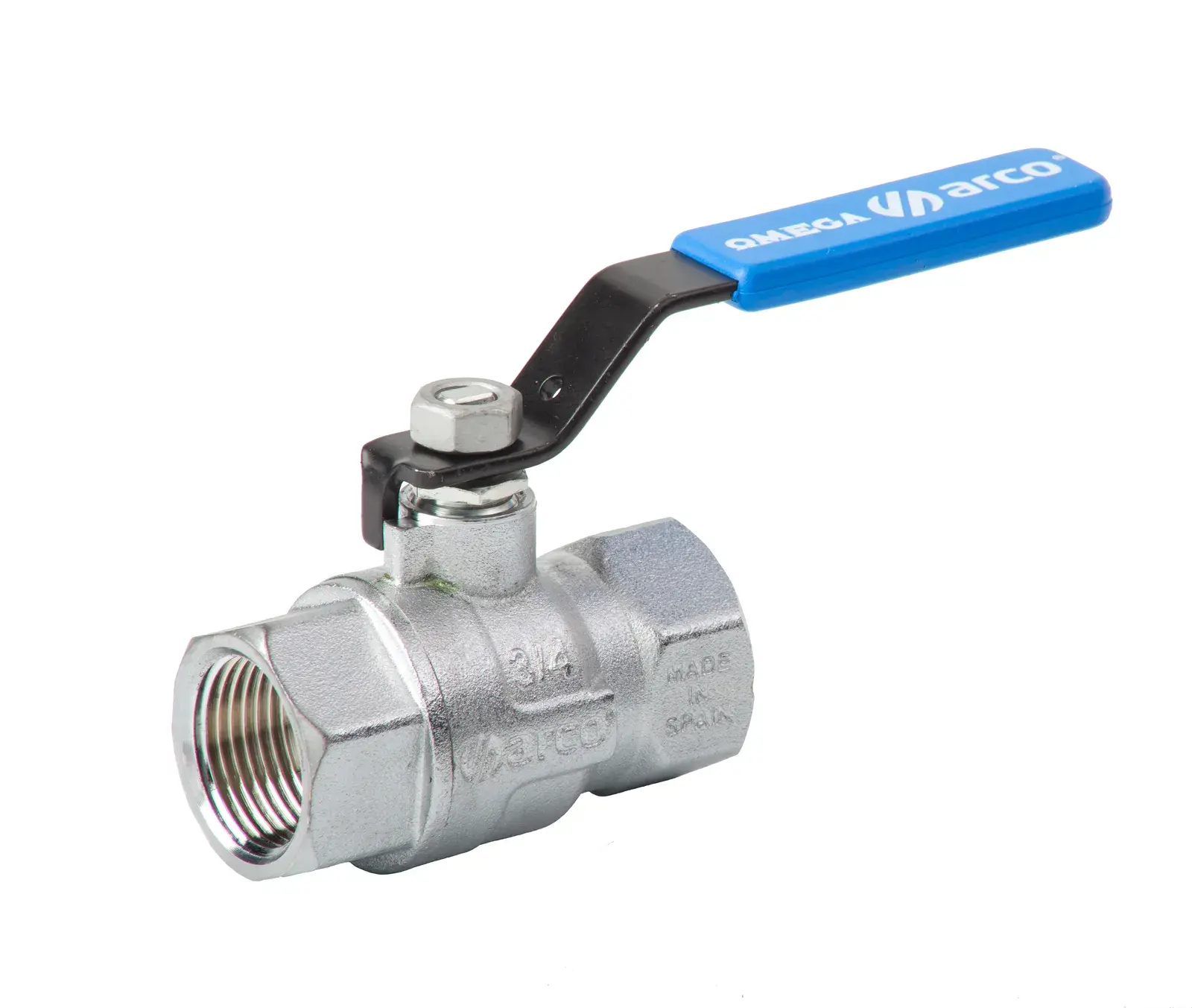

Ball valve Tajo Omega 1/4" F x 1/4" F NPT N0201
The ARCO N0201 from the Tajo Omega range is a ball valve with a lever handle with blue cover. Quarter-turn ball valves with manual operation, connected to the pipe by threaded ends.
This version has a 1/4" F x 1/4" F NPT connection, a maximum working pressure of PN 50 bar and a temperature range of -20 to 140 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Maximum thread length for demanding installations.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | N0201 |
| Brand | ARCO |
| Series | Tajo Omega |
| Connection | 1/4" F x 1/4" F NPT (supplier notation: 1/4F-1/4F [NPT]) |
| Max. pressure | PN 50 bar |
| Temperature | -20 to 140 °C |
| Material ball | Brass CW617N, chrome plated |
| Material nut | Stainless steel |
| Material stem | Brass CW614N, zinc plated |
| Material body | Brass CW617N, chrome plated |
| Material lever | Steel, black Epoxy |
| Material cover | LDPE, blue |
| Material seat | PTFE |
| Dimension A | 44 mm |
| Dimension B | 70 mm |
| Dimension C | 40 mm |
| Packaging | Supplier packaging: inner box 10 pcs, outer box 60 pcs |
| Technical sheet | Download PDF |
