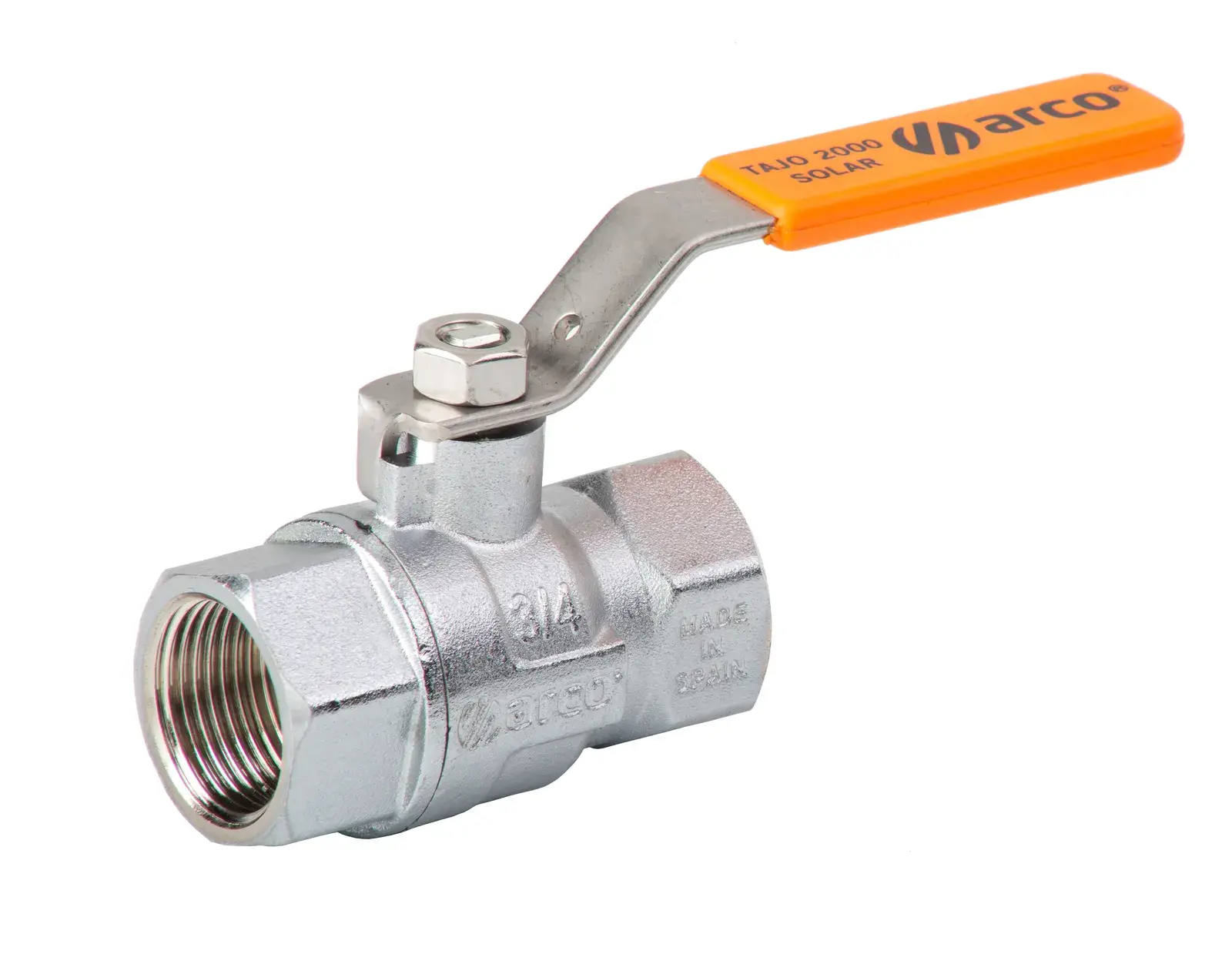

Ball valve Tajo Solar 1 1/4" F x 1 1/4" F SL1115
The ARCO SL1115 from the Tajo Solar range is a ball valve with a stainless steel lever handle with orange cover. Quarter-turn ball valves with manual operation, connected to the pipe by threaded ends.
Probably the only ball valve that can withstand 200 °C peaks.
This version has a 1 1/4" F x 1 1/4" F connection, a maximum working pressure of PN 10 bar and a temperature range of -20 to 200 °C. The body is made of Brass CW617N, chrome plated.
Features
- Continuous operation at high temperatures (up to 200 °C).
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Maximum thread length for demanding installations.
- Models with connections for soldering to copper pipes.
Application
Specially designed for heating, DHW or mixed installations where continuous operation at high temperatures (up to 200 °C) is required.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | SL1115 |
| Brand | ARCO |
| Series | Tajo Solar |
| Connection | 1 1/4" F x 1 1/4" F (supplier notation: 1 1/4F-1 1/4F) |
| Max. pressure | PN 10 bar |
| Temperature | -20 to 200 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 89 mm |
| Dimension B | 113 mm |
| Dimension C | 67 mm |
| Packaging | Supplier packaging: inner box 6 pcs, outer box 12 pcs |
| EAN code | 8428519048597 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
