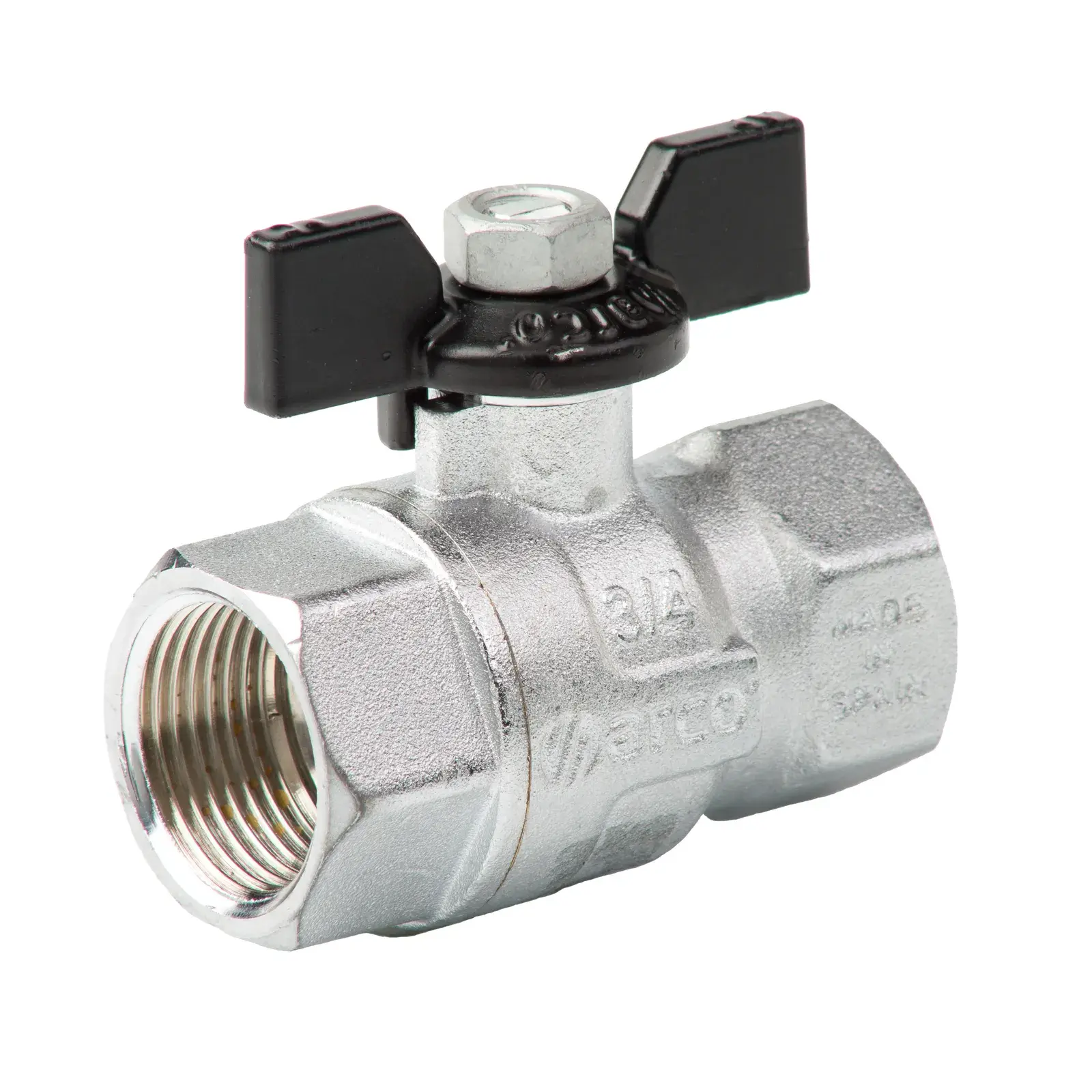

Ball valve with black butterfly handle Tajo 2000 3/4" F x 3/4" F 01114
The ARCO 01114 from the Tajo 2000 range is a ball valve with a black butterfly handle. Quarter-turn ball valves with manual operation. They are connected to the pipe by means of threaded ends or by welding for copper pipes.
This version has a 3/4" F x 3/4" F connection, a maximum working pressure of PN 50 bar and a temperature range of -20 to 140 °C. The body is made of brass.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Maximum thread length for demanding installations.
- Models with connections for welding to copper pipes.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 01114 |
| Brand | ARCO |
| Series | Tajo 2000 |
| Connection | 3/4" F x 3/4" F (supplier notation: 3/4F-3/4F) |
| Max. pressure | PN 50 bar |
| Temperature | -20 to 140 °C |
| Material body | Brass |
| Dimension A | 66 mm |
| Dimension B | 56 mm |
| Dimension C | 43 mm |
| Packaging | Supplier packaging: inner box 20 pcs, outer box 40 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 23 ACC NY 006 |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
| EAN code | 8428519003800 |
