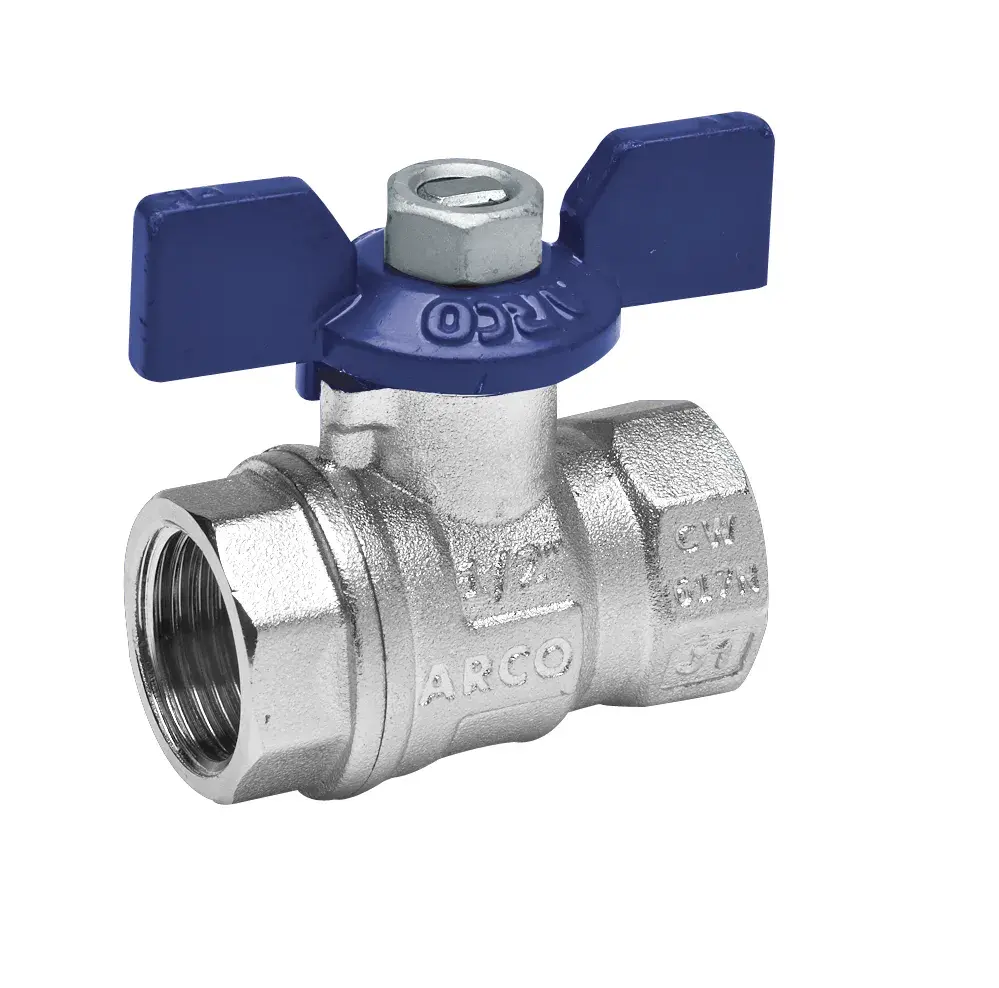

Ball valve with blue butterfly handle Turia 1/2" F x 1/2" F NPT 01206NB
The ARCO 01206NB from the Turia range is a ball valve with a blue butterfly handle. Quarter-turn ball valves with manual operation, with male, female and loose nut connections.
This version has a 1/2" F x 1/2" F NPT connection, a maximum working pressure of PN 40 bar and a temperature range of -20 to 140 °C. The body is made of Brass CW617N, chrome plated.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Lever handle with Black Epoxy protection.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 01206NB |
| Brand | ARCO |
| Series | Turia |
| Connection | 1/2" F x 1/2" F NPT (supplier notation: 1/2F-1/2F [NPT]) |
| Max. pressure | PN 40 bar |
| Temperature | -20 to 140 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 48 mm |
| Dimension B | 56 mm |
| Dimension C | 39 mm |
| Packaging | Supplier packaging: inner box 25 pcs, outer box 50 pcs |
| Technical sheet | Download PDF |
