Ball valve with green lever handle Tajo 2000 2 1/2" F x 2 1/2" F 00011AC

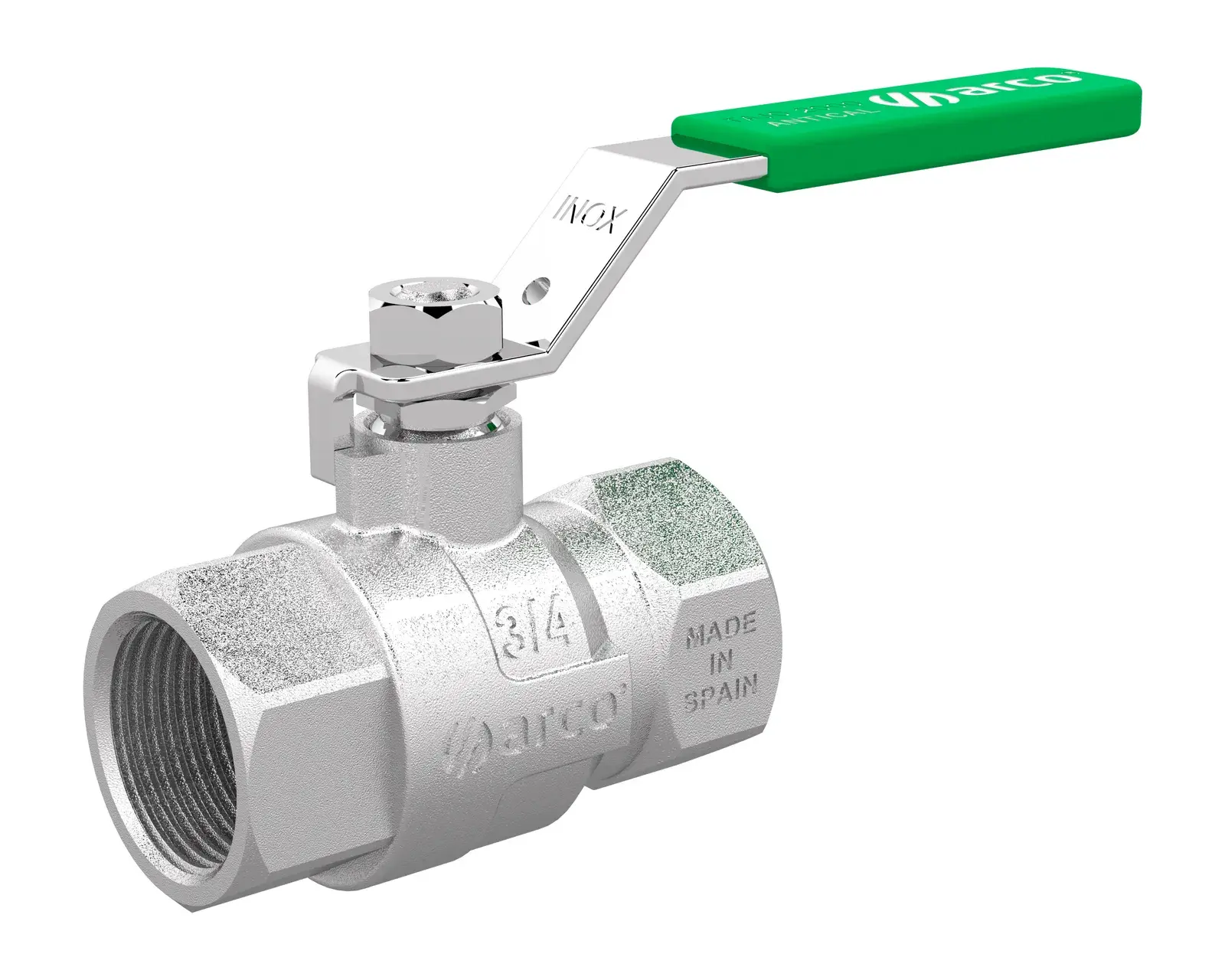

The ARCO 00011AC from the Tajo 2000 range is a ball valve with a stainless steel lever handle with green cover. Quarter turn ball valves with manual operation where the connection is made by threaded ends. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 2 1/2" F x 2 1/2" F connection, a maximum working pressure of PN 50 bar and a temperature range of -20 to 140 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
- Maximum thread length for demanding installations.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
And in general, all those applications that require a valve capable of shutting off the supply of a fluid, guaranteeing tightness in accordance with the specified service conditions.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00011AC |
| Brand | ARCO |
| Series | Tajo 2000 |
| Connection | 2 1/2" F x 2 1/2" F (supplier notation: 2 1/2F-2 1/2F) |
| Max. pressure | PN 50 bar |
| Temperature | -20 to 140 °C |
| Material ball | Brass CW617N, VITAQ |
| Material nut | Stainless steel |
| Material stem | Brass CW614N, zinc plated |
| Material body | Brass CW617N, chrome plated |
| Material lever | Stainless steel |
| Material cover | LDPE, green |
| Material seat | PTFE |
| Dimension A | 150 mm |
| Dimension B | 173 mm |
| Dimension C | 90 mm |
| Packaging | Supplier packaging: inner box 2 pcs, outer box 4 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
| EAN code | 8428519040492 |
