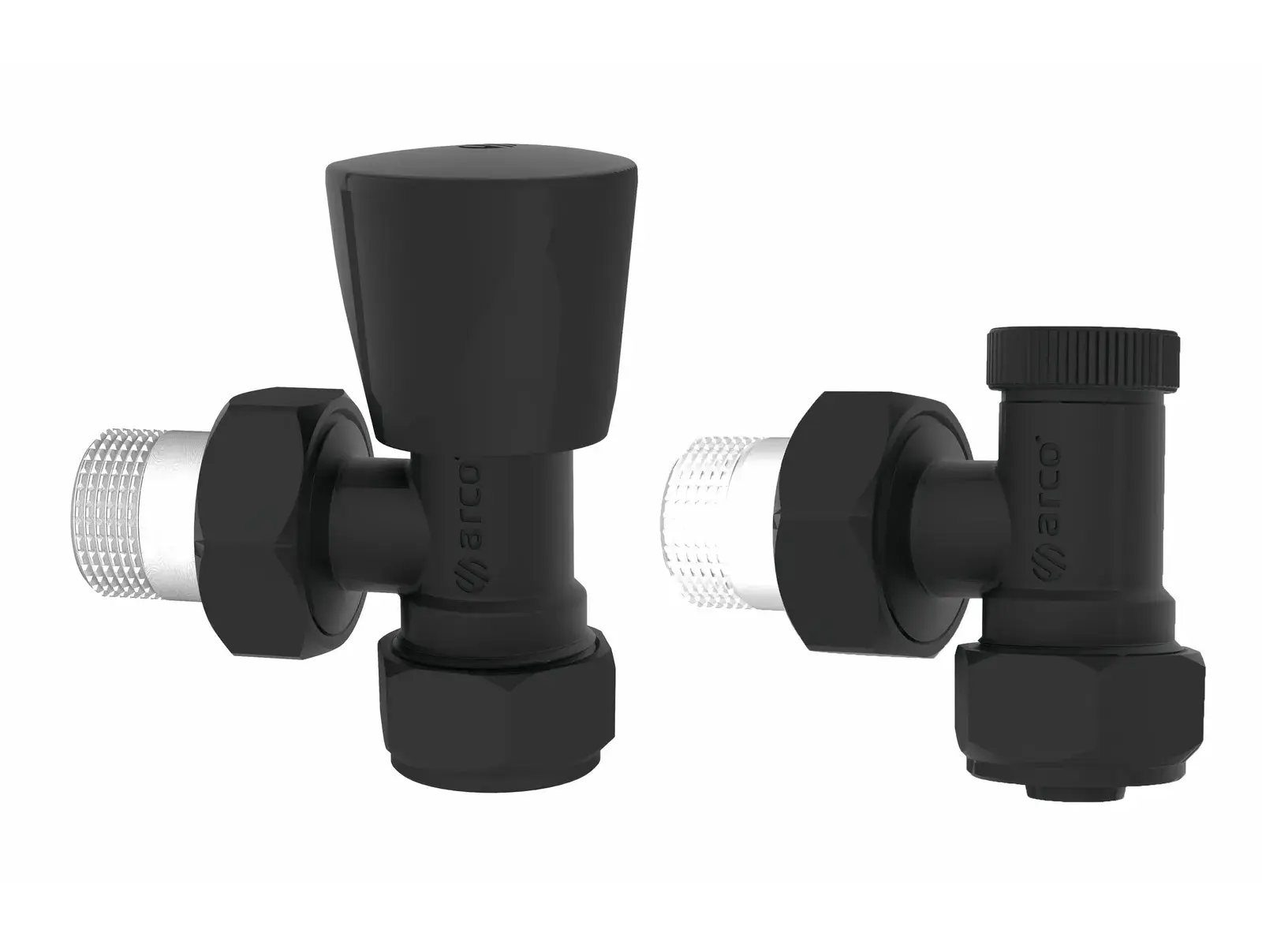

Black angle radiator valve kit Teide Plus for multilayer pipe 16x2 mm x 1/2" M KCM21N
The ARCO KCM21N from the Teide Plus range is a black angle radiator valve kit for multilayer pipe. Radiator valve kit of the TEIDE PLUS series, consisting of a manual radiator valve and a matching lockshield.
This version has a 16x2 mm x 1/2" M connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 110 °C. The body is made of brass.
This set contains the ARCO articles SE503557R, 507557R.
Application
For individual or collective two-pipe heating systems. Nominal pressure 10 bar, hot water up to 110 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | KCM21N |
| Brand | ARCO |
| Series | Teide Plus |
| Connection | 16x2 mm x 1/2" M (supplier notation: 16X2-1/2M) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 110 °C |
| Material body | Brass |
| Set contents (article codes) | SE503557R, 507557R |
| Packaging | Per piece (outer box 12 pcs) |
| EAN code | 8428519081143 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
