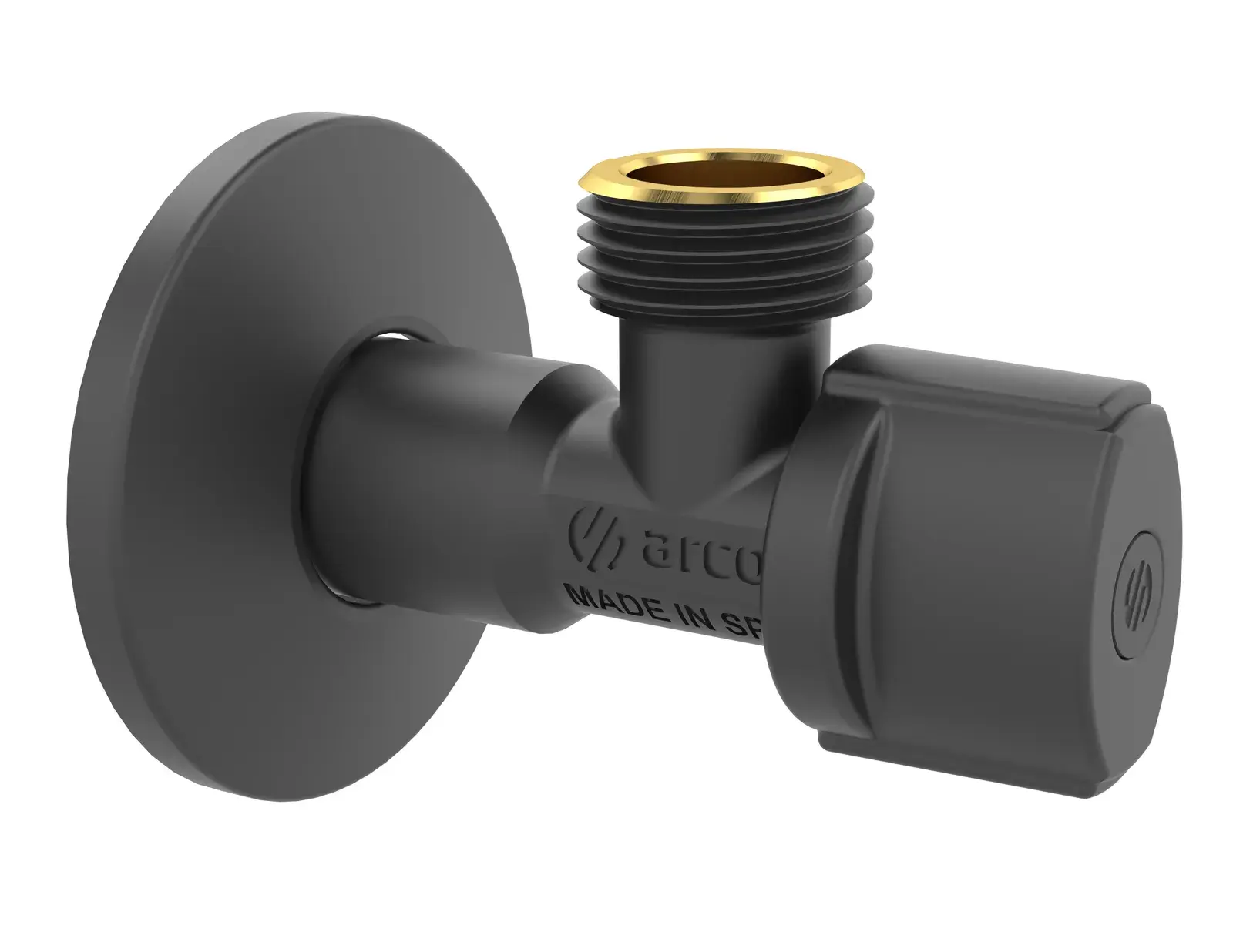

Black angle valve A-80 1/2" M x 1/2" M NOV43
The ARCO NOV43 from the A-80 range is a black angle valve with an ABS Nova handle. Quarter-turn angle ball valves for surface mounting with manual operation, where the connection is made by threaded ends. It is electrostatically coated with EPOXY paint to achieve black and white finishes. The VITAQ system increases the valve life span and flow comfort in hard water areas.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" M x 1/2" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, white or black Epoxy.
Features
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Nickel-free water way for greater health.
- Double o-ring.
- Available with white and black EPOXY paint finishes.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | NOV43 |
| Brand | ARCO |
| Series | A-80 |
| Connection | 1/2" M x 1/2" M (supplier notation: 1/2M-1/2M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, white or black Epoxy (depending on model) |
| Material seat | NBR |
| Material ball-stem | Anti-lime polymer, VITAQ |
| Material handle | ABS, white or black (depending on model) |
| Material o-ring | NBR |
| Dimension A | 80 mm |
| Dimension B | 48 mm |
| Dimension C | 26 mm |
| Packaging | Individual (outer box 84 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
| Certificate | Hygienic Certificate B-BK-60110.1354.2024 |
| EAN code | 8428519085578 |
