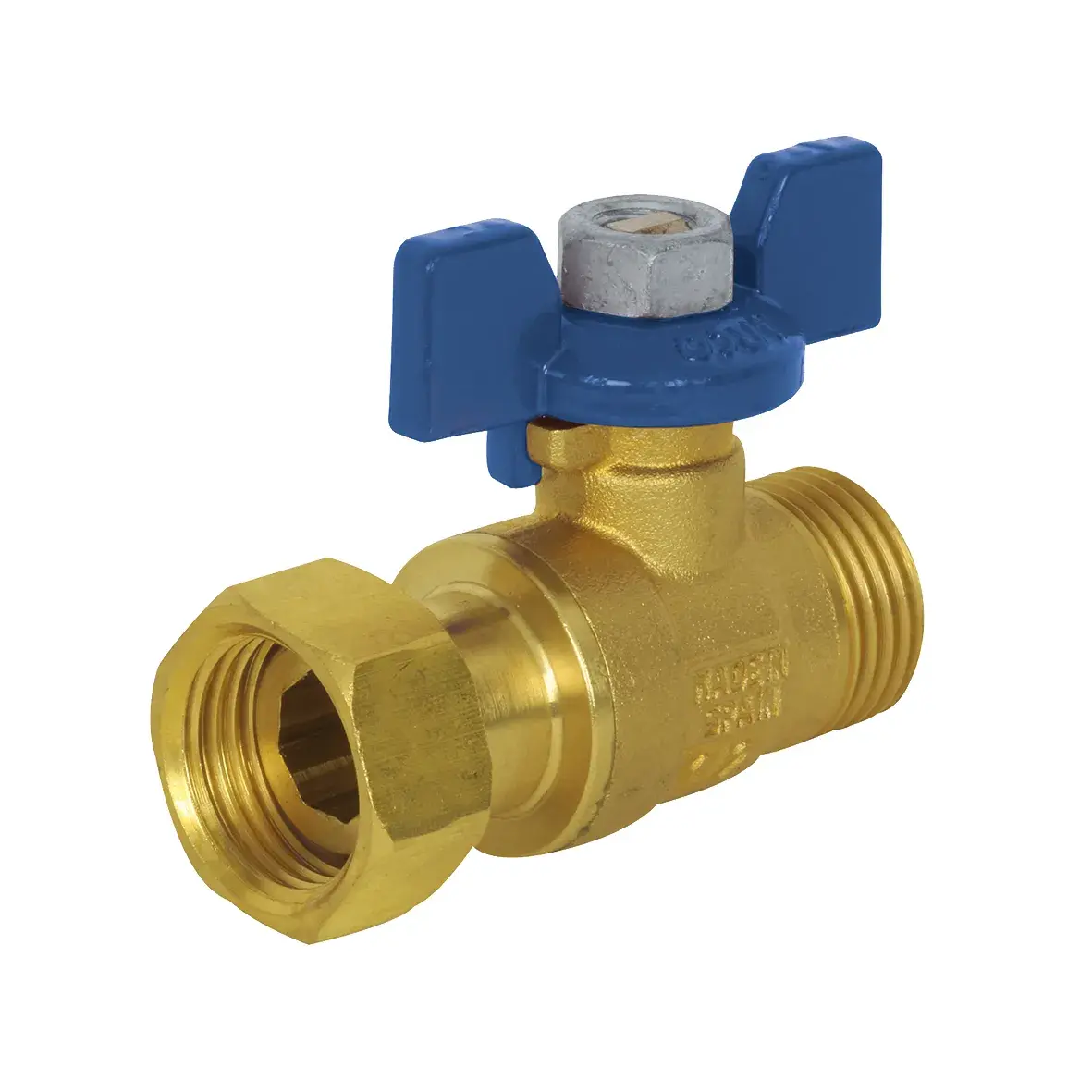

Brass-finish mini ball valve with blue butterfly handle 1/2" M x 1/2" loose nut 02290AZ
The ARCO 02290AZ from the Mini range is a brass-finish mini ball valve with a blue butterfly handle. Quarter-turn straight ball valves for surface mounting with manual operation, where the connection is made by means of a threaded connection, compression or loose nut according to model.
This version has a 1/2" M x 1/2" loose nut connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, brass color.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Larger passage section, lower pressure loss and lower noise level.
- 100% valves are tested for inner leakage.
- Double o-ring.
- Strong one-piece body construction for secure installations.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, washing machines, and other points of use.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 02290AZ |
| Brand | ARCO |
| Series | Mini |
| Connection | 1/2" M x 1/2" loose nut (supplier notation: 1/2M-1/2LN) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, brass color |
| Material handle | Zamak, red / Blue |
| Material nut | Steel, geomet® 500 |
| Material stem | Brass CW614N, brass color |
| Material o-rings | EPDM |
| Material ball | Brass CW614N, chrome plated |
| Material seats | NBR |
| Dimension A | 60 mm |
| Dimension B | 48 mm |
| Dimension C | 36 mm |
| Packaging | Supplier packaging: inner box 25 pcs, outer box 50 pcs |
| EAN code | 8428519069707 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Certificate NF Sanitary tapware 339-M1-25/1 |
