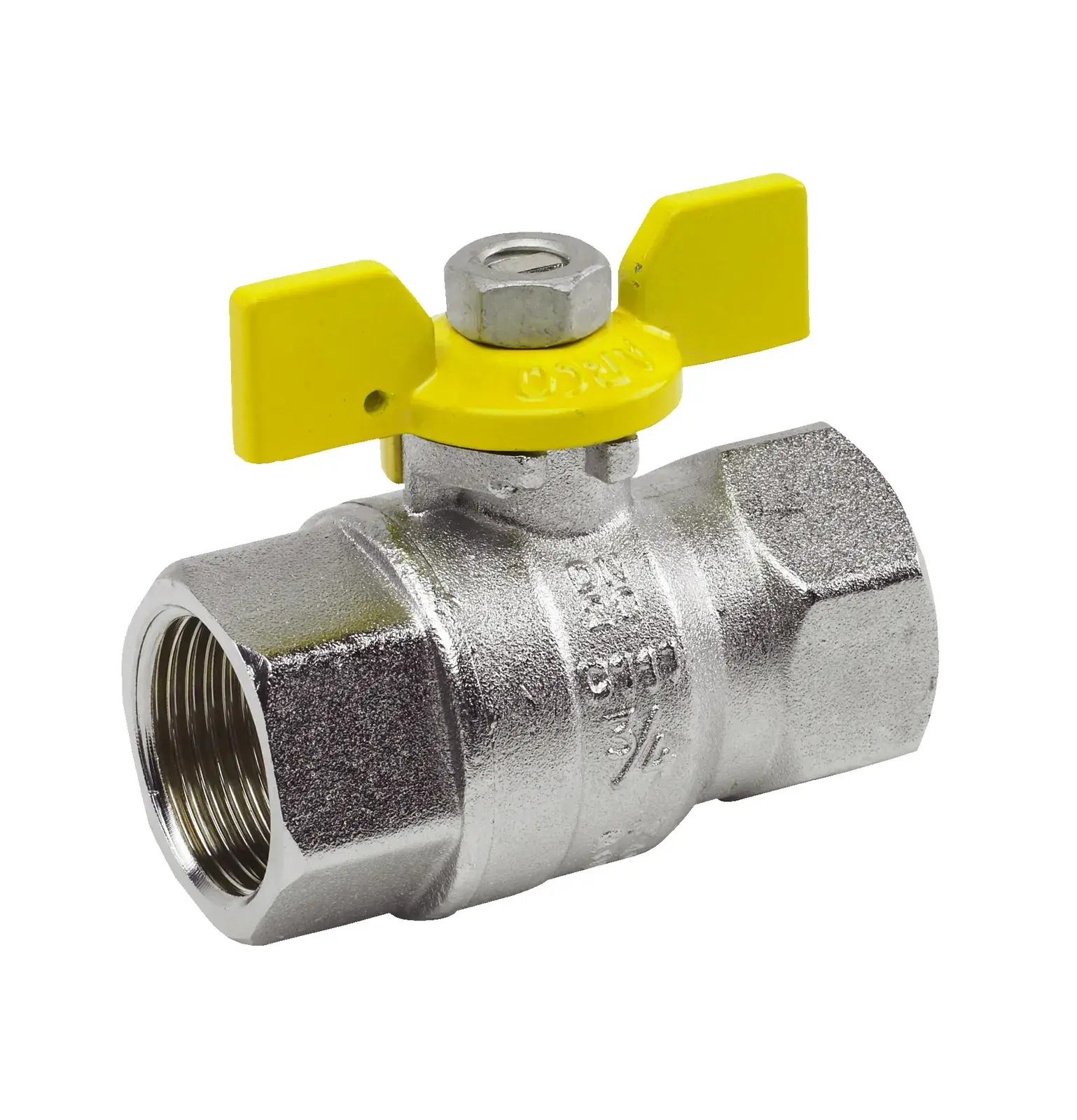

Chrome gas ball valve Miño 650 with yellow butterfly handle 1" F x 1" F PM104
The ARCO PM104 from the Miño 650 range is a chrome gas ball valve with yellow butterfly handle.
This version has a 1" F x 1" F connection, a maximum operating pressure of MOP 5 and a temperature range of -40 to 60 °C. The body is made of brass.
Features
- European brass.
- 100% leak tested at low and high pressure.
- Internally fitted stem that cannot be removed from the outside (tamper-proof).
- Locking system on the neck to close and seal the valve.
- Fully compatible with the ARCO SBA locking system.
- CE marked according to the harmonised standard EN 331:1998/A1:2010.
- High-temperature resistant according to EN 1775:2008, tested and certified by BE-ARGB-KVBG.
- Robust construction for safe installations.
Application
Quarter-turn ball valves with manual operation for gases of the first, second and third family (according to EN 437).
The valves comply with EN 331:1998/A1:2010, the harmonised standard for CE marking. Type tests were carried out by CATIM for sizes 1/4" to 2" (female x female).
They also pass the high-temperature resistance test of EN 1775:2008, Annex A, Procedure B, tested and certified by BE-ARGB-KVBG.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | PM104 |
| Brand | ARCO |
| Series | Miño 650 |
| Connection | 1" F x 1" F (supplier notation: 1F-1F) |
| Max. operating pressure | MOP 5 (5 bar) |
| Temperature | -40 to 60 °C |
| Material body | Brass |
| Dimension A | 80 mm |
| Dimension B | 80 mm |
| Dimension C | 52 mm |
| Packaging | Per piece (inner box 10 pcs, outer box 20 pcs) |
| EAN code | 8428519030554 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Declaration of performance | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | Certificate of conformity C-22-3811-A with the Belgian requirements for gas ball valves |
