Combi adapter for washing machine valve 3/8" F x 1/2" M (10 pieces) COMBI88

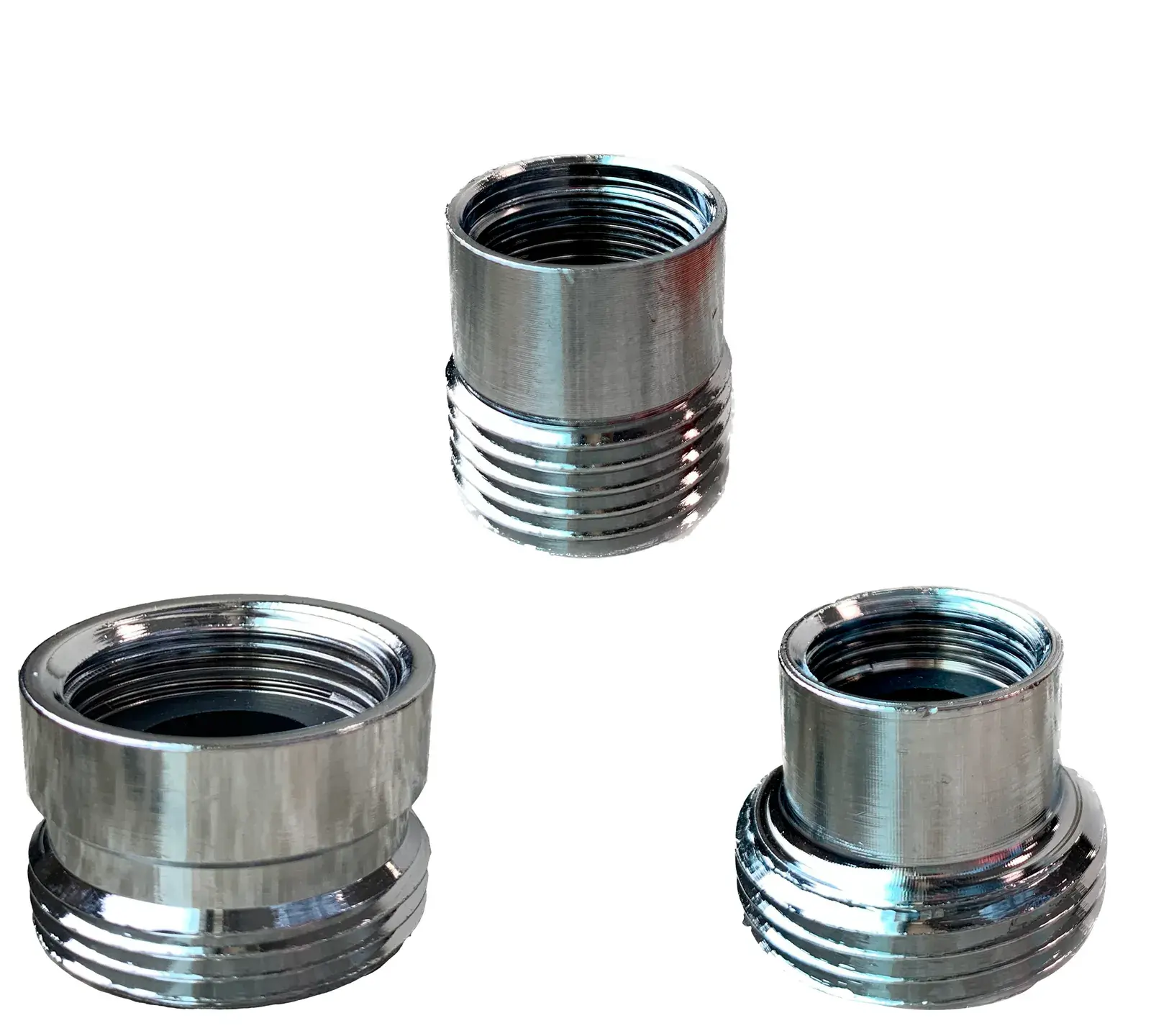

The ARCO COMBI88 is a combi adapter for the ARCO COMBI and TWIN valve ranges. It transforms the valve outlet to a different size: from 3/8" female to 1/2" male thread. A flat joint (EPDM) is included.
The body is made of European brass CW617N, chrome plated, in DW (4MS) quality for use in drinking water installations. The adapter is suitable for drinking water and domestic hot water, with a working pressure of PN 16 bar and a temperature range of 0 to 95 °C.
This item is supplied in a bag of 10 pieces.
Features
- Connection: 3/8" F x 1/2" M
- For ARCO COMBI and TWIN valves
- Includes EPDM flat joint
- Brass CW617N, chrome plated
- DW (4MS) quality for drinking water installations
- Max. working pressure: PN 16 bar
- Temperature: 0 to 95 °C (excluding freezing)
- Packaging: bag of 10 pcs (outer box 400 pcs)
Installation
Shut off the water supply before installation and make sure the connection is free of dirt. Apply suitable sealing material to the thread and tighten with a suitable wrench on the flat surfaces of the body, to avoid deforming it. Restore the water supply and check all connections for tightness.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | COMBI88 |
| Connection | 3/8" F x 1/2" M |
| Dimension A | 21 mm |
| Height H | 22 mm |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C (excluding freezing) |
| Material body | Brass CW617N |
| Finish | Chrome plated |
| Seal | EPDM flat joint |
| Packaging | Bag of 10 pcs (outer box 400 pcs) |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Hygienic certificate | Download PDF |
