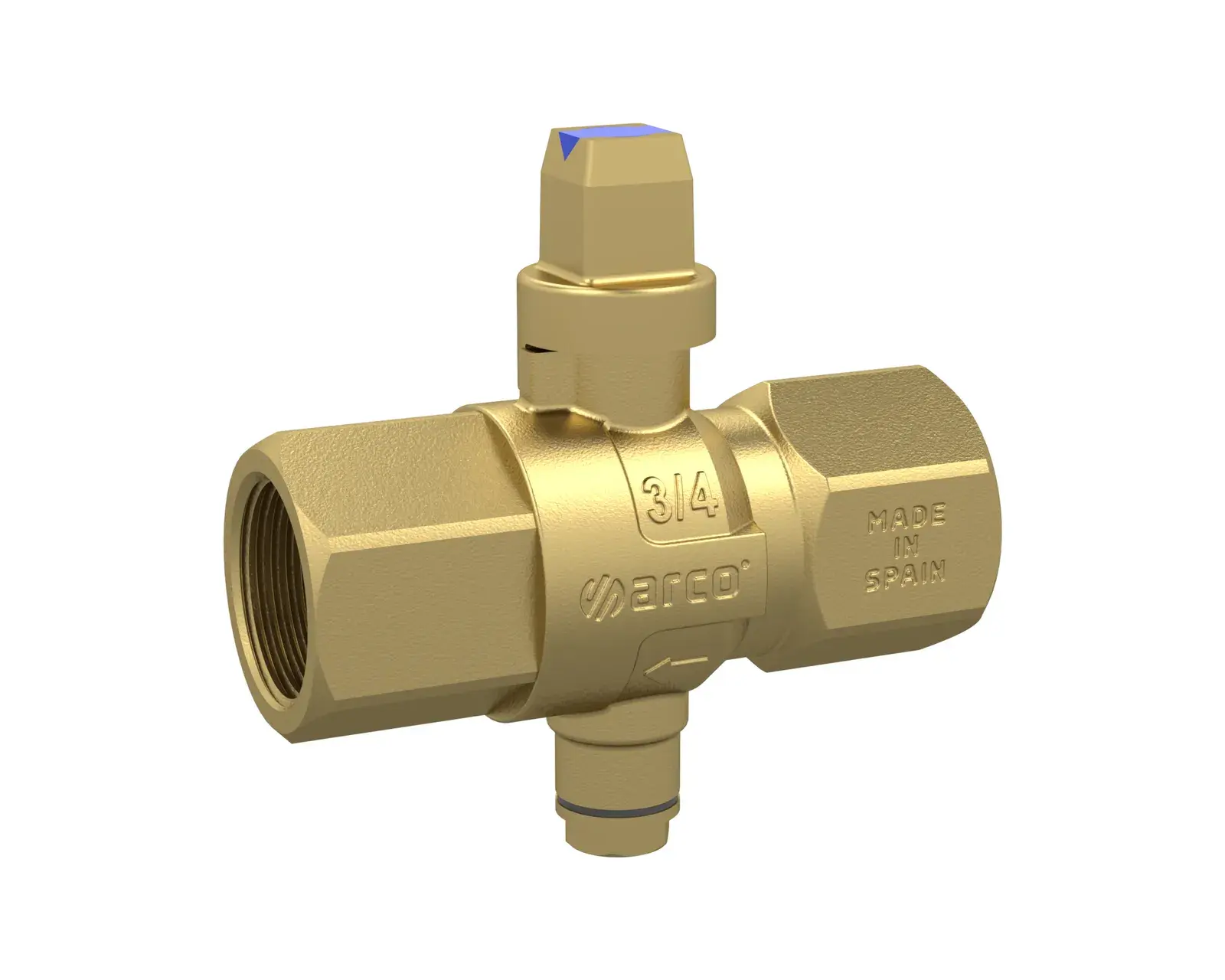

Discharge ball valve TAJO 2000 3/4" F x 3/4" F 33006AC
The ARCO 33006AC from the TAJO 2000 range is a discharge ball valve with a square 14 handle. Quarter-turn ball valves with manual operation, equipped with a drain system that empties the downstream network when the valve is closed. The connection is made by a threaded joint, which facilitates assembly and maintenance. It incorporates the VITAQ system, designed to extend the valve's service life and improve flow comfort, especially in installations located in areas with hard water.
This version has a 3/4" F x 3/4" F connection, a maximum working pressure of PN 50 bar and a temperature range of -20 to 140 °C. The body is made of Brass CW617N, brass color.
Features
- VITAQ system, more life, less lime at higher temperatures.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Extra-long design to fit most existing installations.
- Strong construction and safe installations.
- Maximum threaded length for demanding installations.
- Square handle 14 x 14 mm.
- Blue index on the top of the handle shows whether the valve is open or closed and prevents dirt from entering the handle.
- Handle is fitted to the valve neck, designed to prevent dirt from entering and hindering operation.
- 3/8" drain plug with built-in filter to prevent particles from entering the drain area.
- Slow drainage system that avoids waterlogging by allowing the water to be gradually absorbed into the soil.
Application
Specially designed for drinking water installations where controlled drainage of the internal network of a house is required, to prevent damage or burst pipes caused by freezing.
In the open position, the valve operates like a conventional ball valve with normal water flow. In the closed position, it stops the supply and simultaneously drains the internal network.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 33006AC |
| Brand | ARCO |
| Series | TAJO 2000 |
| Connection | 3/4" F x 3/4" F (supplier notation: 3/4F-3/4F) |
| Max. pressure | PN 50 bar |
| Temperature | -20 to 140 °C |
| Material lever | Brass CW617N, brass color |
| Material stem | Brass CW614N, zinc plated |
| Material ball | Brass CW617N, VITAQ |
| Material flat joint | NBR |
| Material seat | PTFE |
| Material body | Brass CW617N, brass color |
| Dimension A | 86 mm |
| Dimension B | 23 mm |
| Dimension C | 49 mm |
| Packaging | Supplier packaging: inner box 15 pcs, outer box 30 pcs |
| Technical sheet | Download PDF |
