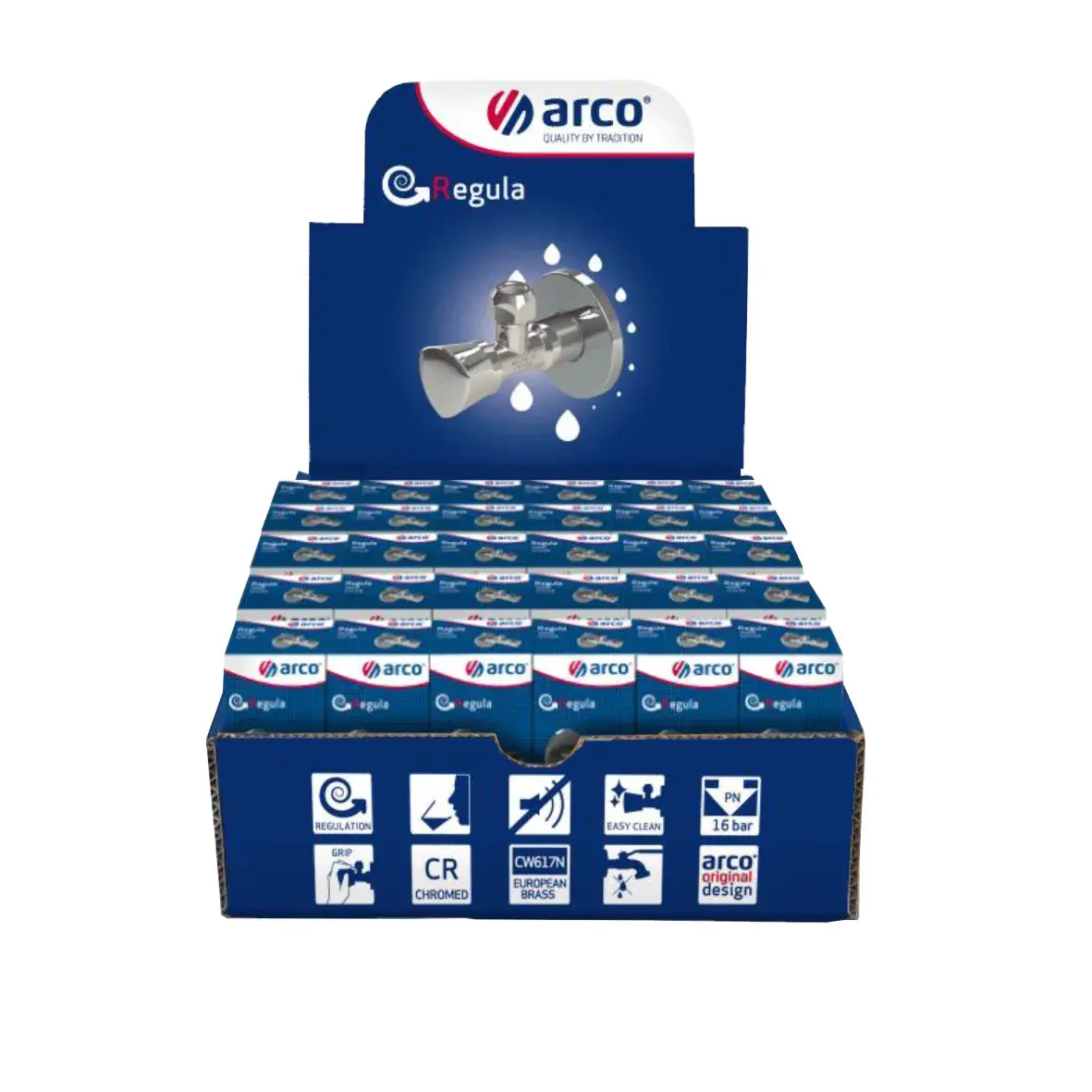

Display box: multiturn angle valve Regula 1/2" M x 3/8" x 10 mm VTQ006
The ARCO VTQ006 from the Regula range is a display box: multiturn angle valve. Manually operated and regulating valves for visible installations. Connection to the installation is made by means of a threaded union. The spindle shutter allows fine regulation of the flow at the valve outlet.
This version has a 1/2" M x 3/8" x 10 mm connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
This set contains the ARCO articles ZP702.
Features
- European Brass, DW (4MS) quality for use in drinking water installations.
- Large triangular handle for easy maneuvering.
- Secure, riveted body prevents spindle extraction.
- The knurled inlet thread makes it easy to apply the sealant.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for safe installations.
- Double o-ring ensures external tightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to sinks, washbasins, cisterns, and other points of use.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | VTQ006 |
| Brand | ARCO |
| Series | Regula |
| Connection | 1/2" M x 3/8" x 10 mm (supplier notation: 1/2M-3/8 X 10) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material rosette | Stainless steel |
| Material body | Brass CW617N, chrome plated |
| Material sleeve | PA (depending on model) |
| Material nut | Brass CW614N, chrome plated (depending on model) |
| Material stem | Brass CW614N, brass color |
| Material o-rings | EPDM |
| Material handle | ABS + PC, chrome plated |
| Set contents (article codes) | ZP702 |
| Packaging | Supplier packaging: outer box 2 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
