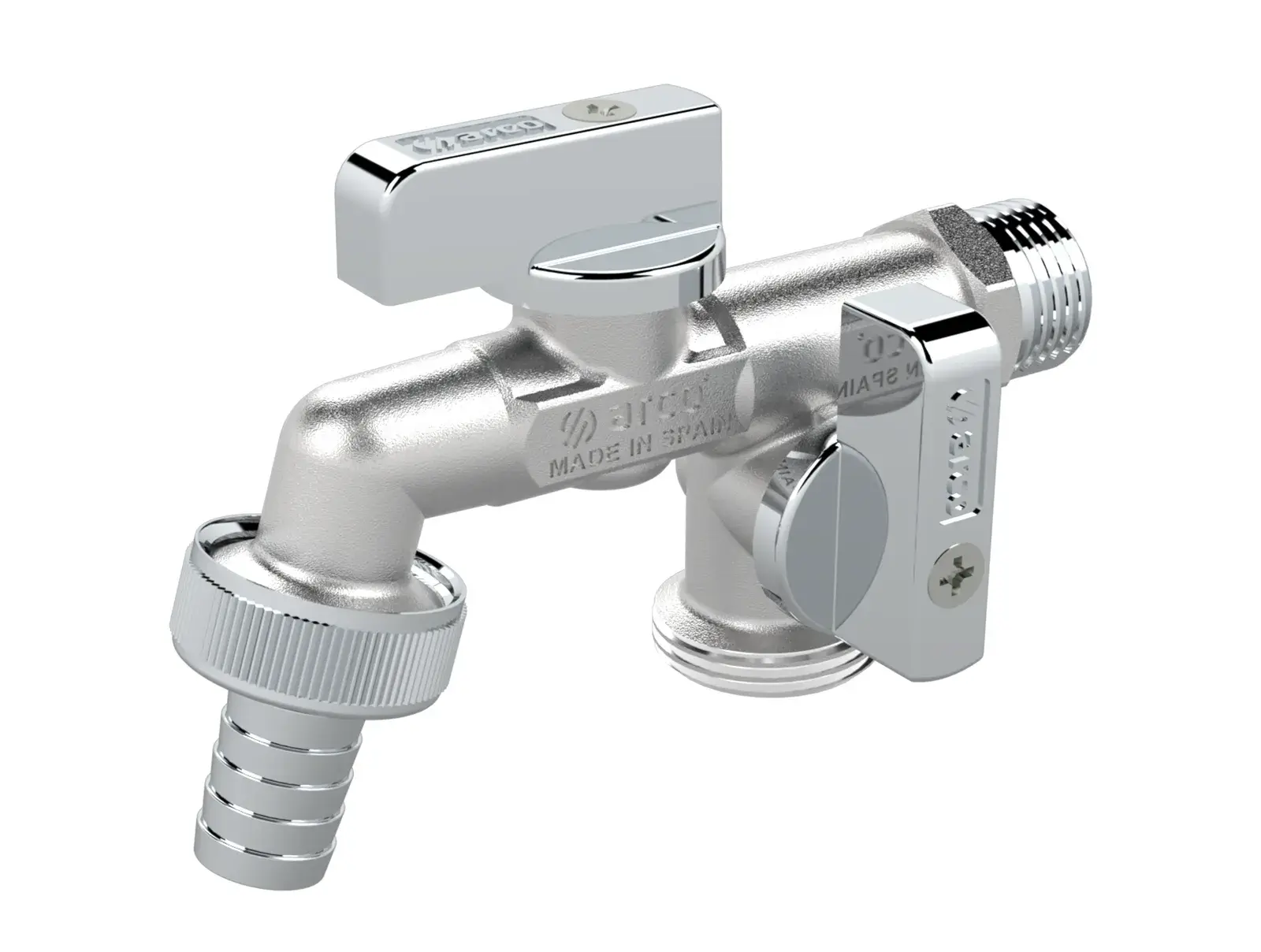

Double garden tap Nano Double with chrome handle 1/2" M x 2x 3/4" M, 15 mm polypropylene hose nozzle 00474
The ARCO 00474 from the Nano Double range is a double garden tap with chrome handle and polypropylene hose nozzle. The DOUBLE NANO consists of two quarter-turn ball taps in a single body with manual operation, connected by threaded ends. The water supply to the equipment on each of the two outlets can be shut off independently, which offers the following advantages: The VITAQ system increases the life span of the tap and keeps the flow comfortable in hard water areas.
The one-piece body makes this double tap very strong.
This version has a 1/2" M x 2x 3/4" M, 15 mm polypropylene hose nozzle connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 90 °C. The body is made of brass.
Features
- One water inlet and two independent outlets.
- VITAQ system: longer life and less limescale, also at higher temperatures.
- Full flow is maintained for lasting comfort at the tapping point.
- European brass in DW (4MS) quality for use in drinking water installations.
- 100% of the taps are tested for internal leakage.
- Strong one-piece body for a reliable installation.
- Double O-ring for external tightness.
- No extra work when there is only one water point but two services are needed.
- Fewer threaded fittings.
- Compact, so it needs less installation space.
- More reliable and safer installations thanks to fewer connections.
Application
Specially designed for outdoor installations such as gardens, terraces and yards, or for indoor installations where a tap with two separate outlets is required.
A hose connection nozzle is included.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 00474 |
| Brand | ARCO |
| Series | Nano Double |
| Connection | 1/2" M x 2x 3/4" M, 15 mm hose nozzle (supplier notation: 1/2M-3/4M X 3/4M-15) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 90 °C |
| Material o-rings | EPDM |
| Material handle | Chrome plated |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material nozzle | PP (polypropylene) |
| Material o-ring | NBR |
| Dimension A | 110 mm |
| Dimension B | 38 mm |
| Dimension C | 61 mm |
| Dimension D | 32 mm |
| Packaging | Per piece (outer box 30 pcs) |
| EAN code | 8428519060513 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 236 |
