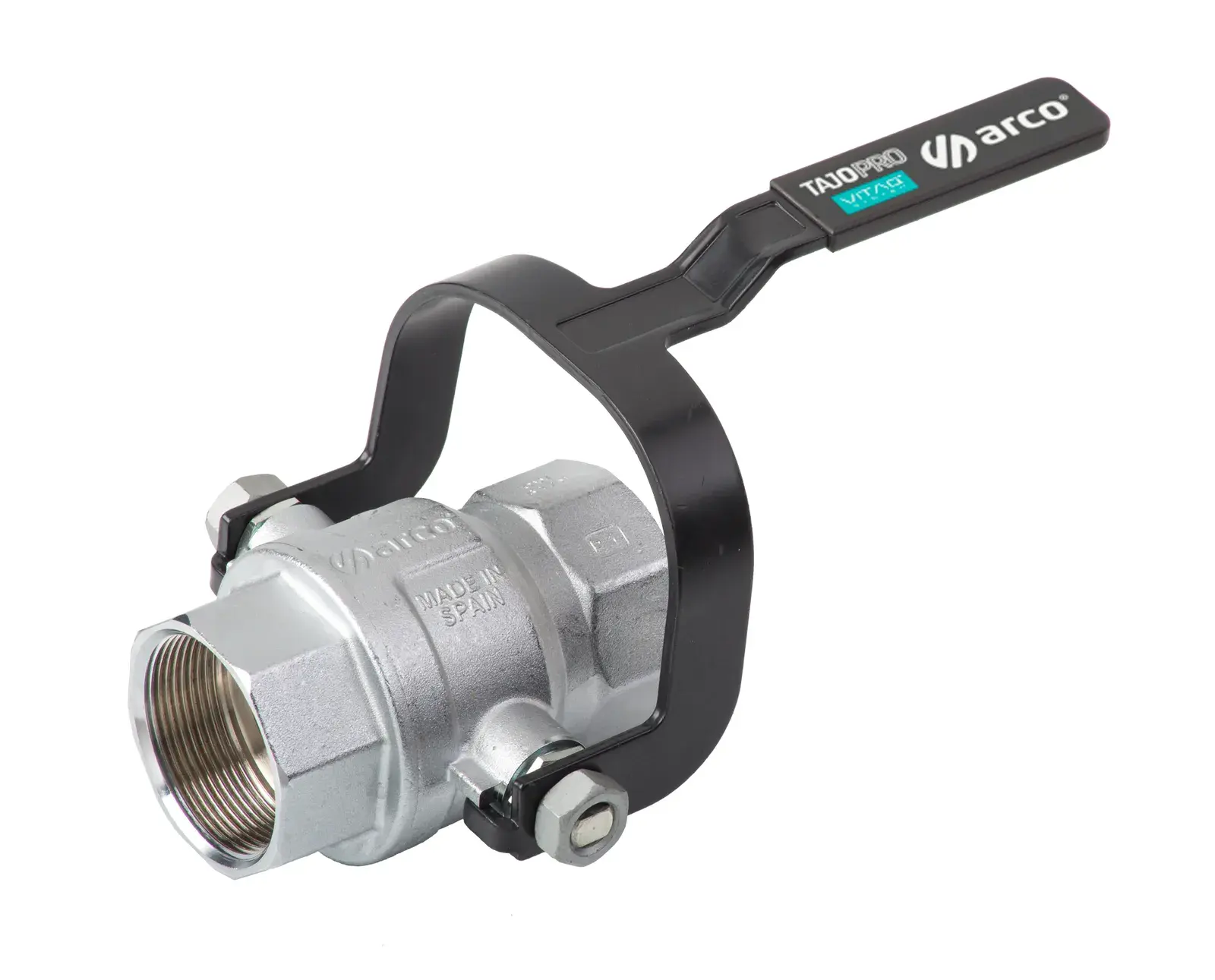

Double stem ball valve Tajo PRO 3" F x 3" F 01038AC
The ARCO 01038AC from the Tajo PRO range is a double stem ball valve with a lever handle with black cover. Ball valves with manual operation including the VITAQ system to reduce the effects of limescale, with a patented dynamic dual stem actuation system. The VITAQ system and the dynamic dual stem actuation increase the operating reliability of this ball valve, without the disadvantages of valve types that do not allow free passage of the fluid and therefore cause greater pressure losses.
Double stem. Zero problems.
This version has a 3" F x 3" F connection, a maximum working pressure of PN 30 bar and a temperature range of -20 to 140 °C. The body is made of Brass CW617N, chrome plated.
Features
- VITAQ system: more life, less limescale at higher temperatures.
- Dynamic dual stem: more resistant, double reliability.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Without reducing flow.
- Strong construction and safe installations.
Application
Specially designed for heating, DHW or mixed installations, as well as distribution networks and drinking water connections.
Recommended for installations from DN50, where a valve is required that can shut off the supply without any limitation due to limescale or infrequent operation, for maintenance or in emergencies caused by faults in the distribution system.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 01038AC |
| Brand | ARCO |
| Series | Tajo PRO |
| Connection | 3" F x 3" F (supplier notation: 3F-3F) |
| Max. pressure | PN 30 bar |
| Temperature | -20 to 140 °C |
| Material body | Brass CW617N, chrome plated |
| Dimension A | 164 mm |
| Dimension B | 257 mm |
| Dimension C | 102 mm |
| Packaging | Supplier packaging: outer box 1 pcs |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
| Certificate | Hygienic Certificate B-BK-60110.1176.2023 |
| EAN code | 8428519073971 |
