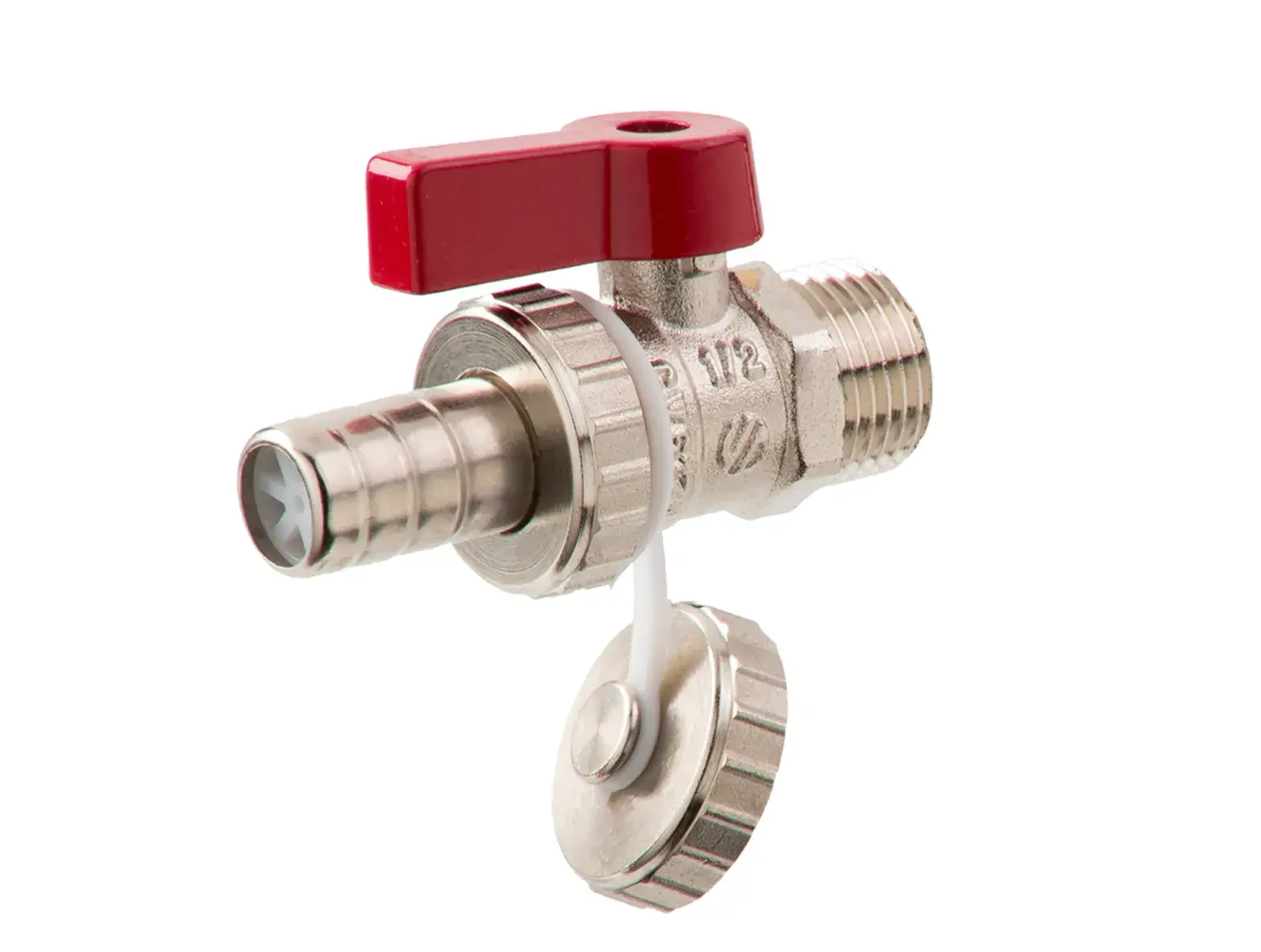

Drain valve Teide 1/2" M x 3/4" M, 15 mm hose nozzle 504220
The ARCO 504220 from the Teide range is a drain valve. Manual metal drain valve (ball valve) with hose nozzle. Two PTFE seats guarantee internal tightness in both directions.
Ideal for draining manifolds.
This version has a 1/2" M x 3/4" M, 15 mm hose nozzle connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 120 °C. The body is made of brass.
Application
For heating systems and other applications where water has to be drained or shut off. Nominal pressure 10 bar, 0 to 120 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 504220 |
| Brand | ARCO |
| Series | Teide |
| Connection | 1/2" M x 3/4" M, 15 mm hose nozzle (supplier notation: 1/2M-3/4M X 15) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 120 °C |
| Material body | Brass |
| Packaging | Per piece (inner box 35 pcs, outer box 70 pcs) |
| EAN code | 8428519062333 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
