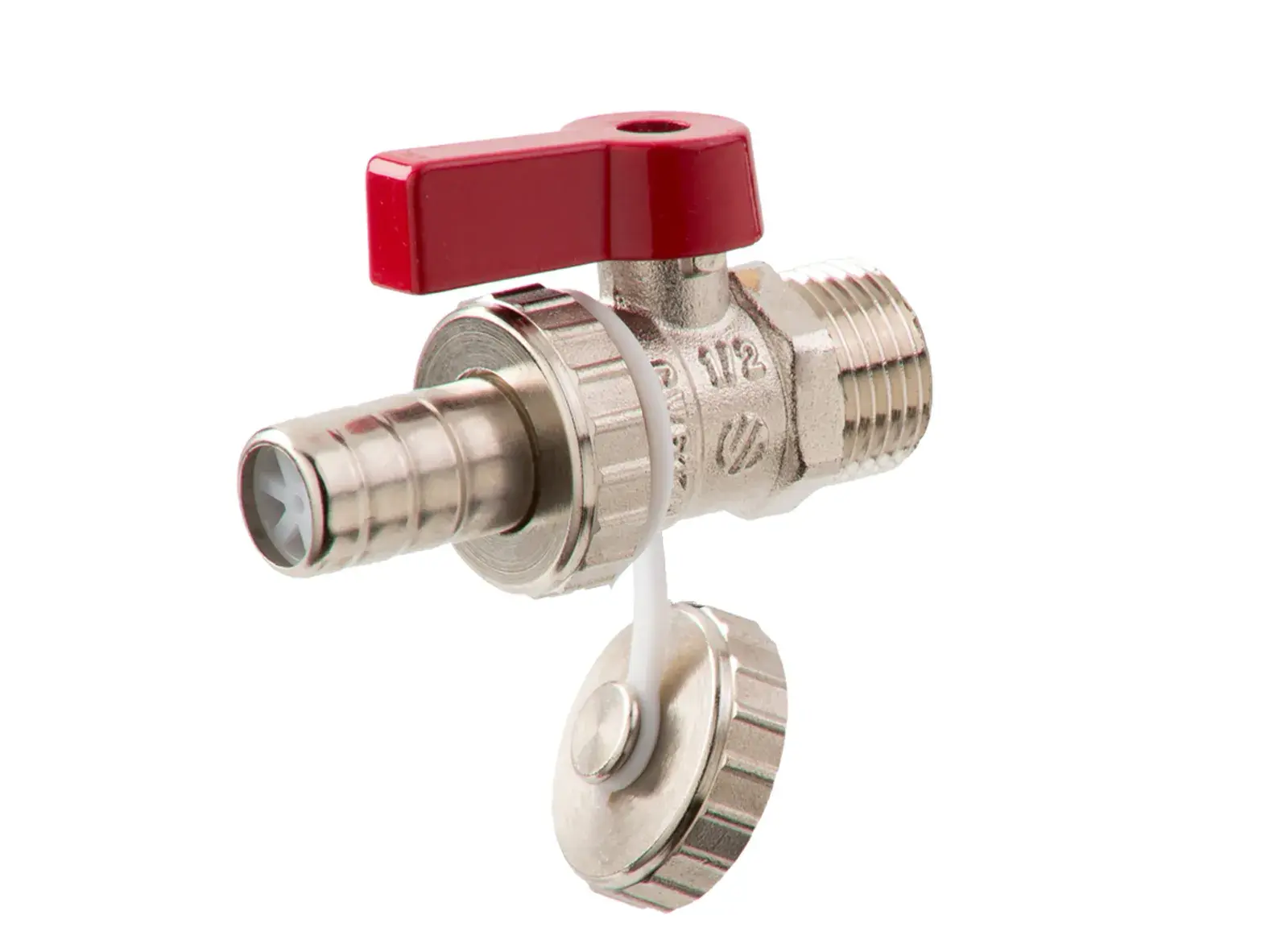

Drain valve Teide 3/4" M x 1" M, 20 mm hose nozzle 504230
The ARCO 504230 from the Teide range is a drain valve. Manual metal drain valve (ball valve) with hose nozzle. Two PTFE seats guarantee internal tightness in both directions.
Ideal for draining manifolds.
This version has a 3/4" M x 1" M, 20 mm hose nozzle connection, a maximum working pressure of PN 10 bar and a temperature range of 0 to 120 °C. The body is made of brass.
Application
For heating systems and other applications where water has to be drained or shut off. Nominal pressure 10 bar, 0 to 120 °C.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 504230 |
| Brand | ARCO |
| Series | Teide |
| Connection | 3/4" M x 1" M, 20 mm hose nozzle (supplier notation: 3/4M-1M X 20) |
| Max. pressure | PN 10 bar |
| Temperature | 0 to 120 °C |
| Material body | Brass |
| Packaging | Per piece (inner box 20 pcs, outer box 40 pcs) |
| EAN code | 8428519068083 |
| Technical sheet | Download PDF |
| Declaration of performance | Download PDF |
| Certificate | National Technical Assessment ITB-KOT-2021/2003 w1 |
