Dual angle valve A-80 Dual 3/8" M x 3/8" loose nut x 3/8" M DUAL90

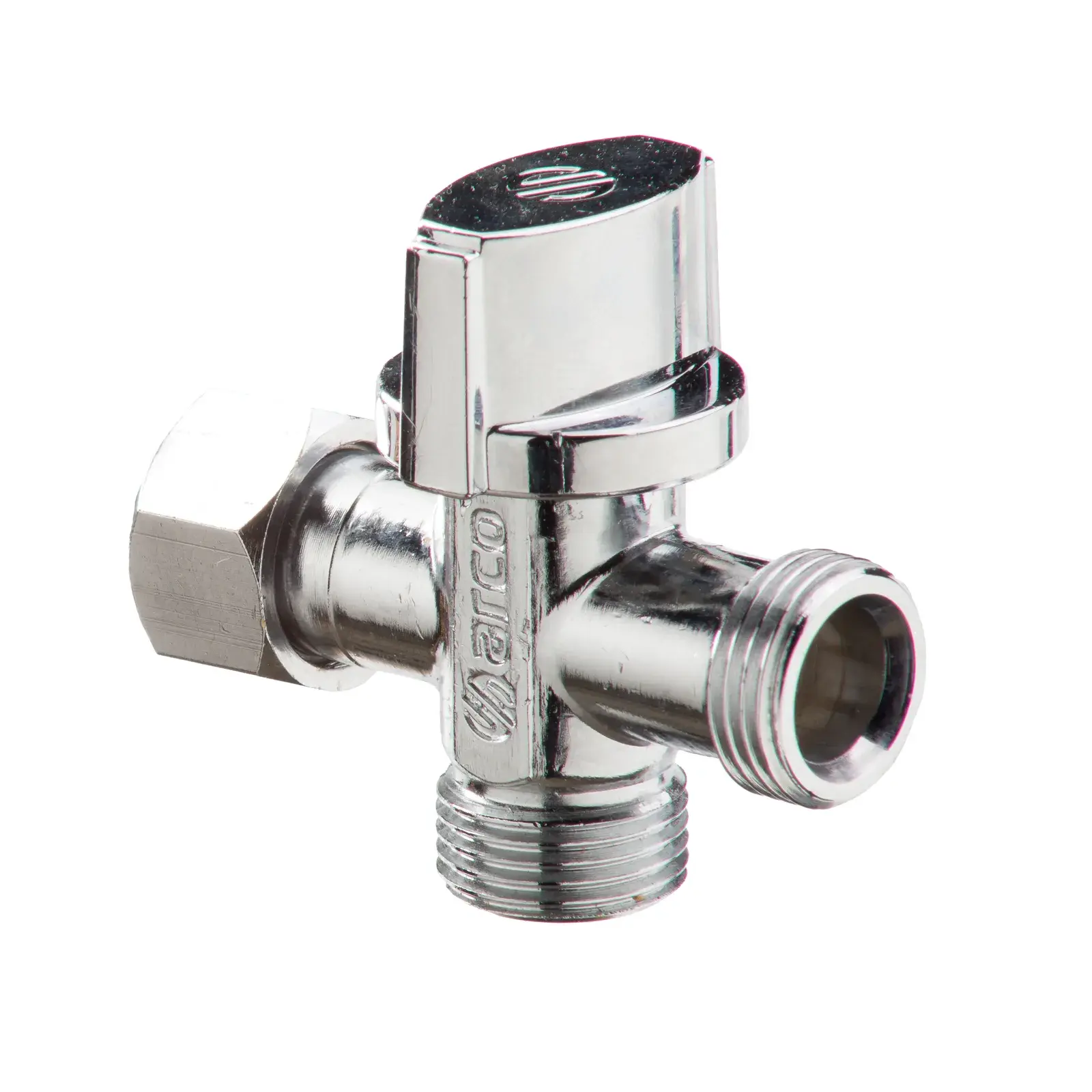

The ARCO DUAL90 from the A-80 Dual range is a dual angle valve with a chrome-plated ABS Nova handle. DUAL is a quarter-turn angle ball valve for surface mounting with two simultaneous outlets in a single body. This valve allows the water supply to the equipment connected at its two outlets to be shut off, providing the following advantages: • Avoids unnecessary work when there is only one water point and two services are required. • Fewer threaded fittings. • More than 80% reduction in installation time. • Compact, less installation space needed. • Increased reliability and safety of the installation thanks to fewer connections.
This version has a 3/8" M x 3/8" loose nut x 3/8" M connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- A single water inlet and two simultaneous outlets.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing to individually cut off the water supply to each of the 2 services connected to each outlet.
Loyalty Points
Earn from this purchase
Max discount with points
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | DUAL90 |
| Brand | ARCO |
| Series | A-80 Dual |
| Connection | 3/8" M x 3/8" loose nut x 3/8" M (supplier notation: 3/8M-3/8LN X 3/8M) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material nut | Brass CW614N, chrome plated |
| Material o-rings | NBR |
| Material handle | ABS, chrome plated |
| Material stem-ball | Brass CW614N, brass color |
| Material seat | NBR |
| Dimension A | 48 mm |
| Dimension B | 19 mm |
| Dimension C | 28 mm |
| Dimension D | 24 mm |
| Packaging | Supplier packaging: inner box 50 pcs, outer box 100 pcs |
| EAN code | 8428519070703 |
| Technical sheet | Download PDF |
| Certificate | Certificate of sanitary conformity (ACS) 25 ACC NY 105 |
| Certificate | Water Supplies Certificate WSD 3321/2022 T/J (38/2022) |
