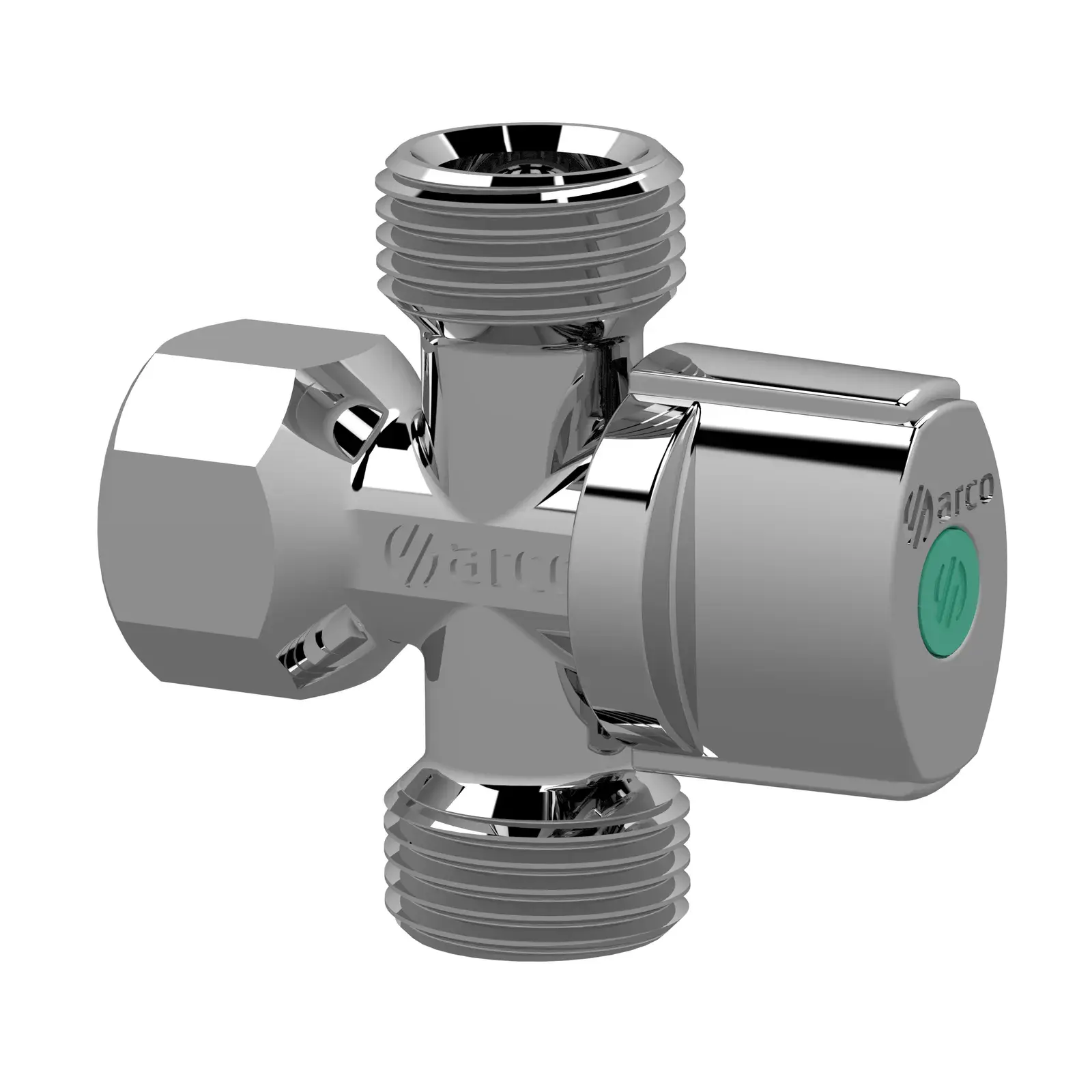

Dual washing machine valve 1/2" F NPT x 1/2" M NPSM x 1/2" M NPSM 206157
The ARCO 206157 from the Dual range is a dual washing machine valve with a chrome-plated ABS Nova handle. DUAL NPT is a quarter-turn angle ball valve for surface mounting with two simultaneous outlets in a single body. This valve allows the water supply to the equipment connected at its two outlets to be shut off, providing the following advantages: • Avoids unnecessary work when there is only one water point and two services are required. • Fewer threaded fittings. • More than 80% reduction in installation time. • Compact, less installation space needed. • Increased reliability and safety of the installation thanks to fewer connections.
VITAQ anti-limescale system, more life with a very careful design and finish.
This version has a 1/2" F NPT x 1/2" M NPSM x 1/2" M NPSM connection, a maximum working pressure of PN 16 bar and a temperature range of 0 to 95 °C. The body is made of Brass CW617N, chrome plated.
Features
- A single water inlet and two simultaneous outlets.
- VITAQ system, more life, less lime at higher temperatures.
- Without reducing flow, it prolongs comfort at service points.
- European Brass, DW (4MS) quality for use in drinking water installations.
- 100% valves are tested for inner leakage.
- Strong one-piece body construction for secure installations.
- Double o-ring, ensures external leaktightness.
Application
Designed for indoor plumbing installations, allowing individual shut-off of the water supply to washing machines and dishwashers.
The VITAQ system increases the valve life span and flow comfort in hard water areas.
This product requires a custom quote based on your specific requirements.
Hotline Order:
Mon - Fri: 08:00 / 16:00
+31 854885920
| Product code | 206157 |
| Brand | ARCO |
| Series | Dual |
| Connection | 1/2" F NPT x 1/2" M NPSM x 1/2" M NPSM (supplier notation: 1/2FIP-1/2M [NPSM] X 1/2M [NPSM]) |
| Max. pressure | PN 16 bar |
| Temperature | 0 to 95 °C |
| Material body | Brass CW617N, chrome plated |
| Material seat | NBR |
| Material handle | ABS, chrome plated |
| Material o-rings | NBR |
| Material stem-ball | Anti-lime polymer, VITAQ |
| Dimension A | 59 mm |
| Dimension B | 28 mm |
| Dimension C | 27 mm |
| Dimension D | 27 mm |
| Packaging | Individual (outer box 100 pcs) |
| Technical sheet | Download PDF |
